cMT3218XP-CODESYS
Our UL listed cMT3218XP with activated CODESYS has a rugged, NEMA-4 compliant aluminum encOur UL listed cMT3218XP with activated CODESYS has a rugged, NEMA-4 compliant aluminum enclosure , capacitive touchscreen with a full HD display , offering both durability and user-friendly design, supporting intuitive touch gestures – even with gloves .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1920 x 1080 Resolution Capacitive Wide-Screen Touchscreen
- RISC Quad-Core CPU
- Supports CANbus . 2 Ethernet, 2 USB, 2 Serial Ports
- Panel or VESA mount
- IIoT , Remote Access , MQTT , OPCUA Client/Server, SQL Database
- Capable of Running CODESYS , Web Browser , Email, and more
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 2 GB
- Memory (Flash)
- 4 GB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)

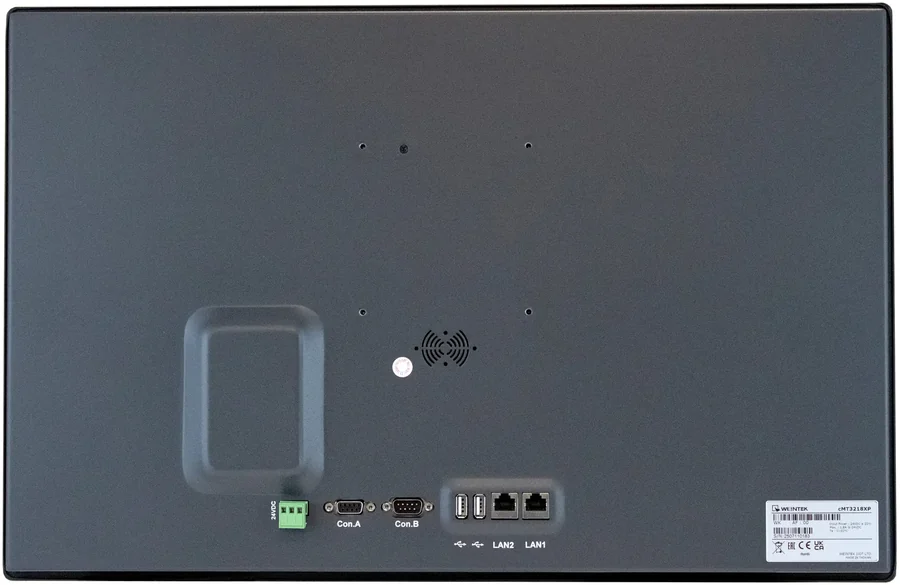

Puertos de E/S
- Ethernet/LAN
- LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1
- CANbus
- Yes
- Audio Output
- Built-in Mono Speaker
- USB Host Ports
- USB 2.0 x 2
- COM Port
- CANbus / 1 x DE9S COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wires / 1 x DE9P COM1: RS-232 4 wire, COM3: RS-232 2 wire
- Serial Ports
- 2
Pantalla
- Display Size
- 21.5” FHD TFT LCD
- Resolution
- 1920 x 1080
- Luminance (cd/m^2)
- 500
- Contrast Ratio
- 1000:1
- Backlight Type
- LED
- Backlight Lifetime (hrs)
- 30,000+
- Colors
- 16.7 M
- Display Type
- 21.5” FHD TFT LCD
- Viewing Angle (H°/V°)
- 178/178
- Size (W x H)
- 18.75 x 10.56 inches [476 x 268.2 mm]
Pantalla táctil
- Type
- Tempered Glass, Capacitive Touch
- Touch Panel Hardness Scale
- ≥ 6H
Eléctrico
- Input Power
- 43.2 W Max
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MΩ – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 1.8 A @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
- Enclosure Material
- Aluminum, charcoal grey
- PCB Coating
- Yes
- Dimensions WxHxD
- 21.5 x 13.94 x 1.87 inches [546 x 354 x 47.5 mm]
- Panel Cutout (inches) [mm]
- 20.94 x 13.39" [532 x 340 mm]
- Weight
- Approx. 12.13 lbs. [5.5 kg]
- Mounting
- Panel mount, VESA 100 x 100 mm
Ambiental
- Operating Temperature
- 32° ~ 122°F (0° ~ 50°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- CE UKCA
- Yes
- UL Type Rating
- UL Type 4X (indoor use only)
- NEMA Rating
- NEMA4
- IP Rating
- IP66 Compliant Front Panel
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT3218XP-CODESYS
- Línea
- HMI + Remote I/O + CODESYS · Hardware Platform · CODESYS HMIs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
