cMT3162XiV

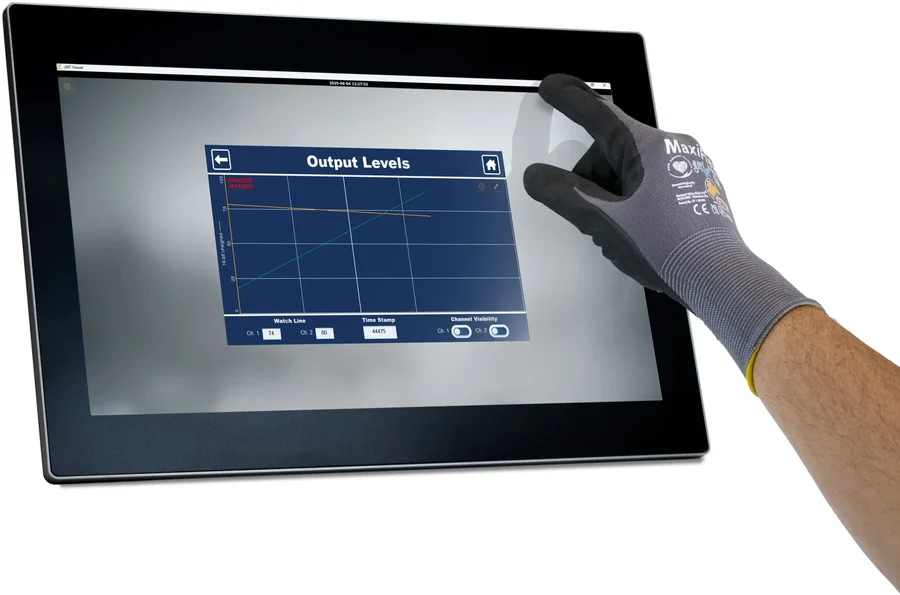

Our 15.6″ capacitive touch cMT3162XiV display only unit has a fanless cooling system, NEMAOur 15.6″ capacitive touch cMT3162XiV display only unit has a fanless cooling system, NEMA4/IP66 rating, and a PCB coating, making this an ideal secondary display for harsh environments.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Secondary Display for cMT devices
- Built-in cMT Viewer
- Capacitive Touchscreen Technology

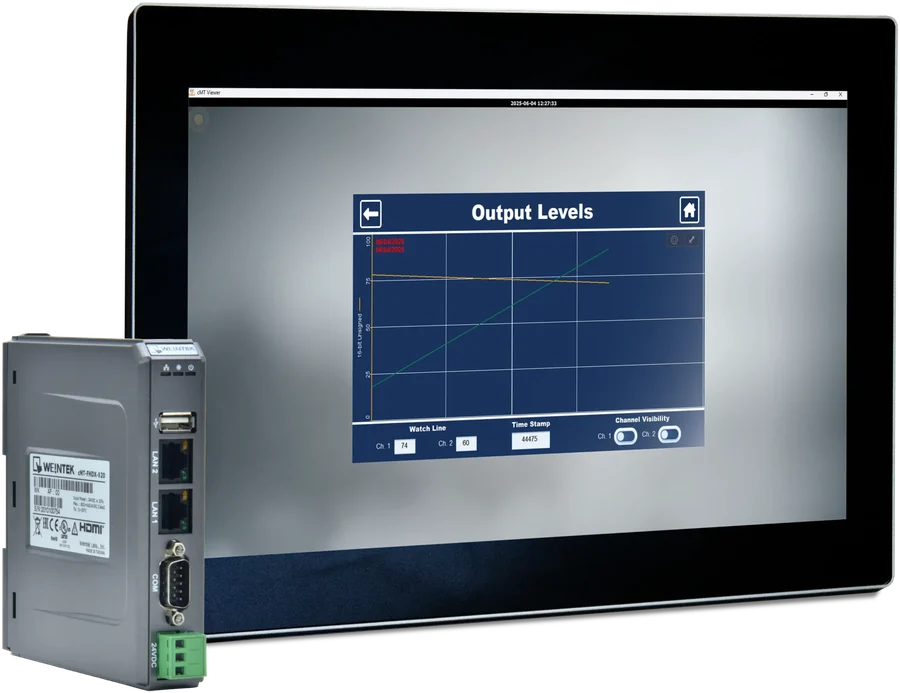

- Pair with our cMT Series HMIs or our Headless HMIs
- UL Listed, NEMA4 Rated
- IP66 Rated for Washdown Environments
- 1920 x 1080 Pixel Resolution
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 1 GB
- Memory (Flash)
- 4 GB
- RTC
- Built-in

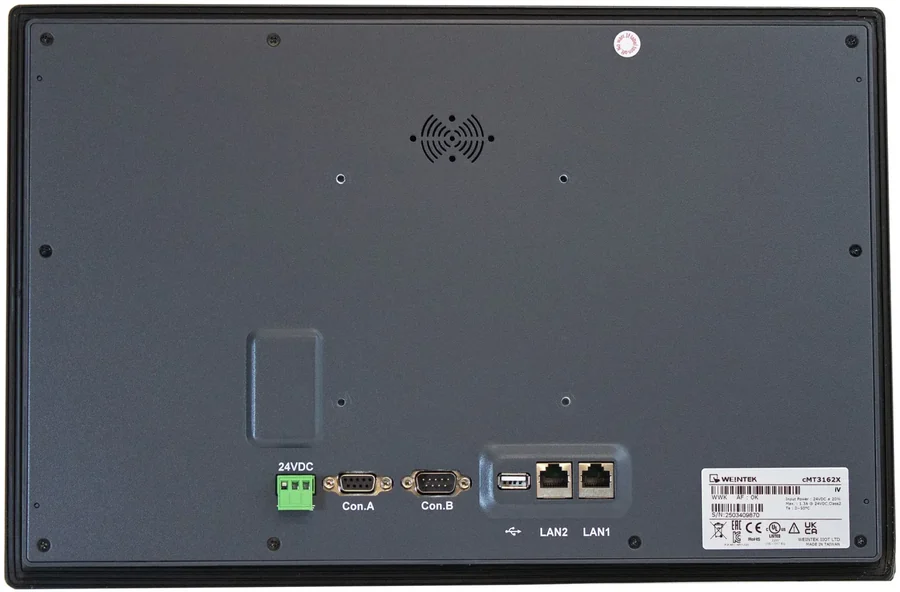

Puertos de E/S
- Ethernet/LAN
- LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1
- Audio Output
- Built-in Mono Speaker
- USB Host Ports
- USB 2.0 x 1
Pantalla
- Display Size
- 15.6" WVA LCD
- Resolution
- 1920 x 1080
- Luminance (cd/m^2)
- 300
- Contrast Ratio
- 800:1
- Backlight Type
- LED
- Backlight Lifetime (hrs)
- 30,000+
- Colors
- 16.2 M
- Display Type
- 15.6" WVA LCD
- Viewing Angle (H°/V°)
- 178/178
- Size (W x H)
- 13.60 x 7.68 inches [345.6 x 195 mm]
Pantalla táctil
- Type
- Tempered Glass, Projected Capacitive, Vibrational Feedback
- Touch Panel Hardness Scale
- 7H
Eléctrico
- Input Power
- 31.2 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MΩ – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 1.3 A @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
- Enclosure Material
- Front bezel: Plastic, Rear Enclosure: Aluminum
- PCB Coating
- Yes
- Dimensions WxHxD
- 15.75 x 10.35 x 1.03 inches [400 x 263 x 26.1 mm]
- Panel Cutout (inches) [mm]
- 15.12 x 9.72 [384 x 247]
- Weight
- Approx. 3.53 lbs. [1.6 kg]
- Mounting
- Panel mount, VESA 100 x 100 mm
Ambiental
- Operating Temperature
- 32° ~ 122°F (0° ~ 50°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- CE UKCA
- Yes
- UL Type Rating
- cULus
- NEMA Rating
- NEMA4
- IP Rating
- IP66 Compliant Front Panel
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT3162XiV
- Línea
- cMT Display
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
