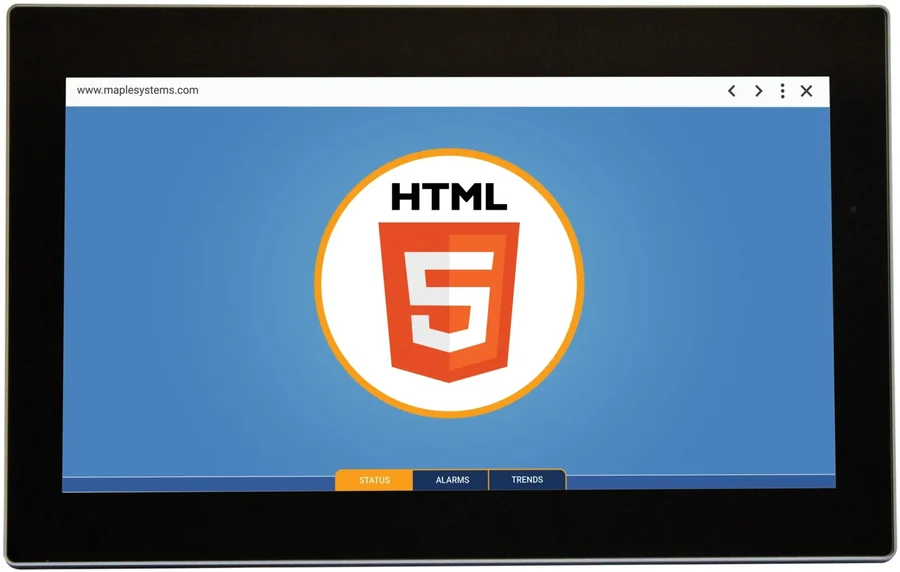

cMT3162XW
Our cMT3162XW is equipped with a powerful quad-core CPU, 4GB Flash memory, and 1GB RAM, anOur cMT3162XW is equipped with a powerful quad-core CPU, 4GB Flash memory, and 1GB RAM, and a PCB coating, enabling it to handle complex tasks with ease. Designed for endurance, this 15.6″ Capacitive Touch Web HMI is NEMA4 certified and has an IP66 rating, providing exceptional dust and water resistance, making it suitable for the most demanding industrial environments.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Built-in Chromium Browser Version 132

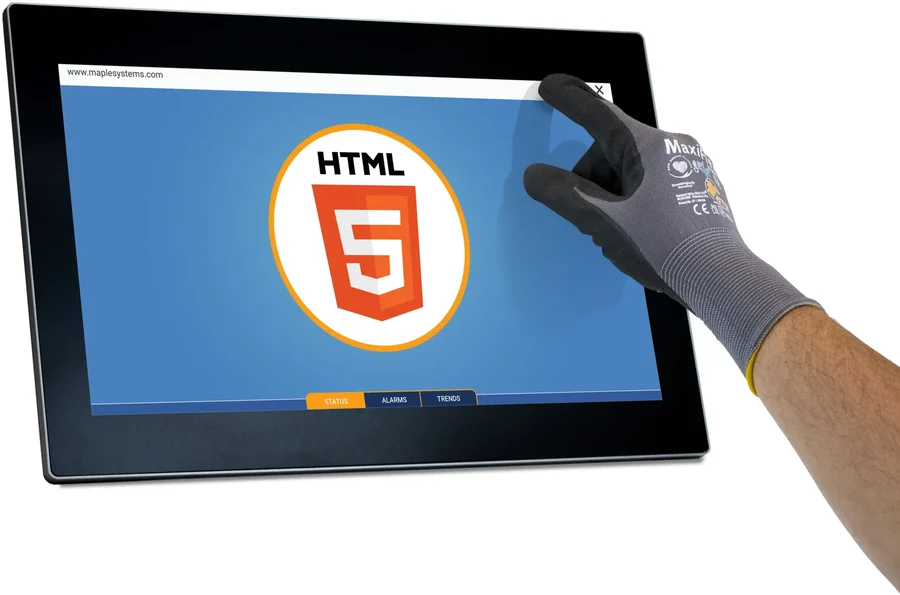

- Capacitive Touchscreen Technology
- UL Listed, NEMA4 Rated
- IP66 Rated for Washdown Environments
- 1920 x 1080 Pixel Resolution
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (eMMC)
- 4GB
- Memory (RAM)
- 1 GB
Puertos de E/S
- Ethernet/LAN
- LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1
- USB Host Ports
- USB 2.0 x 1 (Type A)
Pantalla
- Resolution
- 1920 x 1080
- Luminance (cd/m^2)
- 300
- Colors
- 16.2 M
- Display Type
- 15.6" WVA LCD
- Size (W x H)
- 13.60 x 7.68 inches [345.6 x 195 mm]
Pantalla táctil
- Type
- Tempered Glass, Projected Capacitive
Eléctrico
- Input Power
- 31.2 W
- Power Isolation
- Built-in
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 1.3 A @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
- Enclosure Material
- Front bezel: Plastic, Rear Enclosure: Aluminum
- PCB Coating
- Yes
- Dimensions WxHxD
- 15.75 x 10.35 x 1.03 inches [400 x 263 x 26.1 mm]
- Panel Cutout (inches) [mm]
- 15.12 x 9.72 [384 x 247]
- Weight
- Approx. 3.53 lbs. [1.6 kg]
- Mounting
- Panel mount, VESA 100 x 100 mm
- Shock (Operation)
- 25 g acceleration for 11 ms
Ambiental
- Operating Temperature
- 32~122°F [0~50°C]
- Storage Temperature
- -4~140°F [-20~60°C]
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- UL Type Rating
- UL Type 4X (indoor use only)
- NEMA Rating
- NEMA 4
- IP Rating
- IP66 Compliant Front Panel
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT3162XW
- Línea
- Web HMIs
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
