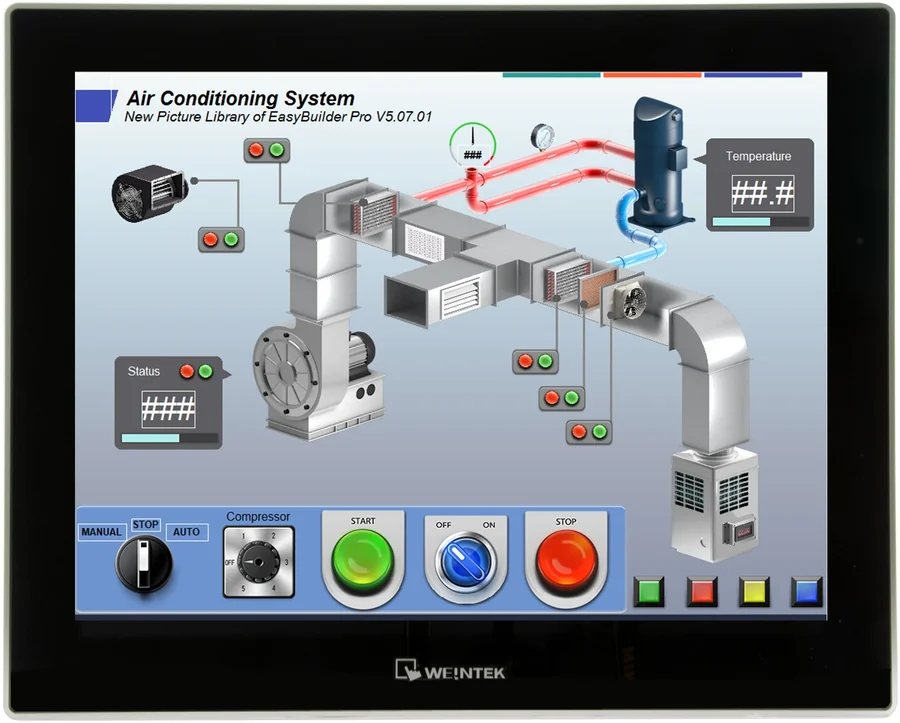

cMT3152Xv2
The cMT3152Xv2 features a powerful CPU, remote access capabilities, IIoT functionality , aThe cMT3152Xv2 features a powerful CPU, remote access capabilities, IIoT functionality , and our most advanced feature set, making this capacitive touch panel a powerful solution for your application. Pair this operator interface with our remote IO and CODESYS license for soft PLC functionality.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1024 x 768 Resolution, Capacitive Touchscreen
- Quad-Core RISC
- Supports Web Browser
- Panel or VESA mount. Aluminum Enclosure
- MQTT , OPC UA , SQL Database Integration
- Capable of Running CODESYS
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 1 GB
- Memory (Flash)
- 4 GB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)
Puertos de E/S
- Ethernet/LAN
- LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1
- Audio Output
- 1x Line Out / Built-in Mono Speaker
- SD Card Slot
- SD/SDHC (32GB capacity)
- USB Host Ports
- USB 2.0 x 1
- COM Port
- 1 x DE9S COM1: RS-485 2 or 4 wire, COM3: RS-485 2 wires / 1 x DE9P COM1: RS-232, COM3: RS-232
- Serial Ports
- 2
Pantalla
- Display Size
- 15" WVA LCD
- Resolution
- 1024 X 768
- Luminance (cd/m^2)
- 350
- Contrast Ratio
- 2500:1
- Backlight Type
- LED
- Backlight Lifetime (hrs)
- 70,000+
- Colors
- 16.2 M
- Display Type
- 15" WVA LCD
- Viewing Angle (H°/V°)
- 176/176
- Size (W x H)
- 12.05 x 9.06 inches [306 x 230 mm]
Pantalla táctil
- Type
- Tempered Glass, Projected Capacitive
- Touch Panel Hardness Scale
- 7H
Eléctrico
- Input Power
- 31.2 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MΩ – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 1.3 A @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
- Enclosure Material
- Aluminum, charcoal grey
- PCB Coating
- Yes
- Dimensions WxHxD
- 14.41 x 11.54 x 2.03 inches [366 x 293 x 51.5 mm]
- Panel Cutout (inches) [mm]
- 13.86 x 10.98 [352 x 279]
- Weight
- Approx. 6.06 lbs. [2.75 kg]
- Mounting
- Panel mount, VESA 75 x 75 mm
Ambiental
- Operating Temperature
- 32° ~ 122°F (0° ~ 50°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- CE UKCA
- Yes
- UL Type Rating
- UL Type 4X (indoor use only)
- NEMA Rating
- NEMA4
- IP Rating
- IP66 Compliant Front Panel
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT3152Xv2
- Línea
- Human Machine Interface · HMI + Remote I/O + CODESYS · Hardware Platform
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
