cMT3108XPiV
Secondary Display for cMT Devices – Display Only Our 10.1″ capacitive touch cMT3108XPiV diSecondary Display for cMT Devices – Display Only Our 10.1″ capacitive touch cMT3108XPiV display only unit has a fanless cooling system, NEMA4/IP66/ATEX rating, and a PCB coating, making this ideal for harsh environments.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Secondary Display for cMT devices– Display Only
- Built-in cMT Viewer

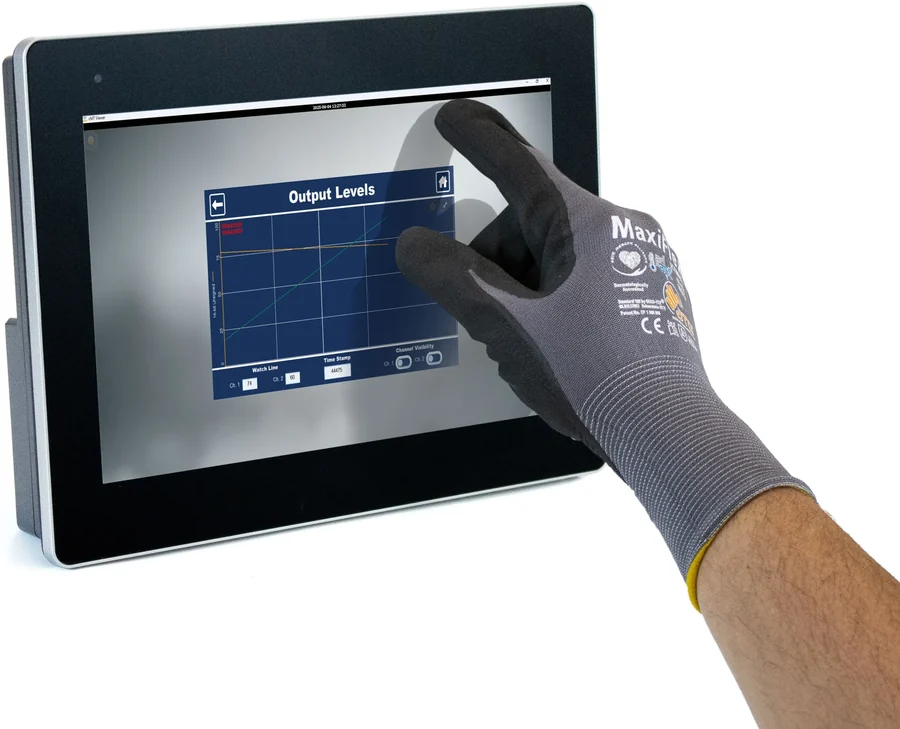

- Capacitive Touchscreen Technology

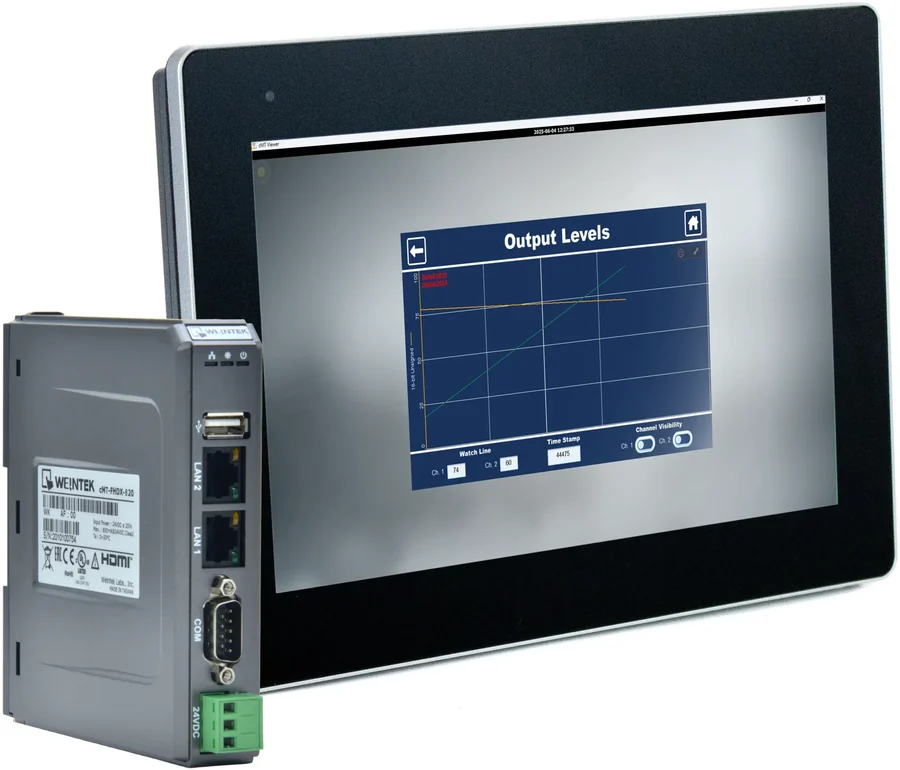

- Pair with our cMT Series HMIs or our Headless HMIs
- UL Listed, NEMA4 Rated, ATEX Rated
- IP66 Rated for Washdown Environments
- 1280 x 800 Pixel Resolution
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 1 GB
- Memory (Flash)
- 4 GB
- RTC
- Built-in
Puertos de E/S
- Ethernet/LAN
- LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1
- Audio Output
- Built-in Mono Speaker
- USB Host Ports
- USB 2.0 x 1
- Wi-Fi

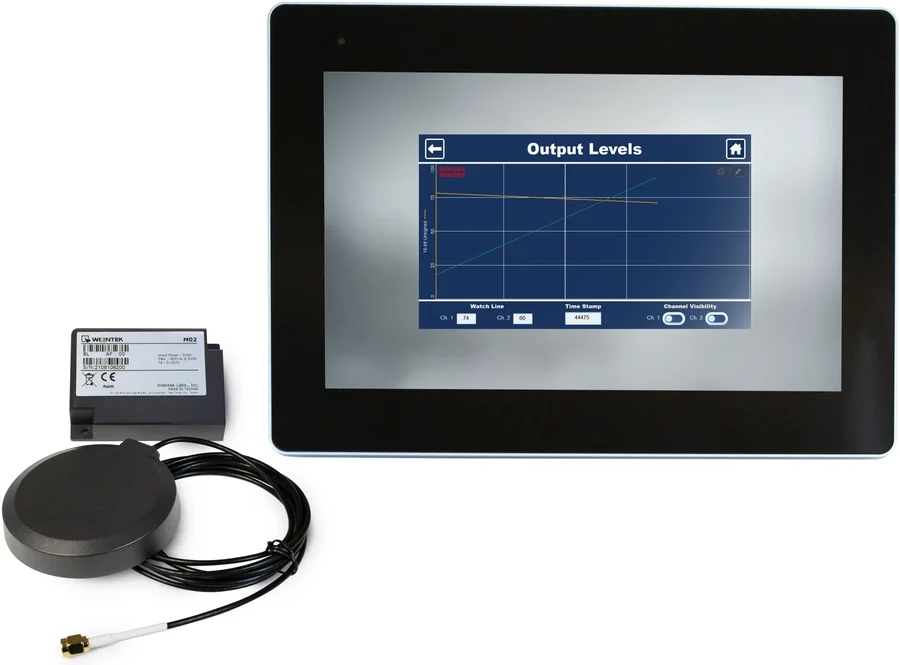

- MO2 Wifi – Expansion Module (Optional)
Pantalla
- Display Size
- 10.1" WVA LCD
- Resolution
- 1280 x 800
- Luminance (cd/m^2)
- 425
- Contrast Ratio
- 800:1
- Backlight Type
- LED
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.7 M
- Display Type
- 10.1” WVA LCD
- Viewing Angle (H°/V°)
- 178/178
- Size (W x H)
- 8.58 x 5.38 inches [218 x 137 mm]
Pantalla táctil
- Type
- Tempered Glass, Capacitive Touch
- Touch Panel Hardness Scale
- 7H
Eléctrico
- Input Power
- 16.8 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MΩ – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 700 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
- Enclosure Material
- Plastic, charcoal grey
- PCB Coating
- Yes
- Dimensions WxHxD
- 10.47 x 7.72 x 1.68 inches [266 x 196 x 43 mm]
- Panel Cutout (inches) [mm]
- 10.04 x 7.28 [255 x 185]
- Weight
- Approx. 2.43 lbs. [1.1 Kg]
- Mounting
- Panel mount, VESA 75 x 75 mm
Ambiental
- Operating Temperature
- 32° ~ 131°F (0° ~ 55°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- CE UKCA
- Yes
- UL Type Rating
- cULus
- NEMA Rating
- NEMA4
- IP Rating
- IP66 Compliant Front Panel
- CE
- Yes
- UL
- cULus Listed
- ATEX
- ATEX Zone 2/22 Category 3 G/D
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT3108XPiV
- Línea
- cMT Display
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
