cMT3108XPW

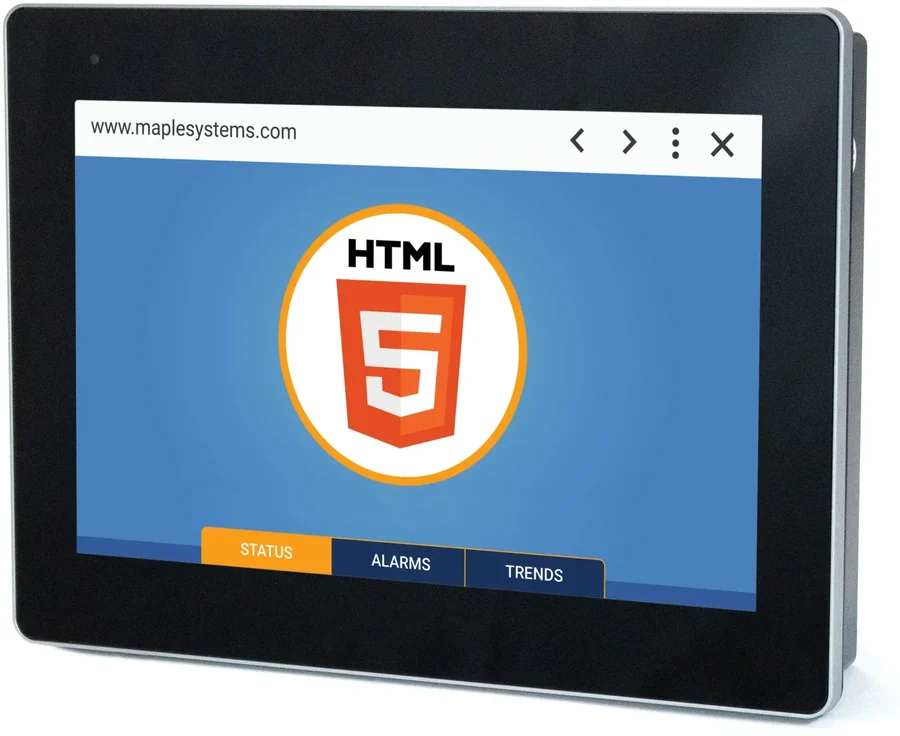

Our cMT3108XPW is equipped with a powerful quad-core CPU, 4GB Flash memory, and 1GB RAM, aOur cMT3108XPW is equipped with a powerful quad-core CPU, 4GB Flash memory, and 1GB RAM, and a PCB coating, enabling it to handle complex tasks with ease. Designed for endurance, this 10.1″ Capacitive Touch Web HMI is NEMA4 certified and has an IP66 rating, providing exceptional dust and water resistance, making it suitable for the most demanding industrial environments.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Built-in Chromium Browser Version 132

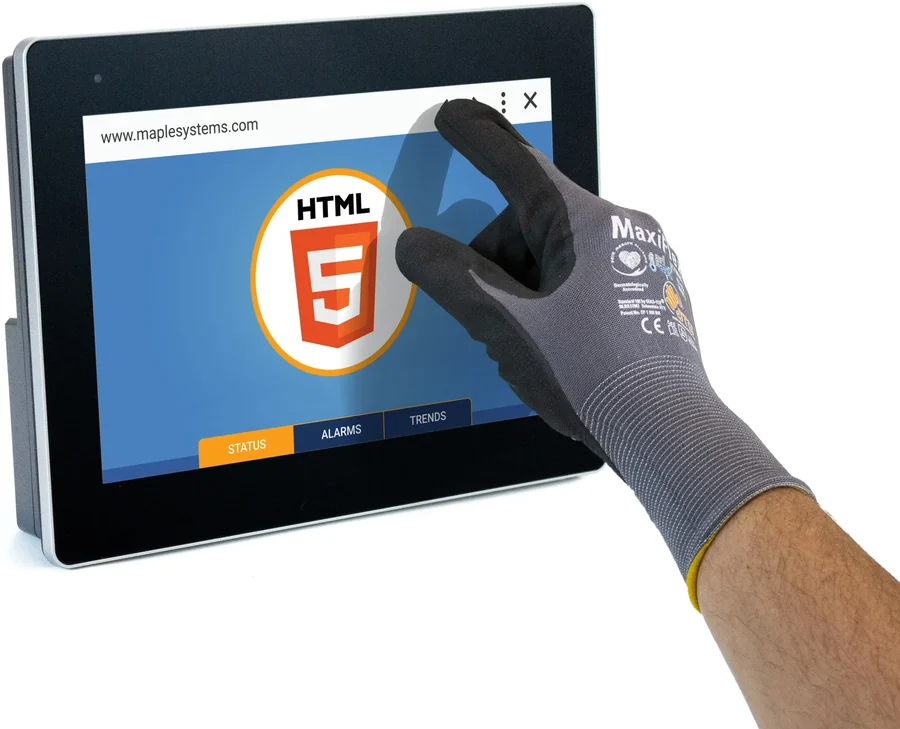

- Capacitive Touchscreen Technology
- UL Listed, NEMA4 Rated
- IP66 Rated for Washdown Environments
- 1280 x 800 Pixel Resolution
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (eMMC)
- 4GB
- Memory (RAM)
- 1 GB
Puertos de E/S
- Ethernet/LAN
- LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1
- USB Host Ports
- USB 2.0 x 1 (Type A)
- Wi-Fi

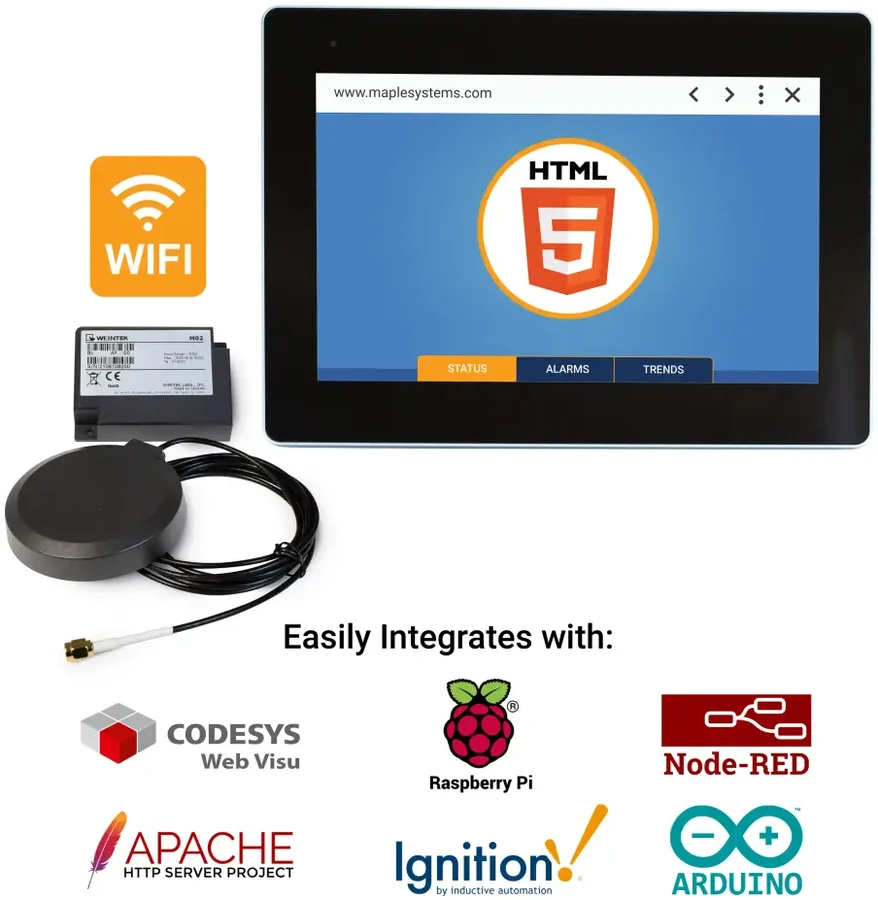

- MO2 Wifi = Expansion Module (Optional)
Pantalla
- Resolution
- 1280 x 800
- Luminance (cd/m^2)
- 425
- Colors
- 16.7 M
- Display Type
- 10.1” WVA LCD
- Size (W x H)
- 8.58 x 5.38 inches [218 x 137 mm]
Pantalla táctil
- Type
- Tempered Glass, Projected Capacitive
Eléctrico
- Input Power
- 17 W
- Power Isolation
- Built-in
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 700 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
- Enclosure Material
- Plastic, charcoal grey
- PCB Coating
- Yes
- Dimensions WxHxD
- 10.47 x 7.72 x 1.68 inches [266 x 196 x 43 mm]
- Panel Cutout (inches) [mm]
- 10.04 x 7.28 [255 x 185]
- Weight
- Approx. 2.43 lbs. [1.1 Kg]
- Mounting
- Panel mount, VESA 75 x 75 mm
- Shock (Operation)
- 25 g acceleration for 11 ms
Ambiental
- Operating Temperature
- 32° ~ 131°F (0° ~ 55°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- UL Type Rating
- UL Type 4X (indoor use only)
- NEMA Rating
- NEMA 4
- IP Rating
- IP66 Compliant Front Panel
- CE
- Yes
- UL
- cULus Listed
- ATEX
- ATEX Zone 2/22 Category 3 G/D
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT3108XPW
- Línea
- Wi-Fi Enabled HMIs · Web HMIs
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
