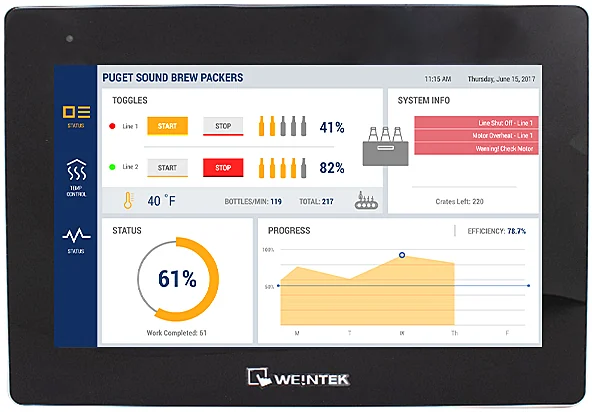

cMT3108XP-CODESYS
Experience the innovation of the high performance cMT3108XP with CODESYS activated. With oExperience the innovation of the high performance cMT3108XP with CODESYS activated. With optional Wi-Fi connectivity , it is perfect for applications demanding a high-resolution display, advanced features , remote access , ATEX rated, and IIoT capabilities .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Capacitive Touch 1280 x 800 Resolution, 2 Ethernet Ports, 1 USB Port, 2 Serial Ports
- WiFi capable with addition of Wi-Fi Expansion Module*
- Advanced features include Multimedia Support for Video Player, IP/USB Camera, PDF reader, Web Browser , Email, and more
- CODESYS license included, add remote I/O for Soft PLC Functionality
- IIoT , Remote Access , MQTT , OPCUA Client/Server, SQL Database
- CE, RoHS, cULus, IP66, NEMA4, ATEX
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 1 GB
- Memory (Flash)
- 4 GB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)

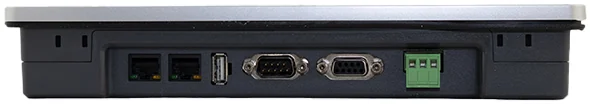

Puertos de E/S
- Ethernet/LAN
- LAN 1: 10/100 Base-T RJ-45 LAN 2: GbE RJ-45
- CANbus
- Yes
- Audio Output
- Built-in Mono Speaker
- USB Host Ports
- USB 2.0 x 1
- Wi-Fi
- MO2 Wifi – Expansion Module (Optional)
- COM Port
- CANbus / 1 x DE9S COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wires / 1 x DE9P COM1: RS-232, COM3: RS-232
- Serial Ports
- 2
Pantalla
- Resolution
- 1280 x 800
- Luminance (cd/m^2)
- 425
- Contrast Ratio
- 800:1
- Backlight Type
- LED
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.7 M
- View Angle (H° V°)
- 178/178
- Display Type
- 10.1” WVA LCD
- Viewing Angle (H°/V°)
- 178/178
- Size (W x H)
- 8.58 x 5.38 inches [218 x 137 mm]
Pantalla táctil
- Type
- Tempered Glass, Capacitive Touch
- Touch Panel Hardness Scale
- 7H
Eléctrico
- Input Power
- 16.8 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MO – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 700 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
- Enclosure Material
- Black Plastic
- PCB Coating
- Yes
- Dimensions WxHxD
- 10.47 x 7.72 x 1.68 inches [266 x 196 x 43 mm]
- Panel Cutout (inches) [mm]
- 10.04 x 7.28 [255 x 185]
- Weight
- Approx. 2.43 lbs. [1.1 Kg]
- Mounting
- Panel mount, VESA 75 x 75 mm
Ambiental
- Operating Temperature
- 32° ~ 131°F (0° ~ 55°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- CE UKCA
- Yes
- UL Type Rating
- cULus
- NEMA Rating
- NEMA4
- IP Rating
- IP66 Compliant Front Panel
- CE
- Yes
- UL
- cULus Listed
- ATEX
- ATEX Zone 2/22 Category 3 G/D
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT3108XP-CODESYS
- Línea
- HMI + Remote I/O + CODESYS · Hardware Platform · CODESYS HMIs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
