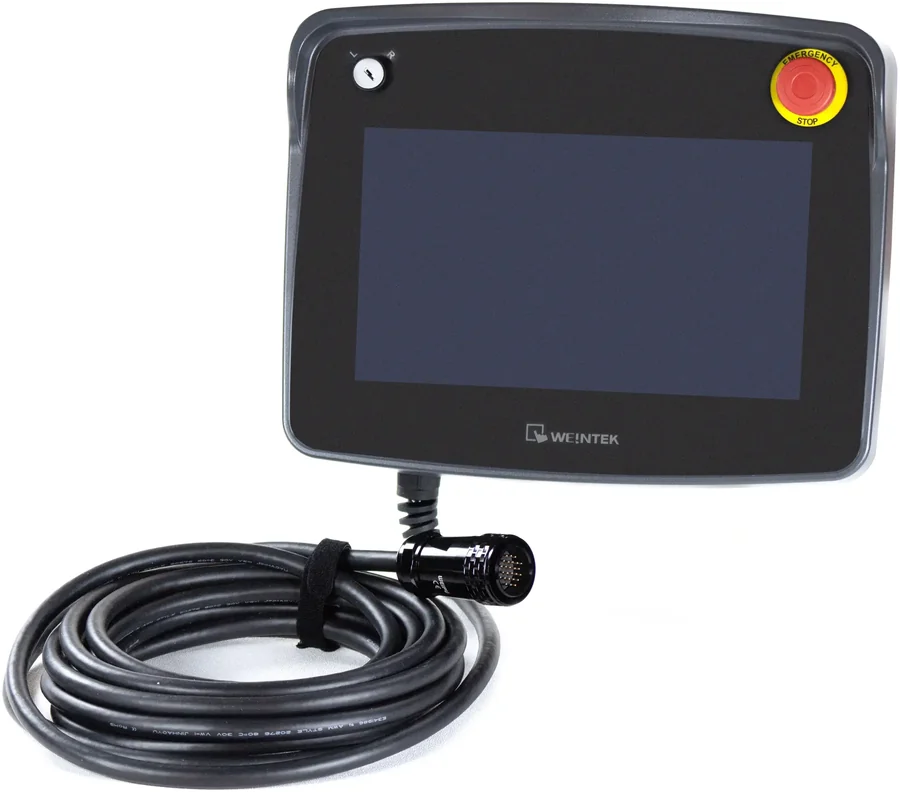

cMT3106XM
Built for flexible operation in harsh industrial environments, the cMT3106XM helps operatoBuilt for flexible operation in harsh industrial environments, the cMT3106XM helps operators monitor and control machines directly at the equipment or between nearby workstations. It features an integrated handle, responsive touchscreen, advanced connectivity, reliable performance, and built-in safety controls, including a Key Switch , Emergency Stop Switch , and 3-Position Enable Switch .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1024 x 600 Resolution, Ethernet, Serial, USB 2.0 Ports, SD/SDHC Slot
- Built-in E-Stop, Key Switch, and 3 POS Switch for Enhanced Safety

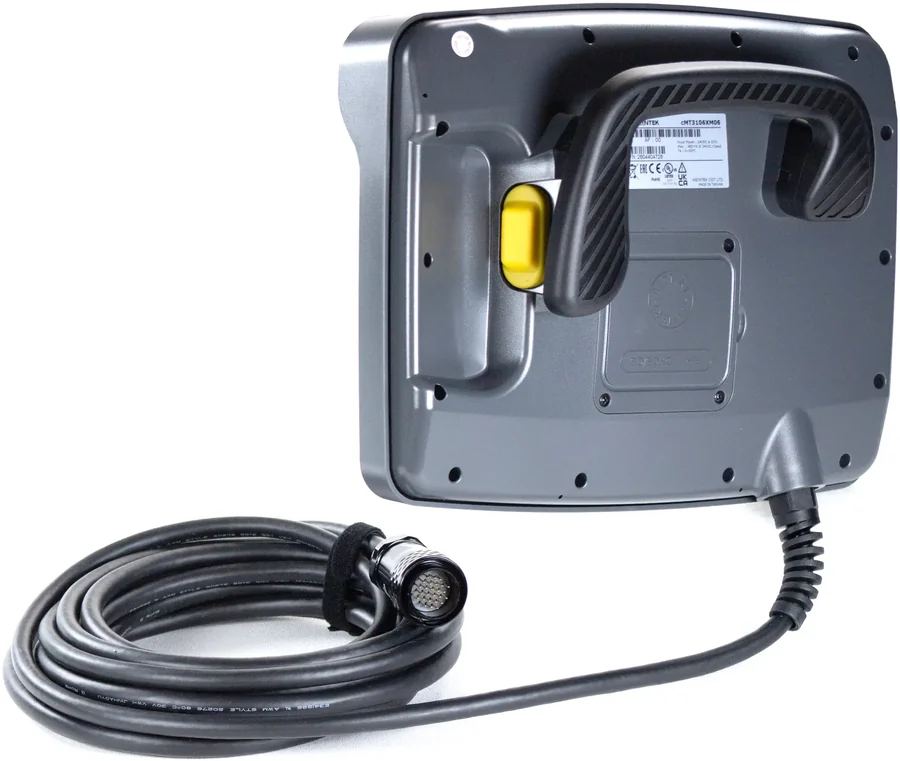

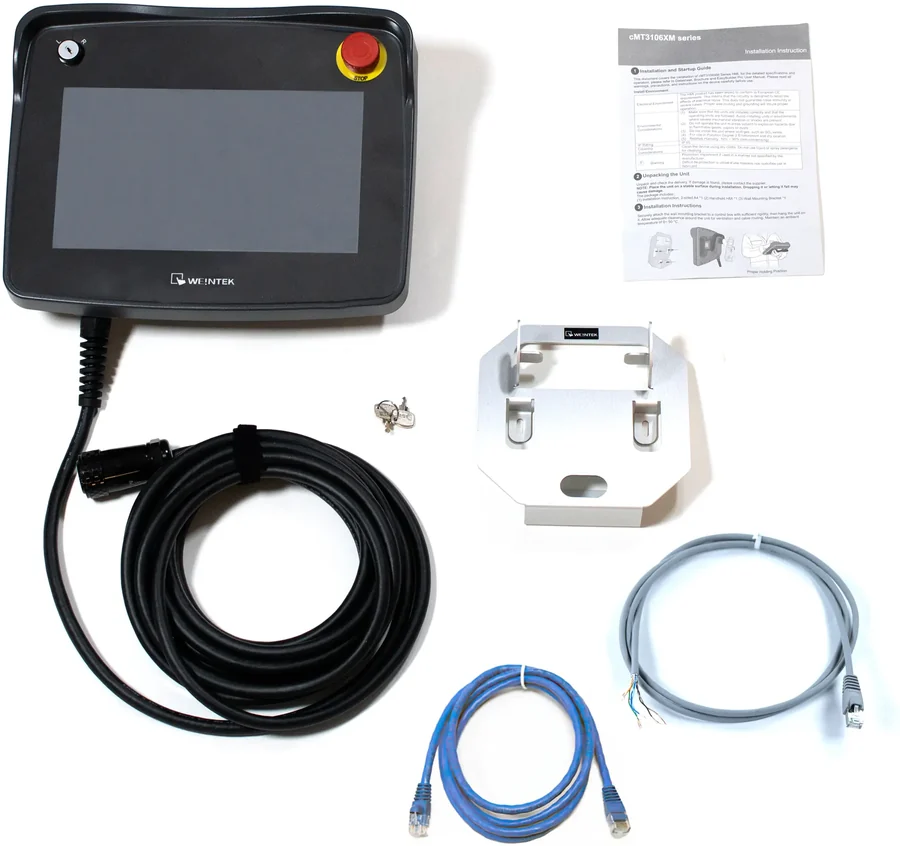

- Ergonomic Rear Handle . Wall Mount Included
- Web Browser , Email, and More
- IIoT , Remote Access , MQTT , OPCUA Client/Server, SQL Database
- cULus, CE, RoHS, IP65, NEMA4
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 1 GB
- Memory (Flash)
- 4 GB
- RTC
- Built-in
Puertos de E/S
- Ethernet/LAN
- See Connection Box
- SD Card Slot
- SD/SDHC (32GB capacity)
- USB Host Ports
- USB 2.0 x 1
- Serial Ports
- See Connection Box
- Tether Cable
- 6 m (20 feet) / 10 m (33 feet)
Pantalla
- Resolution
- 1024 x 600
- Luminance (cd/m^2)
- 350
- Contrast Ratio
- 1000:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.7 M
- Display Type
- 10.1” WVA LCD
- Viewing Angle (H°/V°)
- 178/178
- Size (W x H)
- 8.81 x 4.97 inches [223.7 x 126.3 mm]
Pantalla táctil
- Type
- 4-wire resistive touch
- Accuracy
- Length (X) ±2%, width (Y) ±2%
Key Switch
- Contacts
- NO x 1 / NC x 1
- Rated Operating Voltage
- 24 VDC
- Rated Operating Current
- 500 mA
- Mechanical Life
- ~250,000 Operations
Emergency Stop Switch
- Rated Operating Voltage
- 30 VDC
- Rated Operating Current
- 500 mA
- Standards
- IEC60947-5-1 / EN60947-5-1 / IEC60947-5-5 / EN60947-5-5 / UL60947-5-5 / NFPA79, CSA C22.2 No. 14 / GB14048.5
- Mechanical Life
- ~250,000 Operations
3-Position Enabled Switch
- Contacts
- NO x 2
- Rated Operating Voltage
- 30 VDC
- Rated Operating Current
- 500 mA
- Standards
- IEC/EN 60947-5-8 / IEC/EN 60947-5-1 / UL508, CSA C22.2 NO. 14 / GS-ET-22
- Mechanical Life
- 1→2→1 ~1,000,000 Operations / 1→2→3→1 ~ 100,000 Operations
Eléctrico
- Input Power
- 11.52 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MΩ – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 480mA @ 24 VDC
Mecánico
- Enclosure Material
- Plastic
- PCB Coating
- Yes
- Dimensions WxHxD
- 11.91 x 9.44 x 4.59" [302.7 x 240.0 x 116.8 mm]
- Weight
- Approx. 3.53 lbs. [1.6 kg]
- Mounting
- Wall Mount kit included
Ambiental
- Drop Resistance
- 4 feet [1.2m]
- Operating Temperature
- 32 ~ 122° F (0~50° C)
- Storage Temperature
- -4~140°F [-20~60°C]
- Relative Humidity
- 10% ~ 90% (non-condensing)
- Vibration Endurance
- 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
Certificaciones
- UL Type Rating
- cULus
- NEMA Rating
- NEMA 4
- IP Rating
- IP65
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT3106XM
- Línea
- Human Machine Interface · Hardware Platform
