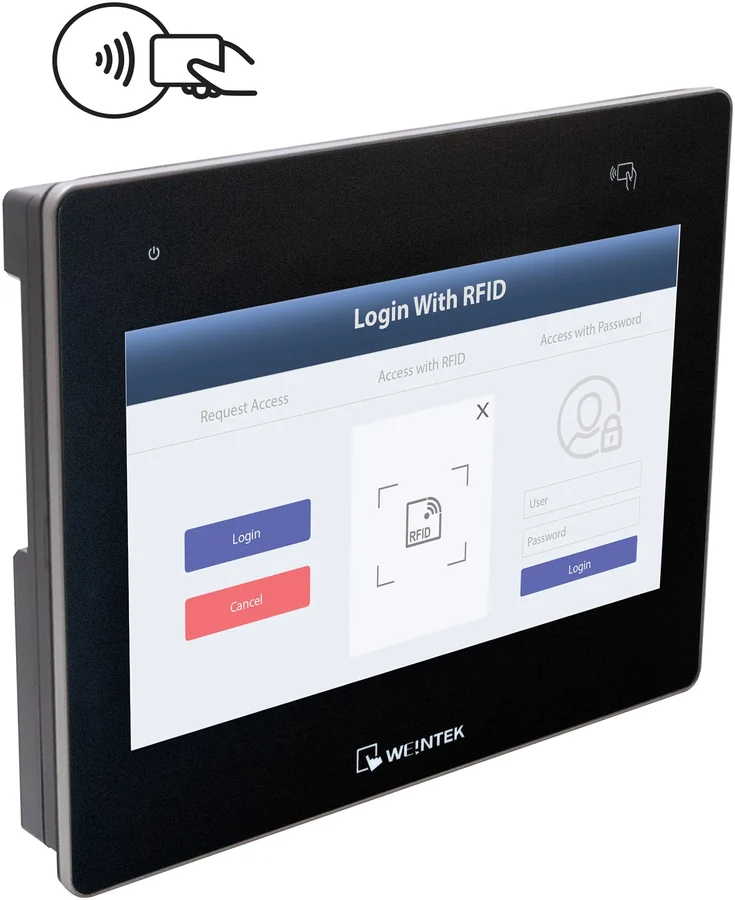

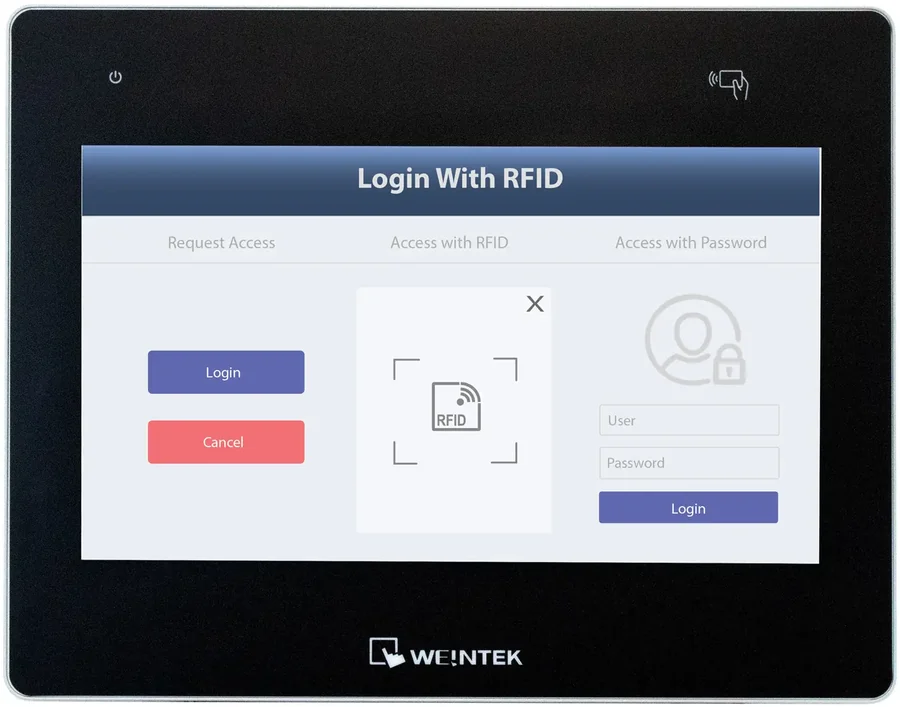

cMT3102Xv2R-CODESYS
The cMT3102Xv2R with activated CODESYS features a powerful CPU, remote access , IIoT functThe cMT3102Xv2R with activated CODESYS features a powerful CPU, remote access , IIoT functionality , plus built-in RFID capabilities . Perfect for applications such as access control, equipment unlocking, and product traceability. This all-in-one solution eliminates the need for additional external devices, saving on cost and space all while enhancing security and reducing data entry errors.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1024 x 600 Resolution, 2 Ethernet Ports, 1 USB Port, 2 Serial Ports, CANbus
- Built-in RFID , Wifi Capable via Expansion Module*
- Advanced features include Light or Dark Themes, Web Streaming, Web View, and Web Browser
- IIoT , Remote Access , MQTT , OPCUA Client/Server, SQL Database
- cULus, CE, RoHS, IP66, NEMA4, ATEX
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
RFID
- Compatibility Standard
- ISO/IEC 14443 Type A/B, Frequency: 13.56 MHz
- Reading Distance
- Max. 4 cm
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 1 GB
- Memory (Flash)
- 4 GB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)
Puertos de E/S
- Ethernet/LAN
- LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1
- CANbus
- Yes
- USB Host Ports
- USB 2.0 x 1
- Wi-Fi
- MO2 Wifi – Expansion Module (Optional)
- COM Port
- CANbus / 1 x DE9S COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wires / 1 x DE9P COM1: RS-232, COM3: RS-232
- RS-485 Dual Isolation
- Yes
- Serial Ports
- 2
Pantalla
- Display Size
- 10.1" TFT
- Resolution
- 1024 x 600
- Luminance (cd/m^2)
- 350
- Contrast Ratio
- 500:1
- Backlight Type
- LED
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.7 M
- Display Type
- 10.1" TFT
- Viewing Angle (H°/V°)
- 160/140
- Size (W x H)
- 8.82 x 4.96 inches [224 x 126 mm]
Pantalla táctil
- Type
- 4-wire resistive touch
- Accuracy
- Length (X) ±2%, width (Y) ±2%
Eléctrico
- Input Power
- 24 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MΩ – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 1 A @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
- Enclosure Material
- Plastic, charcoal grey
- PCB Coating
- Yes
- Dimensions WxHxD
- 10.67 x 8.39 x 1.50 inches [271 x 213 x 38 mm]
- Panel Cutout (inches) [mm]
- 10.24 x 7.95 [260 x 202]
- Weight
- Approx. 2.65 lbs. [1.2 Kg]
- Mounting
- Panel mount, VESA 75 x 75 mm
Ambiental
- Operating Temperature
- 32° ~ 122°F (0° ~ 50°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- UL Type Rating
- UL Type 4X (indoor use only)
- NEMA Rating
- NEMA4
- IP Rating
- IP66 Compliant Front Panel
- CE
- Yes
- UL
- cULus Listed
- ATEX
- ATEX Zone 2/22 Category 3 G/D
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT3102Xv2R-CODESYS
- Línea
- HMI + Remote I/O + CODESYS · Hardware Platform · CODESYS HMIs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
