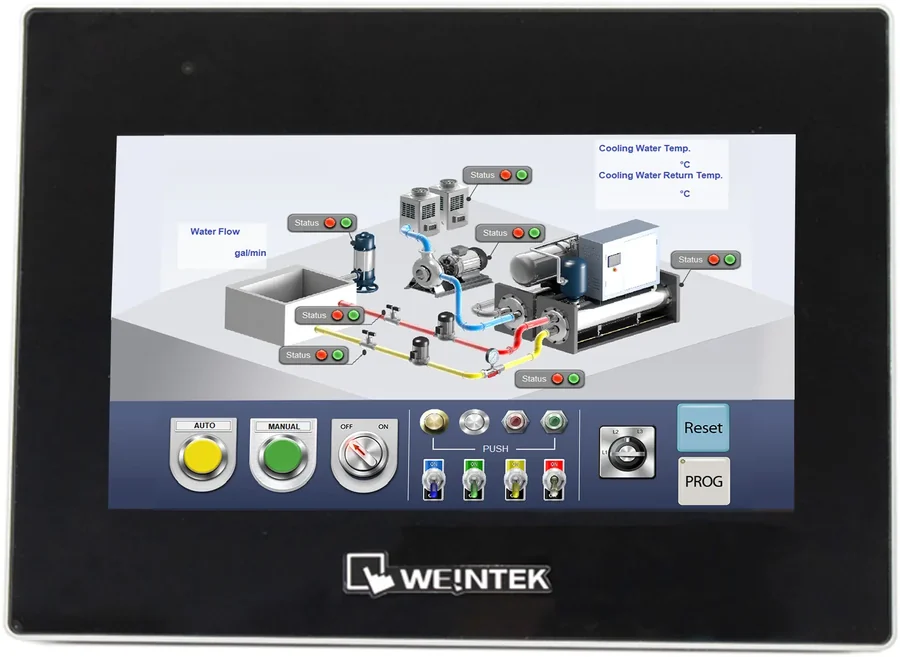

cMT3072XPv2-CODESYS
A Capacitive Touchscreen HMI, the cMT3072XPv2 with an activated CODESYS license features aA Capacitive Touchscreen HMI, the cMT3072XPv2 with an activated CODESYS license features a powerful CPU, remote access capabilities, IIoT functionality , and our most advanced feature set, making this capacitive touch panel a powerful solution for your application. New visual settings are customizable with Light or Dark Theme.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1024 x 600 High Resolution Capacitive Touch Panel
- Quad-Core RISC
- CANbus , 2 Ethernet, 1 USB, 2 Serial Ports
- MQTT , OPC UA Client / Server Built-in
- SQL Database Integration , Web Browser
- Add our I/O Modules for soft PLC control
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 1 GB
- Memory (Flash)
- 4 GB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)
Puertos de E/S
- Ethernet/LAN
- 10/100 Base-T x 2
- CANbus
- Yes
- USB Host Ports
- USB 2.0 x 1
- COM Port
- CANbus / 1 x DE9S COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wires / 1 x DE9P COM1: RS-232, COM3: RS-232
- Serial Ports
- 2
Pantalla
- Display Size
- 7" WVA LCD
- Resolution
- 1024 x 600
- Luminance (cd/m^2)
- 450
- Contrast Ratio
- 800:1
- Backlight Type
- LED
- Backlight Lifetime (hrs)
- 30,000+
- Colors
- 16.7 M
- Display Type
- 7" WVA
- Viewing Angle (H°/V°)
- 170/170
- Size (W x H)
- 6.09 x 3.39 inches [155 x 86 mm]
Pantalla táctil
- Type
- Tempered Glass, Projected Capacitive
- Touch Panel Hardness Scale
- 7H
Eléctrico
- Input Power
- 19.7 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MO – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 820 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
- Enclosure Material
- Plastic, charcoal grey
- PCB Coating
- Yes
- Dimensions WxHxD
- 7.89 x 5.76 x 1.45 inches [200.3 x 146.3 x 36.9 mm]
- Panel Cutout (inches) [mm]
- 7.56 x 5.43 [192 x 138]
- Weight
- Approx. 1.54 lbs. [0.7 kg]
- Mounting
- Panel mount
Ambiental
- Operating Temperature
- -4° ~ 131°F (-20° ~ 55°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- CE UKCA
- Yes
- NEMA Rating
- NEMA4
- IP Rating
- IP66 Compliant Front Panel
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT3072XPv2-CODESYS
- Línea
- HMI + Remote I/O + CODESYS · Hardware Platform · CODESYS HMIs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
