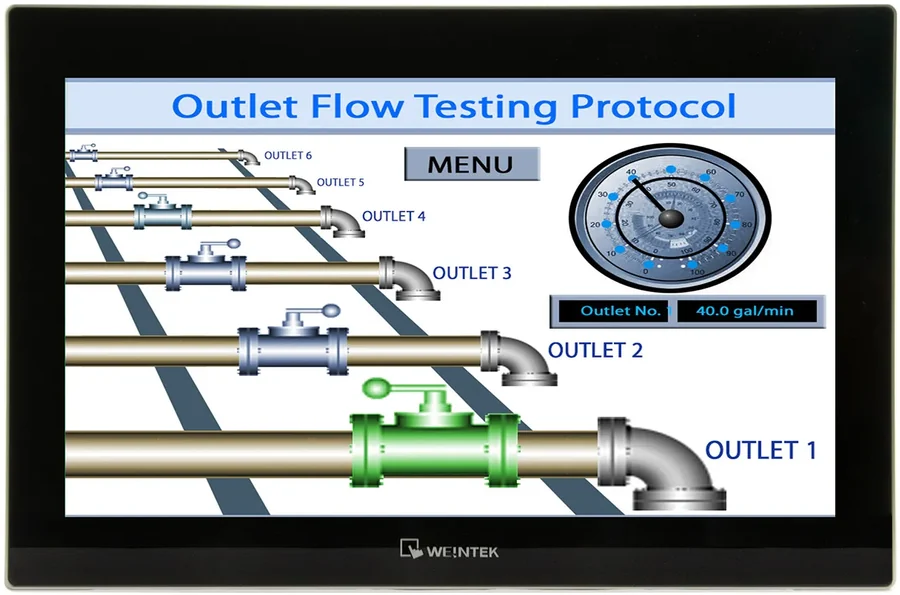

cMT2166X
Our cMT2166X is a innovative, advanced operator interface ideal for applications requiringOur cMT2166X is a innovative, advanced operator interface ideal for applications requiring a more advanced feature set, remote access , and IIoT functionality. Try Before You Buy: Follow along to learn how EBPro, our 100% free HMI configuration software, allows you to develop and simulate your HMI program entirely free of charge.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1920 x 1080 Resolution
- RISC Quad-Core CPU
- 1 Ethernet, 1 USB, 2 Serial Ports
- Projected Capacitive Touchscreen
- MQTT , Sparkplug B , WebView , VNC
- Add an EasyAccess 2.0 license for remote access
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 1 GB
- Memory (Flash)
- 4 GB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)

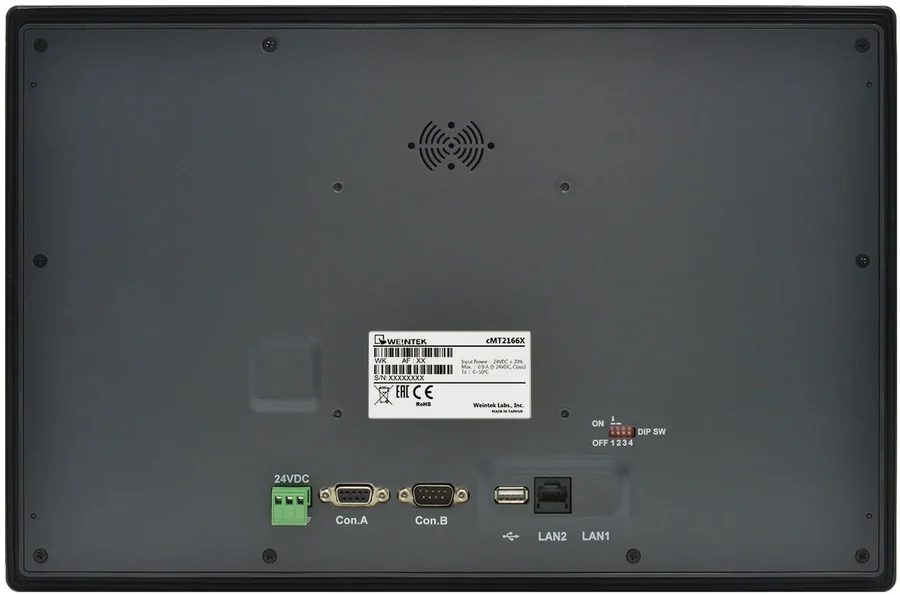

Puertos de E/S
- Ethernet/LAN
- 10/100 Base-T x 1
- Audio Output
- Built-in Mono Speaker
- USB Host Ports
- USB 2.0 x 1
- COM Port
- 1 x DE9S COM1: RS-485 2 or 4 wire, COM3: RS-485 2 wires / 1 x DE9P COM1: RS-232, COM3: RS-232
- Serial Ports
- 2
Pantalla
- Display Size
- 15.6" IPS LCD
- Resolution
- 1920 x 1080
- Luminance (cd/m^2)
- 300
- Contrast Ratio
- 800:1
- Backlight Type
- LED
- Backlight Lifetime (hrs)
- 30,000+
- Colors
- 16.2 M
- Display Type
- 15.6" IPS
- Viewing Angle (H°/V°)
- 178/178
- Size (W x H)
- 13.60 x 7.68 inches [345.6 x 195 mm]
Pantalla táctil
- Type
- Tempered Glass, Projected Capacitive
- Touch Panel Hardness Scale
- 7H
Eléctrico
- Input Power
- 21.6 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MΩ – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 0.9 A @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
- Enclosure Material
- Front bezel: Plastic, Rear Enclosure: Aluminum
- PCB Coating
- Yes
- Dimensions WxHxD
- 15.75 x 10.35 x 0.98 inches [400 x 263 x 24.9 mm]
- Panel Cutout (inches) [mm]
- 15.12 x 9.72 [384 x 247]
- Weight
- Approx. 3.53 lbs. [1.6 kg]
- Mounting
- Panel mount, VESA 100 x 100 mm
Ambiental
- Operating Temperature
- 32° ~ 122°F (0° ~ 50°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- CE UKCA
- Yes
- NEMA Rating
- NEMA4
- IP Rating
- IP66 Compliant Front Panel
- CE
- Yes
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT2166X
- Línea
- Human Machine Interface
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
