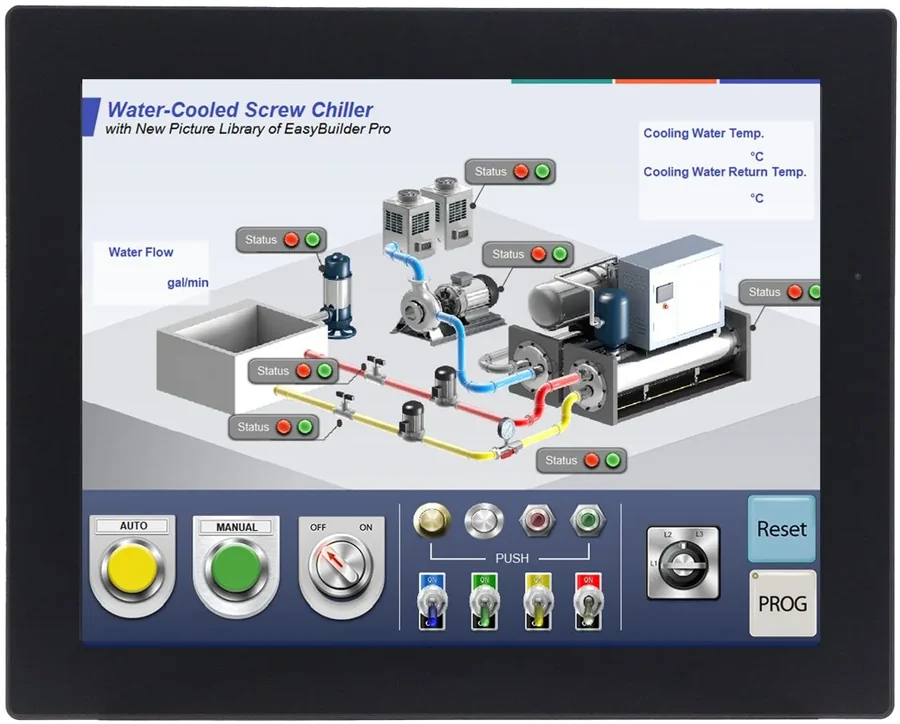

cMT2158Xv2-CODESYS
The C1D2 rated cMT2158Xv2 with an activated CODESYS license features an aluminum enclosureThe C1D2 rated cMT2158Xv2 with an activated CODESYS license features an aluminum enclosure, powerful CPU, remote access capabilities, IIoT functionality , and an advanced feature set, making this touch panel a powerful solution for your application. Pair this operator interface with our remote IO for soft PLC functionality.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1024 x 768 Resolution, 2 Ethernet Ports, 1 USB Port, 2 Serial Ports, C1D2 Rated
- Includes CODESYS for Soft PLC Functionality, Web Browser , Email, and more
- IIoT , Remote Access , MQTT , OPCUA Client/Server, SQL Database
- Add our I/O Modules for soft PLC control
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 1 GB
- Memory (Flash)
- 4 GB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)

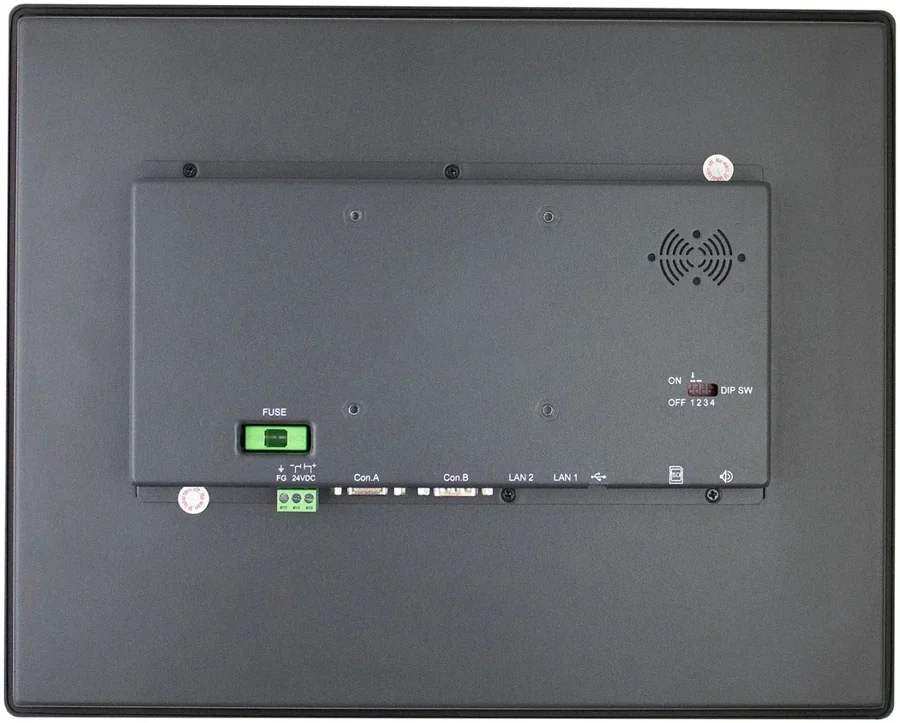

Puertos de E/S
- Ethernet/LAN
- LAN 1: 10/100 Base-T RJ-45; LAN 2: GbE RJ-45
- Audio Output
- 1x Line Out / Built-in Mono Speaker
- SD Card Slot
- SD/SDHC (32GB capacity)
- USB Host Ports
- USB 2.0 x 1
- COM Port
- 1 x DE9S COM1: RS-485 2 or 4 wire, COM3: RS-485 2 wires / 1 x DE9P COM1: RS-232, COM3: RS-232
- RS-485 Dual Isolation
- Yes
- Serial Ports
- 2
Pantalla
- Display Size
- 15" WVA LCD
- Resolution
- 1024 X 768
- Luminance (cd/m^2)
- 350
- Contrast Ratio
- 2500:1
- Backlight Type
- LED
- Backlight Lifetime (hrs)
- 70,000+
- Colors
- 16.2 M
- Display Type
- 15" WVA LCD
- Viewing Angle (H°/V°)
- 176/176
- Size (W x H)
- 12.00 x 9.00 inches [304.7 x 228.5 mm]
Pantalla táctil
- Type
- 4-wire resistive touch
- Accuracy
- Length (x)±2%, Width(y)±2%
Eléctrico
- Input Power
- 31.2 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MO – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 1.3 A @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
- Enclosure Material
- Aluminum, charcoal grey
- PCB Coating
- Yes
- Dimensions WxHxD
- 14.41 x 11.54 x 1.9 inches [366 x 293 x 48.2 mm]
- Panel Cutout (inches) [mm]
- 13.86 x 10.98 [352 x 279]
- Weight
- Approx. 5.73 lbs. [2.6 kg]
- Mounting
- Panel mount, VESA 75 x 75 mm
Ambiental
- Operating Temperature
- 32° ~ 122°F (0° ~ 50°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- CE UKCA
- Yes
- UL Type Rating
- UL Class 1 Div 2 / UL Type 4X (indoor use only)
- NEMA Rating
- NEMA4
- IP Rating
- IP66 Compliant Front Panel
- CE
- Yes
- UL
- cULus Listed
- Class 1 Div 2
- Yes
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT2158Xv2-CODESYS
- Línea
- Class 1 Div 2 HMIs · HMI + Remote I/O + CODESYS · Hardware Platform · CODESYS HMIs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
