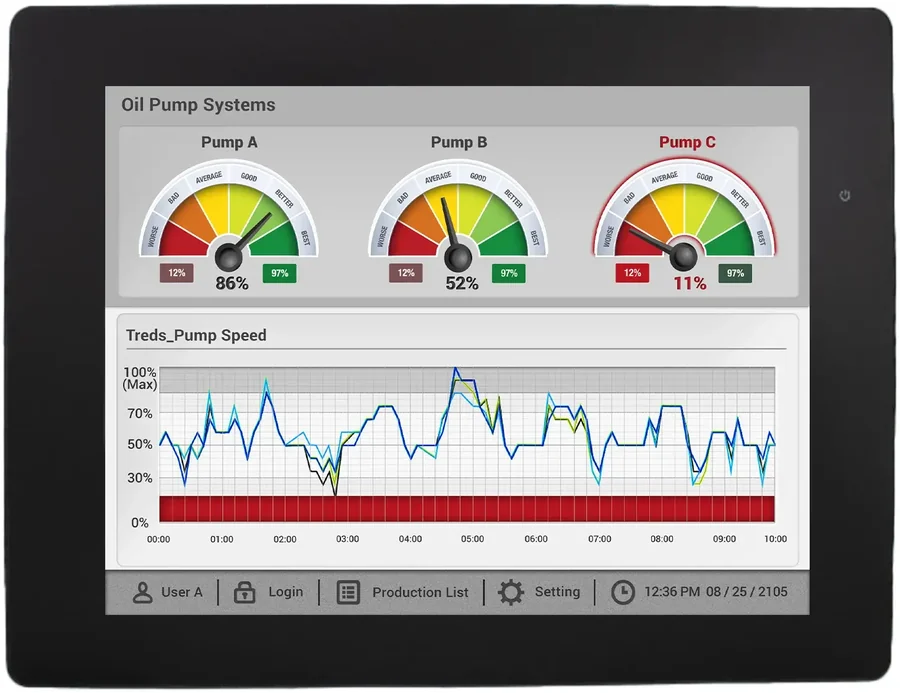

cMT2128X
12″ touch panel powered by a Quad-Core RISC processor, 4 GB flash memory, and 1 GB RAM. Ex12″ touch panel powered by a Quad-Core RISC processor, 4 GB flash memory, and 1 GB RAM. Experience seamless multitasking with the cMT2128X, as it effortlessly handles multiple tasks. Unlock the power of remote access , IIoT functionality , and an advanced feature set for your application. Enhance its capabilities by pairing with a remote IO and CODESYS license for soft PLC functionality.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- WVA LCD with 1024 x 768 Resolution
- Quad-Core RISC, 4 GB Flash Memory, 1 GB RAM
- 2 Ethernet, 1 USB, 2 Serial Ports
- MQTT , Sparkplug B , WebView , VNC
- Add an EasyAccess 2.0 license for remote access
- Pair with our remote IO for CODESYS functionality
- UNBRANDED
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 1 GB
- Memory (Flash)
- 4 GB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)
Puertos de E/S
- Ethernet/LAN
- 1 x 10/100 Base-T RJ-45, 1 x GbE RJ-45
- SD Card Slot
- 1 x Micro SD
- USB Host Ports
- USB 2.0 x 1
- COM Port
- 1 x DE9S COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wires / 1 x DE9P COM1: RS-232, COM3: RS-232
- RS-485 Dual Isolation
- Yes
- Serial Ports
- 2
Pantalla
- Display Size
- 12.1" WVA LCD
- Resolution
- 1024 X 768
- Luminance (cd/m^2)
- 600
- Contrast Ratio
- 1000:1
- Backlight Type
- LED
- Backlight Lifetime (hrs)
- 30,000+
- Colors
- 16.7 M
- Display Type
- 12.1” WVA LCD
- Viewing Angle (H°/V°)
- 178/178
- Size (W x H)
- 9.70 x 7.30 inches [246.5 x 185.3. mm]
Pantalla táctil
- Type
- 4-wire resistive touch
- Accuracy
- Length (X) ±2%, width (Y) ±2%
Eléctrico
- Input Power
- 28.8 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MΩ – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 1.2 A @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
- Enclosure Material
- Plastic, charcoal grey
- PCB Coating
- Yes
- Dimensions WxHxD
- 12.49 x 9.57 x 1.62 inches [317 x 243 x 41 mm]
- Panel Cutout (inches) [mm]
- 12.01 x 9.09 [305 x 231]
- Weight
- Approx. 3.75 lbs. [1.7 kg]
- Mounting
- Panel mount, VESA 75 x 75 mm
Ambiental
- Operating Temperature
- 32° ~ 131°F (0° ~ 55°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- CE UKCA
- Yes
- UL Type Rating
- UL Type 4X (indoor use only)
- NEMA Rating
- NEMA4
- IP Rating
- IP66 Compliant Front Panel
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT2128X
- Línea
- Human Machine Interface · HMI + Remote I/O + CODESYS · Hardware Platform
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
