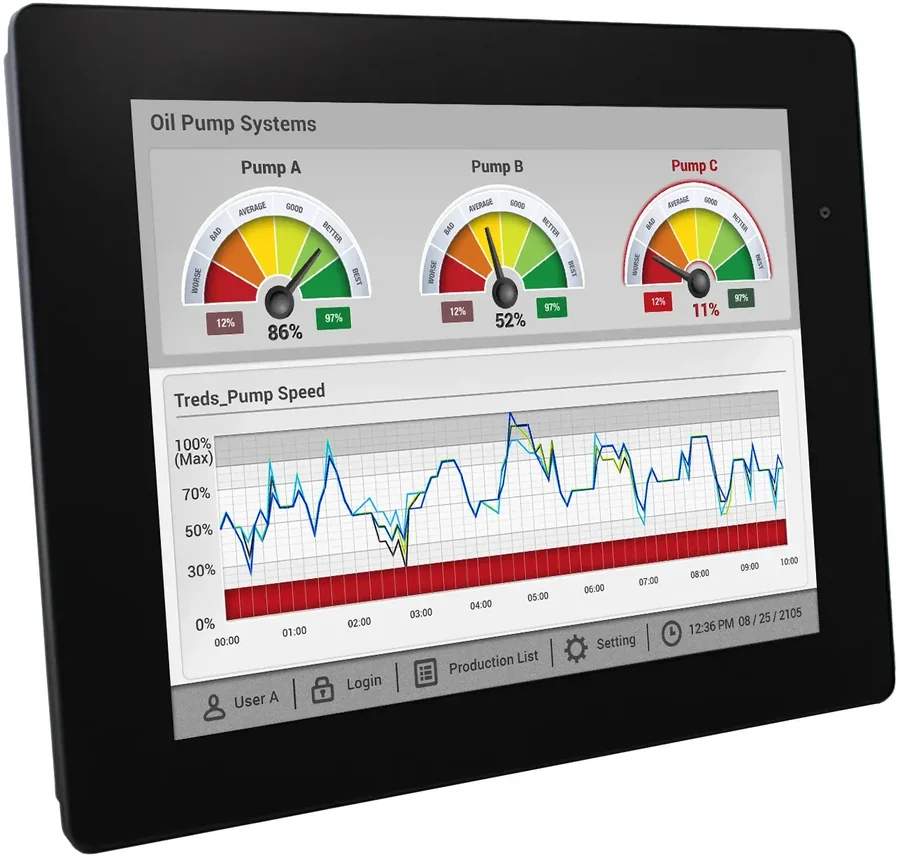

cMT2128X-CODESYS
Experience seamless multitasking with the cMT2128X, and activated CODESYS license, as it eExperience seamless multitasking with the cMT2128X, and activated CODESYS license, as it effortlessly handles multiple tasks. Unlock the power of remote access , IIoT functionality , and an advanced feature set for your application. Enhance its capabilities by pairing with our remote IO for soft PLC functionality.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Activated CODESYS license included
- WVA LCD with 1024 x 768 Resolution
- Quad-Core RISC, 4 GB Flash Memory, 1 GB RAM
- 2 Ethernet, 1 USB, 2 Serial Ports
- MQTT , Sparkplug B , WebView , VNC
- Add an EasyAccess 2.0 license for remote access
- Pair with our remote IO for soft PLC functionality
- UNBRANDED
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 1 GB
- Memory (Flash)
- 4 GB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)
Puertos de E/S
- Ethernet/LAN
- 1 x 10/100 Base-T RJ-45, 1 x GbE RJ-45
- SD Card Slot
- 1 x Micro SD
- USB Host Ports
- USB 2.0 x 1
- COM Port
- 1 x DE9S COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wires / 1 x DE9P COM1: RS-232, COM3: RS-232
- Serial Ports
- 2
Pantalla
- Display Size
- 12.1" WVA LCD
- Resolution
- 1024 X 768
- Luminance (cd/m^2)
- 600
- Contrast Ratio
- 1000:1
- Backlight Type
- LED
- Backlight Lifetime (hrs)
- 30,000+
- Colors
- 16.7 M
- Display Type
- 12.1” WVA LCD
- Viewing Angle (H°/V°)
- 178/178
- Size (W x H)
- 9.70 x 7.30 inches [246.5 x 185.3. mm]
Pantalla táctil
- Type
- 4-wire resistive touch
- Accuracy
- Length (X) ±2%, width (Y) ±2%
Eléctrico
- Input Power
- 28.8 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MO – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 1.2 A @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
- Enclosure Material
- Plastic, charcoal grey/silver
- PCB Coating
- Yes
- Dimensions WxHxD
- 12.49 x 9.57 x 1.62 inches [317 x 243 x 41 mm]
- Panel Cutout (inches) [mm]
- 12.01 x 9.09 [305 x 231]
- Weight
- Approx. 3.75 lbs. [1.7 kg]
- Mounting
- Panel mount, VESA 75 x 75 mm
Ambiental
- Operating Temperature
- 32° ~ 131°F (0° ~ 55°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- UL Type Rating
- UL Type 4X (indoor use only)
- NEMA Rating
- NEMA4
- IP Rating
- IP66 Compliant Front Panel
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT2128X-CODESYS
- Línea
- HMI + Remote I/O + CODESYS · CODESYS HMIs
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
