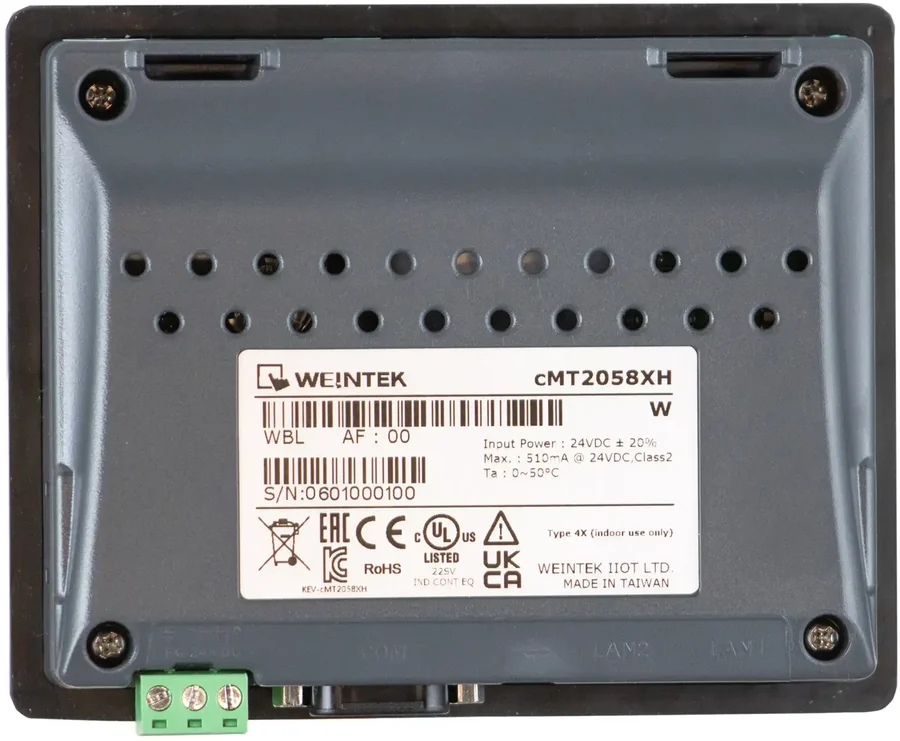

cMT2058XHW

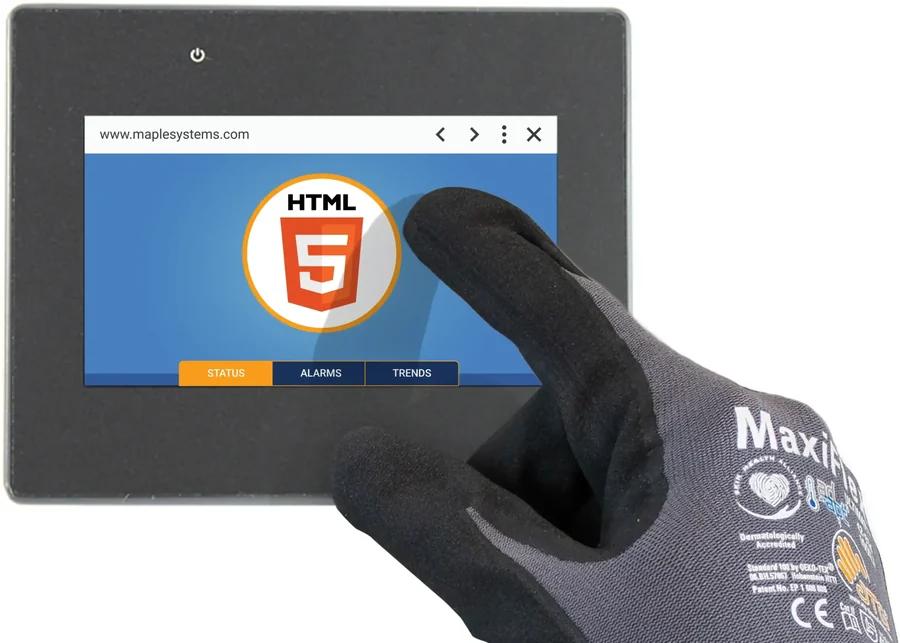

Our cMT2058XHW is equipped with a powerful quad-core CPU, 4GB Flash memory, and 1GB RAM, aOur cMT2058XHW is equipped with a powerful quad-core CPU, 4GB Flash memory, and 1GB RAM, and a PCB coating, enabling it to handle complex tasks with ease. Designed for endurance, this 4.3″ resistive touch Web HMI with Chromium Version 132 , a blank overlay , NEMA4 certified and has an IP66 rating, providing exceptional dust and water resistance, making it suitable for the most demanding industrial environments.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Built-in Chromium Browser Version 132
- Unbranded-Blank Overlay
- UL Listed, NEMA4 Rated
- IP66 Rated for Washdown Environments
- 800 x 480 Pixel Resolution
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (eMMC)
- 4GB
- Memory (RAM)
- 1 GB
Puertos de E/S
- Ethernet/LAN
- LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1
- USB Host Ports
- USB 2.0 x 1 (Type A)
Pantalla
- Resolution
- 800 x 480
- Luminance (cd/m^2)
- 530
- Colors
- 16.7 M
- Display Type
- 4.3" WVA
- Size (W x H)
- 3.74 x 2.13 inches [95 x 54 mm]
Pantalla táctil
- Type
- 4-wire resistive touch
Eléctrico
- Input Power
- 12.2 W
- Power Isolation
- Built-in
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 510 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
- Enclosure Material
- Plastic, charcoal grey
- PCB Coating
- Yes
- Dimensions WxHxD
- 5.04 x 4.02 x 1.26 inches [128 x 102 x 32 mm]
- Panel Cutout (inches) [mm]
- 4.69 x 3.66 [119 x 93]
- Weight
- Approx. 0.6 lbs. [0.27 kg]
- Mounting
- Panel mount
- Shock (Operation)
- 25 g acceleration for 11 ms
Ambiental
- Operating Temperature
- 32° ~ 122°F (0° ~ 50°C)
- Storage Temperature
- -4~140°F [-20~60°C]
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- UL Type Rating
- UL Type 4X (indoor use only)
- NEMA Rating
- NEMA 4
- IP Rating
- IP66 Compliant Front Panel
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT2058XHW
- Línea
- Web HMIs
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
