cMT2058XH-CODESYS
The cMT2058XH with activated CODESYS license is a powerful HMI with dual Ethernet, remote The cMT2058XH with activated CODESYS license is a powerful HMI with dual Ethernet, remote access , and IIoT functionality . Pair this operator interface with our remote IO and CODESYS license for soft PLC functionality. Try Before You Buy: Follow along to learn how EBPro, our 100% free HMI configuration software, allows you to develop and simulate your HMI program entirely free of charge.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- TFT LCD with 800 x 480 Pixel Resolution
- Quad-Core RISC CPU

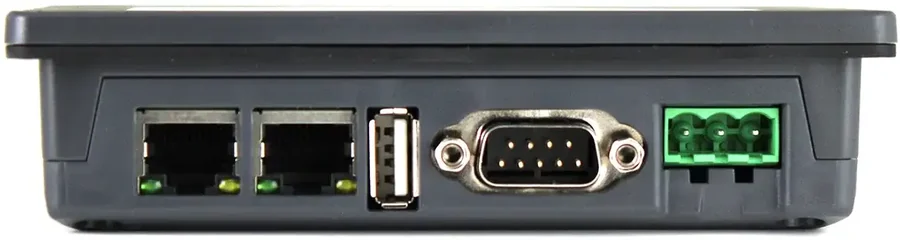

- 2 Ethernet, 1 USB, 2 Serial Ports
- MQTT , Sparkplug B , WebView , VNC
- Add an EasyAccess2.0 license for remote access
- Pair with our remote IO for CODESYS functionality
- UNBRANDED
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 1 GB
- Memory (Flash)
- 4 GB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)
Puertos de E/S
- Ethernet/LAN
- 1 x 10/100 Base-T RJ-45, 1 x GbE RJ-45
- USB Host Ports
- USB 2.0 x 1
- COM Port
- 1 x DE9P COM1: RS-232/RS-485 2 or 4 wire, COM 3: RS-485 2 wires
- Serial Ports
- 1
Pantalla
- Display Size
- 4.3" WVA LCD
- Resolution
- 800 x 480
- Luminance (cd/m^2)
- 530
- Contrast Ratio
- 800:1
- Backlight Type
- LED
- Backlight Lifetime (hrs)
- 30,000+
- Colors
- 16.7 M
- Display Type
- 4.3" WVA
- Viewing Angle (H°/V°)
- 160/160
- Size (W x H)
- 3.74 x 2.13 inches [95 x 54 mm]
Pantalla táctil
- Type
- 4-wire resistive touch
- Accuracy
- Length (x)±2%, Width(y)±2%
Eléctrico
- Input Power
- 12.2 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MO – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 510 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
- Enclosure Material
- Plastic, charcoal grey
- PCB Coating
- Yes
- Dimensions WxHxD
- 5.04 x 4.02 x 1.26 inches [128 x 102 x 32 mm]
- Panel Cutout (inches) [mm]
- 4.69 x 3.66 [119 x 93]
- Weight
- Approx. 0.6 lbs. [0.27 kg]
- Mounting
- Panel mount
Ambiental
- Operating Temperature
- 32° ~ 122°F (0° ~ 50°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- CE UKCA
- Yes
- UL Type Rating
- UL Type 4X (indoor use only)
- NEMA Rating
- NEMA4
- IP Rating
- IP66 Compliant Front Panel
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT2058XH-CODESYS
- Línea
- HMI + Remote I/O + CODESYS · Hardware Platform · CODESYS HMIs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
