cMT-SVRX-822-CODESYS
With its quad-core CPU, the cMT-SVRX-822 allows 2 cores to run a CODESYS application for sWith its quad-core CPU, the cMT-SVRX-822 allows 2 cores to run a CODESYS application for soft PLC functionality, and the other 2 cores to run your HMI application. Monitor PLC operations, gather data, and remotely access your control system via the cMT Viewer App on your smart phone, tablet, laptop, or PC. CODESYS and EasyAccess 2.0 licenses (included). If a display is needed, pair with our HTML5 Web HMIs .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.

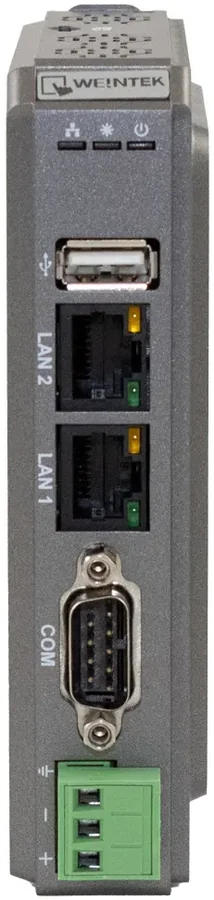

- 2 Ethernet, 1 USB, 1 Serial
- Quad-core RISC CPU
- 1GB RAM, 4GB Flash
- MQTT , OPCUA , SQL , Remote Access
- Supports display on Tablets and PC
- EasyAccess2.0 and CODESYS included
- DIN Rail Mount
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 1 GB
- Memory (Flash)
- 4 GB
- RTC
- Built-in
- Programming Software
- EasyBuilder Pro V4.10.05 or later versions
Puertos de E/S
- Ethernet/LAN
- LAN 1: 10/100 Base-T RJ-45 LAN 2: GbE RJ-45
- SD Card Slot
- SD/SDHC (32GB capacity)
- USB Host Ports
- USB 2.0 x 1
- Serial Ports
- 3
Eléctrico
- Input Power
- 20.4 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MO – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 850 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
- Enclosure Material
- Plastic, charcoal grey
- PCB Coating
- Yes
- Dimensions WxHxD
- 1.17 x 5.11 x 4.52 inches [29.8 x 130 x 115 mm]
- Weight
- Approx. 0.53 lbs. [0.24 kg]
- Mounting
- 35 mm DIN Rail
Ambiental
- Operating Temperature
- 32 ~ 122°F (0 ~ 50°C)
- Storage Temperature
- -4 ~ 140°F (-20 ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- UL Type Rating
- cULus
- IP Rating
- IP20
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT-SVRX-822-CODESYS
- Línea
- HMI + Remote I/O + CODESYS · CODESYS HMIs
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
