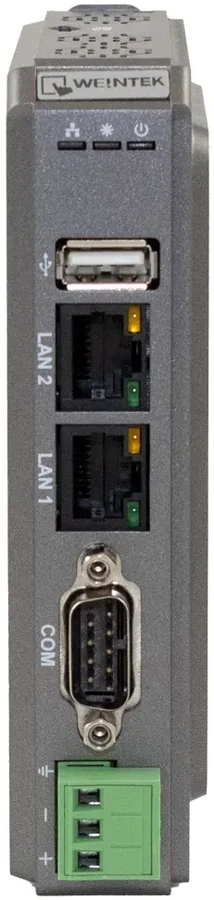

cMT-SVRX-820
Monitor PLC operations, gather data, and remotely access your control system via the cMT VMonitor PLC operations, gather data, and remotely access your control system via the cMT Viewer App on your smart phone , tablet, laptop , or PC. If you’d like a local device for viewing, try our cMT iV Series secondary display units with built-in cMT Viewer or our Web HMI Series . Add an EasyAccess2.0 license for additional remote capabilities.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 2 Ethernet, 1 USB, 1 Serial
- Quad-core RISC CPU
- 1GB RAM, 4GB Flash
- MQTT , OPCUA , SQL , Remote Access
- Supports display on a tablet, laptop, smartphone, PC, cMT iV Series , and Web HMI
- Optional CODESYS with Soft PLC Functionality
- DIN Rail Mount
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 1 GB
- Memory (Flash)
- 4 GB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)
Puertos de E/S
- Ethernet/LAN
- LAN 1: 10/100 Base-T RJ-45 LAN 2: GbE RJ-45
- SD Card Slot
- SD/SDHC (32GB capacity)
- USB Host Ports
- USB 2.0 x 1
- COM Port
- 1 x DE9P COM1: RS-232, COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wire
- Serial Ports
- 3
Eléctrico
- Input Power
- 20.4 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MΩ – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 850 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
- Enclosure Material
- Plastic, charcoal grey
- PCB Coating
- Yes
- Dimensions WxHxD
- 1.17 x 5.11 x 4.52 inches [29.8 x 130 x 115 mm]
- Weight
- Approx. 0.53 lbs. [0.24 kg]
- Mounting
- 35 mm DIN Rail
Ambiental
- Operating Temperature
- 32 ~ 122°F (0 ~ 50°C)
- Storage Temperature
- -4 ~ 140°F (-20 ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- UL Type Rating
- cULus
- IP Rating
- IP20
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT-SVRX-820
- Línea
- Human Machine Interface · Headless HMIs · HMI + Remote I/O + CODESYS · Hardware Platform
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
