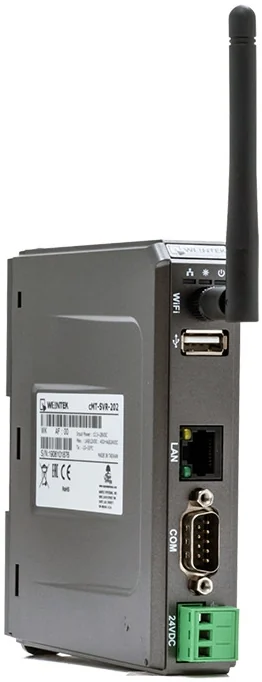

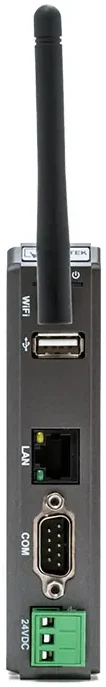

cMT-SVR-202
The cMT-SVR-202 is a Wi-Fi enabled HMI, with an activated EasyAccess2.0 license for additiThe cMT-SVR-202 is a Wi-Fi enabled HMI, with an activated EasyAccess2.0 license for additional remote capabilities. Monitor PLC Operations, gather PLC data, and remotely access your control system via the FREE cMT Viewer App on your smart phone , tablet , laptop , or PC . I f you’d like a local device for viewing, try our cMT iV Series secondary display units with built-in cMT Viewer.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1 Ethernet Port, 1 USB Port, 1 Serial Port
- Quad-core RISC CPU
- 256 MB Flash, 256 MB RAM
- WI-FI Compatible
- Supports display on a tablet, laptop, smartphone, PC, or cMT iV Series
- EasyAccess 2.0 Installed
- DIN Rail Mount
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 256 MB
- Memory (Flash)
- 256 MB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)
Puertos de E/S
- Ethernet/LAN
- 10/100/1000 Base-T x 1
- SD Card Slot
- SD/SDHC (32GB capacity)
- USB Host Ports
- USB 2.0 x 1
- Wi-Fi
- Yes
- COM Port
- 1 x DE9P COM1: RS-232, COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wire
- Serial Ports
- 3
Eléctrico
- Input Power
- 10.8 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MΩ – @ 500 VDC
- Input Voltage
- 10.5 ~ 28 VDC
- Input Current
- 1000 mA @ 12 VDC;450 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
- Enclosure Material
- Plastic, charcoal grey
- PCB Coating
- Yes
- Dimensions WxHxD
- 5.12 x 4.53 x 1.06 inches [130 x 115 x 27 mm]
- Weight
- Approx. 0.40 lbs. [0.18 kg]
- Mounting
- 35 mm DIN Rail
Ambiental
- Operating Temperature
- 14° ~ 131°F (-10° ~ 55°C)
- Storage Temperature
- -4° ~ 158°F (-20° ~ 70°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- UL Type Rating
- cULus
- IP Rating
- IP20
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT-SVR-202
- Línea
- Human Machine Interface · Headless HMIs · Wi-Fi Enabled HMIs
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
