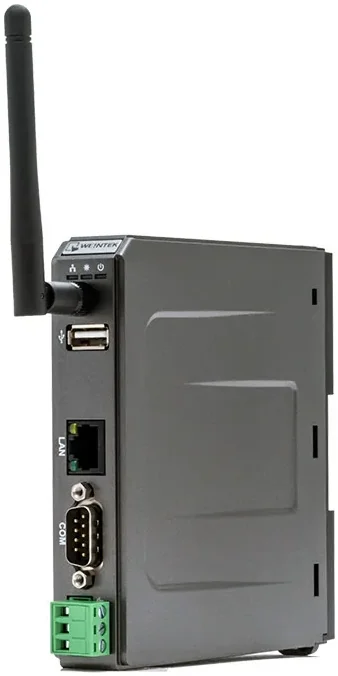

cMT-SVR-200v2
The cMT-SVR-200v2 is a Wi-Fi enabled HMI, great for applications requiring straight-forwarThe cMT-SVR-200v2 is a Wi-Fi enabled HMI, great for applications requiring straight-forward HMI functionality without a touchscreen. Monitor PLC Operations, gather PLC data, and remotely access your control system via the FREE cMT Viewer App on your smart phone , tablet , laptop , or PC . If you’d like a local device for viewing, try our cMT IV Series secondary display units with built-in cMT Viewer.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1 Ethernet Port, 1 USB Port, 1 Serial Port
- 256 MB Flash, 256 MB RAM
- WI-FI Compatible
- Supports display on a tablet, laptop, smartphone, PC, or cMT iV Series
- DIN Rail Mount
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 256 MB
- Memory (Flash)
- 256 MB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)
Puertos de E/S
- Ethernet/LAN
- 10/100 Base-T x 1
- SD Card Slot
- 1 x Micro SD
- USB Host Ports
- USB 2.0 x 1
- Wi-Fi
- Yes
- COM Port
- 1 x DE9P COM1: RS-232, COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wire
- Serial Ports
- 3
Eléctrico
- Input Power
- 10.8 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MΩ – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 450 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
- Enclosure Material
- Plastic, charcoal grey
- PCB Coating
- Yes
- Dimensions WxHxD
- 5.12 x 4.53 x 1.06 inches [130 x 115 x 27 mm]
- Weight
- Approx. 0.40 lbs. [0.18 kg]
- Mounting
- 35 mm DIN Rail
Ambiental
- Operating Temperature
- -4° ~ 131°F (-20° ~ 55°C)
- Storage Temperature
- -4° ~ 158°F (-20° ~ 70°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- UL Type Rating
- cULus
- IP Rating
- IP20
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT-SVR-200v2
- Línea
- Human Machine Interface · Headless HMIs · Wi-Fi Enabled HMIs
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
