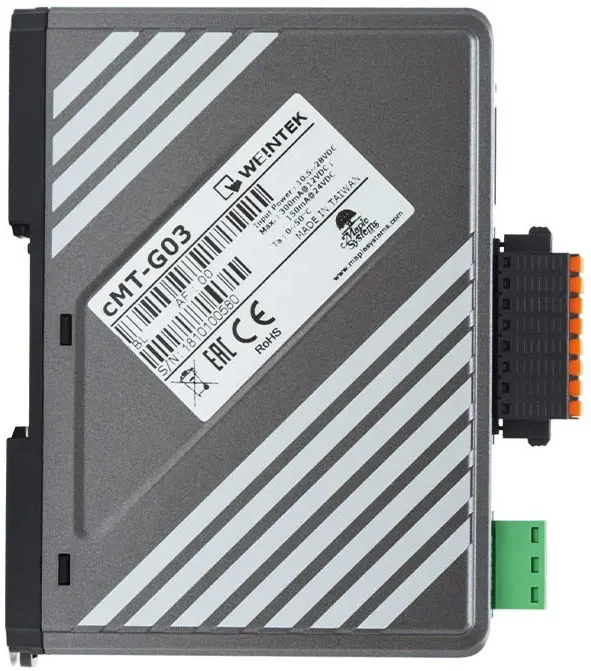

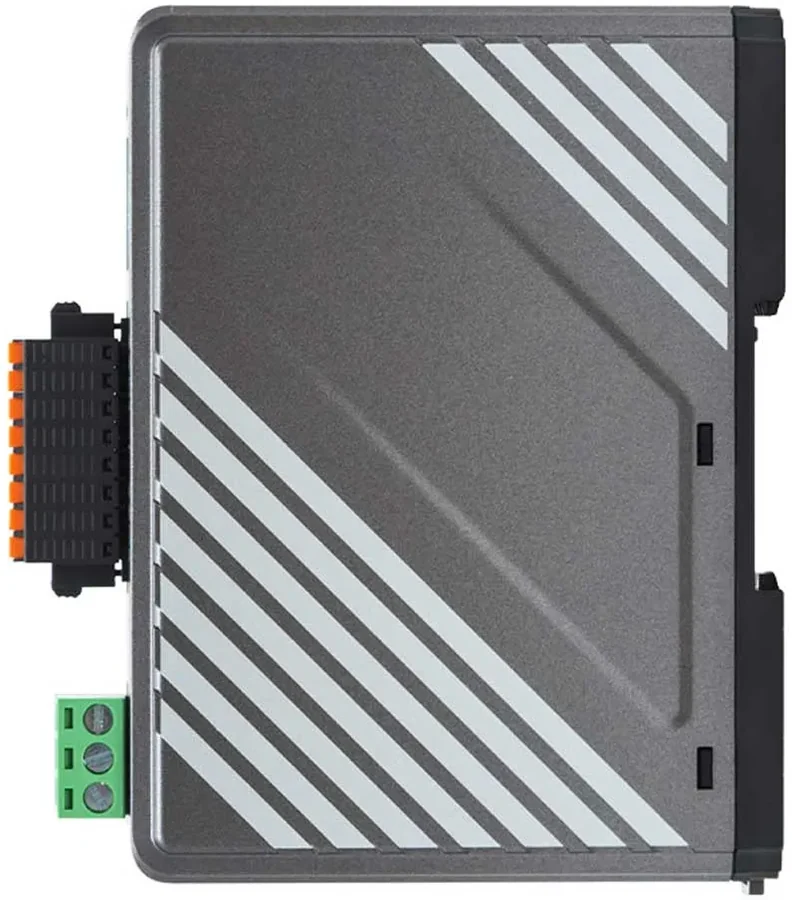

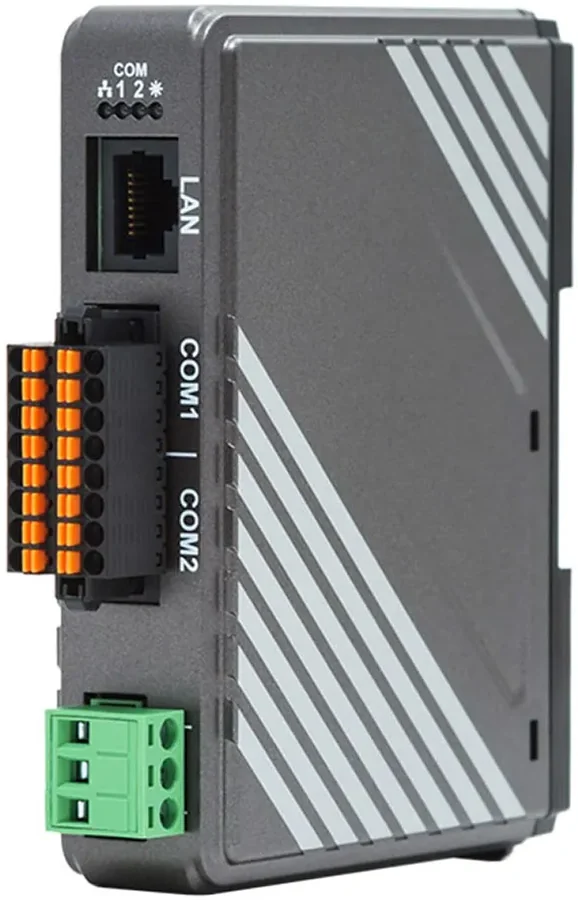

cMT-G03
Use this IIoT Gateway with a serial bridge to upgrade your serial-based controller and touUse this IIoT Gateway with a serial bridge to upgrade your serial-based controller and touch panel without the need for modifying the PLC or HMI projects. Transmit data from your factory floor securely into your SCADA or ERP system with ease.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- ARM RISC 528 MHz CPU
- 256 MB Flash, 256 MB RAM
- Supports OPC UA
- Supports MQTT
- Supports MODBUS TCP/IP Gateway
- DIN Rail Mount
Sistema
- CPU
- 32-bit RISC 528MHz
- RTC
- Built-in
Puertos de E/S
- Serial Ports
- 2
Pantalla
- Luminance (cd/m^2)
- 1000 / 350 / 300
Eléctrico
- Input Power
- 3.6 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MO – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 300 mA @ 12 VDC; 150 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25Hz(X, Y, Z direction 2G 30 minutes)
- Enclosure Material
- Plastic
- Dimensions WxHxD
- 4.29 x 3.19 x 1.06 inches [109 x 81 x 27 mm]
- Weight
- Approx. 0.31 lbs. [0.14 kg]
- Mounting
- 35 mm DIN Rail
Ambiental
- Operating Temperature
- 32° ~ 122°F (0° ~ 50°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- IP Rating
- IP20
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT-G03
- Línea
- Communication Gateways
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
