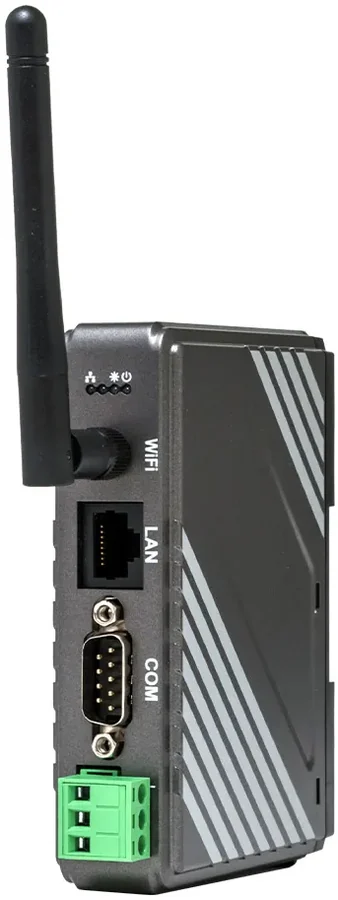

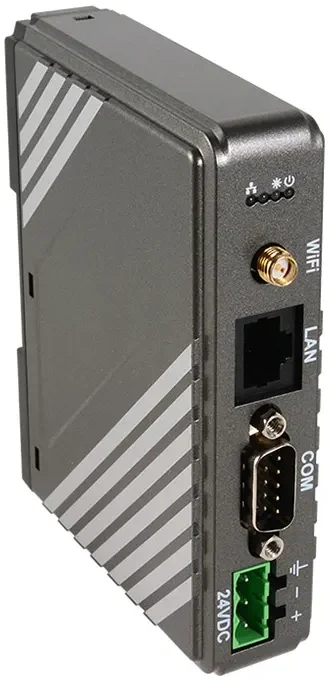

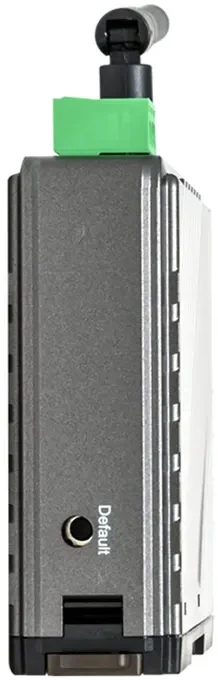

cMT-G02
This IIoT Communication Gateway with HMI data processing capabilities can communicate withThis IIoT Communication Gateway with HMI data processing capabilities can communicate with more than 400 different controllers and then transmit all the data from the controllers to the SCADA or ERP system . Unique to the cMT-G02 is built in Wi-Fi 802.11b/g/n support with strong resistance to interference. The detachable antenna can be replaced with third party antennas suitable for the environment.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 32-Bit RISC Cortex-A8 600 MHz CPU
- 256 MB Flash, 256 MB RAM
- Supports OPC UA and SQL
- Supports MQTT
- Supports MODBUS TCP/IP Gateway
- Wi-Fi Functionality
- DIN Rail Mount
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- 32-bit RISC 600MHz
- Memory (RAM)
- 256 MB
- Memory (Flash)
- 256 MB
- RTC
- Built-in
- Programming Software
- EasyBuilder Pro V6.00.01 or later versions
Puertos de E/S
- Ethernet/LAN
- 10/100 Base-T x 1
- Wi-Fi
- Yes
- Serial Ports
- 1
Eléctrico
- Input Power
- 2.76 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MO – @ 500 VDC
- Input Voltage
- 10.5 ~ 28 VDC
- Input Current
- 230 mA @ 12 VDC;115 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25Hz(X, Y, Z direction 2G 30 minutes)
- Enclosure Material
- Plastic
- PCB Coating
- Yes
- Dimensions WxHxD
- 4.29 x 3.19 x 1.06 inches [109 x 81 x 27 mm]
- Weight
- Approx. 0.31 lbs. [0.14 kg]
- Mounting
- 35 mm DIN Rail
Ambiental
- Operating Temperature
- 32° ~ 122°F (0° ~ 50°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- IP Rating
- IP20
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT-G02
- Línea
- Communication Gateways
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
