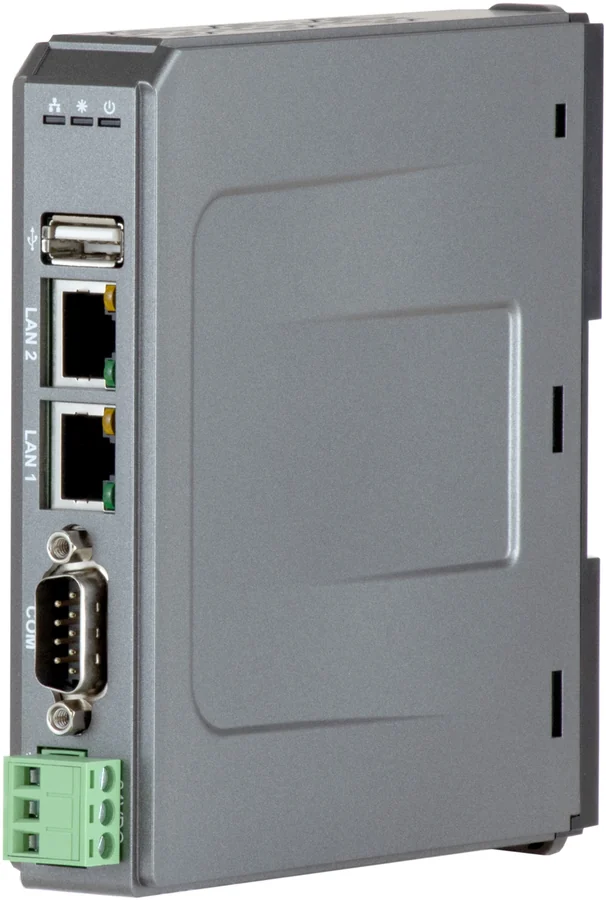

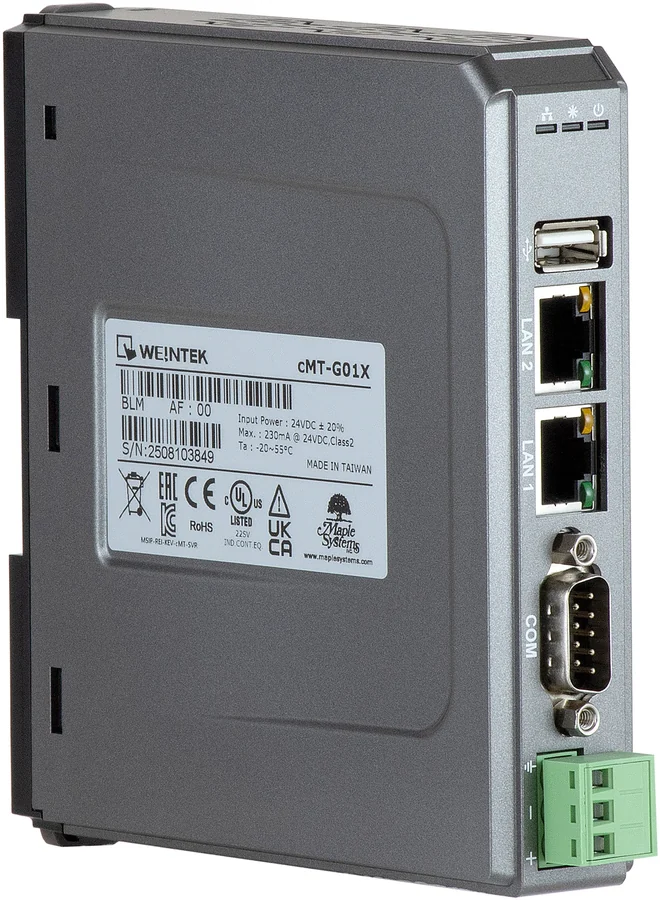

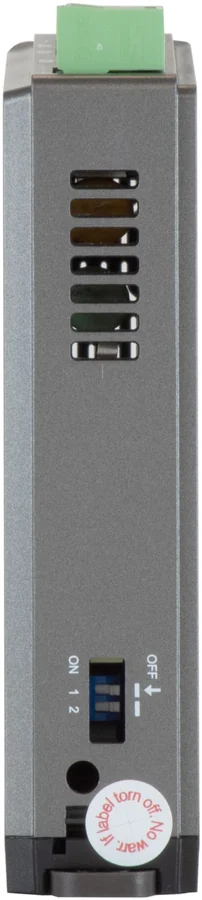

cMT-G01X
Equipped with features designed to connect legacy machinery to the Industrial Internet of Equipped with features designed to connect legacy machinery to the Industrial Internet of Things, our cMT-G01X is the perfect solution for modernizing your industrial network . This IIoT Communication Gateway with HMI data processing capabilities can communicate with more than 400 different controllers and then transmit all that data from the controllers to your SCADA or ERP system.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 256 MB Flash, 256 MB RAM
- Supports OPC UA & SQL
- Supports MQTT
- Supports MODBUS TCP/IP Gateway
- DIN Rail Mount
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 256 MB
- Memory (Flash)
- 256 MB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)
Puertos de E/S
- Ethernet/LAN
- 10/100 Base-T x 2
- USB Host Ports
- USB 2.0 x 1
- Serial Ports
- 1
Eléctrico
- Input Power
- 5.52 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MΩ – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 230 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25Hz(X, Y, Z direction 2G 30 minutes)
- Enclosure Material
- Plastic
- PCB Coating
- Yes
- Dimensions WxHxD
- 5.12 x 4.53 x 1.06 inches [130 x 115 x 27 mm]
- Weight
- Approx. 0.40 lbs. [0.18 kg]
- Mounting
- 35 mm DIN Rail
Ambiental
- Operating Temperature
- -4° ~ 131°F (-20° ~ 55°C)
- Storage Temperature
- -4° ~ 158°F (-20° ~ 70°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- IP Rating
- IP20
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT-G01X
- Línea
- Communication Gateways
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
