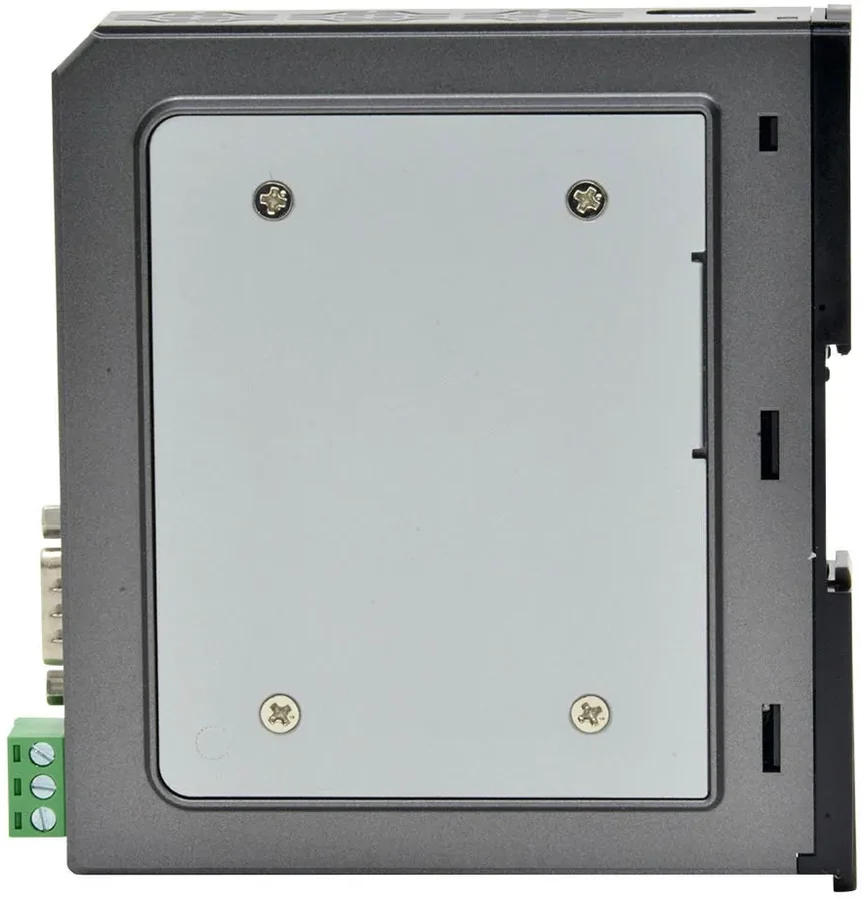

cMT-FHDX-820-CODESYS
This HDMI ® -enabled unit works with screens of any size, making screen size no longer a lThis HDMI ® -enabled unit works with screens of any size, making screen size no longer a limitation in your application. The cMT-FHDX-820 with activated CODESYS license has all the rich HMI functionality found in our high-performance HMIs without the touchscreen display. Pair with our Remote I/O for Soft PLC functionality.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Full HD 1080P High Resolution Video Output
- Control & Monitor from any Browser via Webview
- MQTT , OPC-UA Client/Server , SQL Integration
- EasyAccess2.0 supported, CODESYS ® activated
- Create an Andon or Status Display Station , or pair with our Industrial Monitors
- DIN Rail Mount
- Add Remote I/O for Soft PLC Functionality
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Quad-Core RISC
- Memory (RAM)
- 1 GB
- Memory (Flash)
- 4 GB
- RTC
- Built-in
- Programming Software
- EBPro (Latest Version)
Puertos de E/S
- Ethernet/LAN
- LAN 1: 10/100/1000 Base-T x 1; LAN 2: 10/100 Base-T x 1
- Audio Output
- HDMI Audio Output
- SD Card Slot
- 1 x Micro SD
- USB Host Ports
- USB 2.0 x 1
- HDMI Port
- Yes
- Serial Ports
- 1
Eléctrico
- Input Power
- 20.4 W
- Power Isolation
- Built-in
- Isolation Resistance
- Exceed 50 MO – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 850 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
- Enclosure Material
- Plastic, charcoal grey
- PCB Coating
- Yes
- Dimensions WxHxD
- 5.12 x 4.53 x 1.17 inches [130 x 115 x 29.8 mm]
- Weight
- Approx. 0.53 lbs. [0.24 kg]
- Mounting
- 35 mm DIN Rail
Ambiental
- Operating Temperature
- 32° ~ 122°F (0° ~ 50°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
Certificaciones
- UL Type Rating
- cULus
- IP Rating
- IP20
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT-FHDX-820-CODESYS
- Línea
- HMI + Remote I/O + CODESYS · Hardware Platform · CODESYS HMIs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
