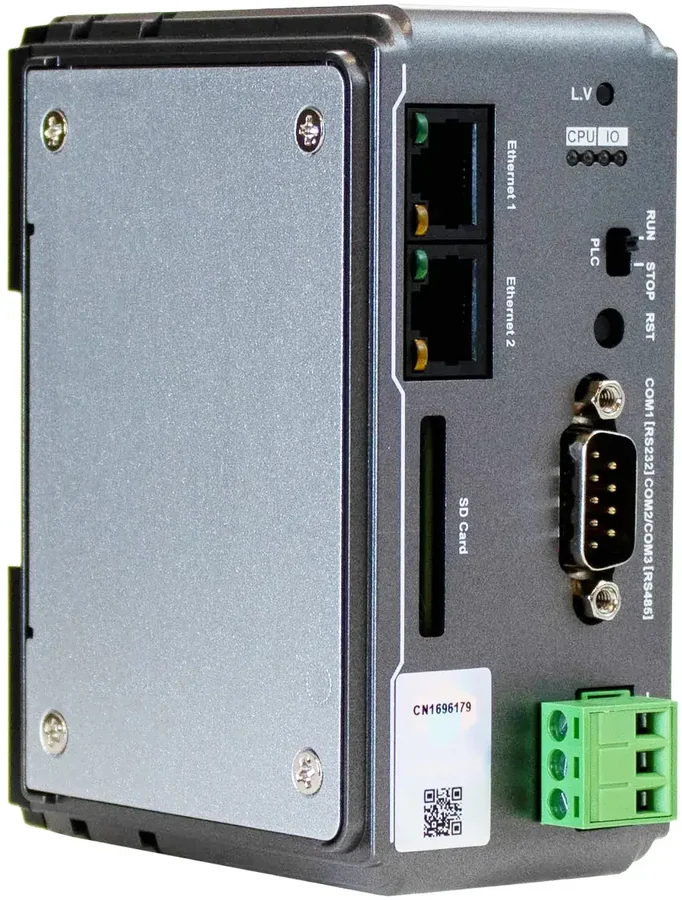

cMT-CTRL01
This PLC base unit has the ability to add up to sixteen I/O expansion modules, utilizes thThis PLC base unit has the ability to add up to sixteen I/O expansion modules, utilizes the very powerful CODESYS programming software platform, which is built-in. It works with our free EBPro configuration software which allows you to program your entire control solution in one integrated development environment (IDE) when paired with one our HMIs.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Support for up to 16 I/O Expansion Modules
- Compliant with IEC61131-3 Programming
- Multi-Core Processor Devotes CPU Resources to Dedicated Control Logics
- 4 GB Flash, 512 MB RAM Memory
- 35mm DIN Rail Mount, Expandable I/O Modules (iR series)
- MQTT , OPC-UA , MODBUS TCP/IP Gateway Support
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Dual-Core 32-bit RISC 1 GHZ
- RTC
- Built-in
Puertos de E/S
- Ethernet/LAN
- 1 x GbE RJ-45; 1 x 10/100 Base-T RJ-45
- SD Card Slot
- 1x Secure Digital Memory Card (SD/SDHC) socket, 32GB capacity
- Local bus
- iBus
- Serial Ports
- 1 x DE9P COM1: RS-232 2 wire, COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wire
Eléctrico
- Input Power
- 7.44 W
- Power Isolation
- Built-in
- Current for Internal Bus
- Max. 2 A @ 5 VDC
- Current Consumption
- 550mA @ 5 VDC
- Voltage Resistance
- 500 VAC (1 min.)
- Isolation Resistance
- Exceed 50 MΩ – @ 500 VDC
- Input Voltage
- 24 ± 20% VDC
- Input Current
- 310 mA @ 24 VDC (nominal)
Mecánico
- Enclosure Material
- Plastic, charcoal grey
- PCB Coating
- Yes
- Dimensions WxHxD
- 4.29 x 3.19 x 1.97 inches [109 x 81 x 50 mm]
- Weight
- Approx. 0.53 lbs. [0.24 kg]
- Mounting
- 35 mm DIN Rail
Ambiental
- Operating Temperature
- 14° ~ 122°F (-10° ~ 50°C)
- Storage Temperature
- -4° ~ 158°F (-20° ~ 70°C)
- Relative Humidity
- 10% ~ 90% (non-condensing)
- Vibration Endurance
- 10 to 25 Hz (X, Y, Z direction, 2G, 30 minutes)
Certificaciones
- IP Rating
- IP20
- Approvals
- cULus, CE, RoHS
Memory
- Flash
- 4 GB
- RAM
- 512 MB
- Data, Memory, Code
- 3 MB
- Retain Area
- 16 KB (every Minute, Kept after power cycle)
- Persistent Area
- 16 KB (every Minute, Kept after download)
- File System
- 8 MB
Datos del producto
- Marca
- Maple Systems
- Número de parte
- cMT-CTRL01
- Línea
- Couplers · CODESYS HMIs
- Categoría
- Redes industriales
- Precio y entrega
- Por cotización
