WP4101A

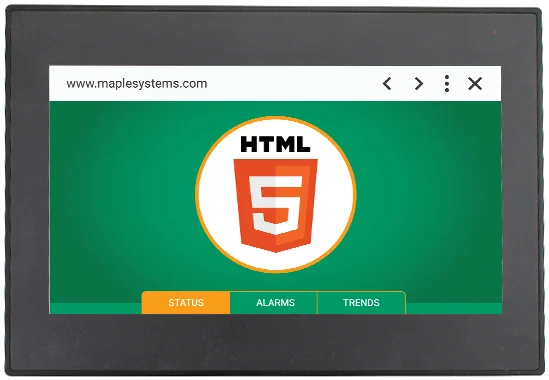

Our HTML5 powered, Class I Division 2 rated Web HMI comes with a built-in Chromium BrowserOur HTML5 powered, Class I Division 2 rated Web HMI comes with a built-in Chromium Browser, Resistive Touch Screen, and an IP66 rating for washdown environments. Easily pair with our Industrial Embedded Box PCs or our Headless HMIs . Because there is no need for project conversion or re-engineering, our Web HMIs are the perfect interface for enhanced productivity and efficiency.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 2x ARM Cortex-A9 CPUs
- Built-in Chromium Browser Version 75
- Resistive Touchscreen Technology
- UL Class 1 Division 2 Hazardous Location Rated
- IP66 Rated for Washdown Environments
- 1024 x 600 Pixel Resolution
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Dual ARM Cortex-A9, up to 1GHz with GPU 2D/3D support
- Memory (eMMC)
- 4GB
- Memory (RAM)
- 1 GB
Puertos de E/S

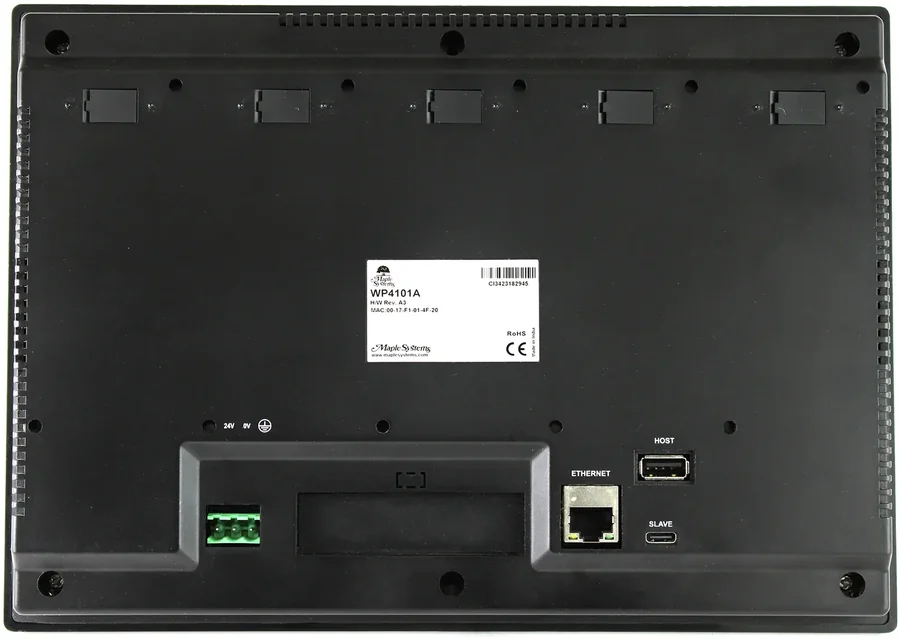

- Ethernet/LAN
- 1 x 10/100 Mbps RJ45
- USB Host Ports
- USB 2.0 x 1 (Type A)
- USB Client Ports
- USB 2.0 x 1 (Type C)
Pantalla
- Resolution
- 1024 x 600
- Luminance (cd/m^2)
- 350
- Colors
- 16 M
- Display Type
- 10.1" WSVGA TFT
- Size (W x H)
- 8.74" x 5.24" [222 x 133 mm]
Pantalla táctil
- Type
- 4-wire resistive touch
Eléctrico
- Input Power
- 8.4 W
- Input Voltage
- 24 VDC (±15%)
- Input Current
- 350 mA @ 24 VDC
Mecánico
- Vibration Endurance
- 5 to 150Hz (X, Y, Z direction 3G peak)
- Enclosure Material
- Black Plastic
- Dimensions WxHxD
- 10.55 x 7.48 x 1.3 [268mm x 190mm x 33mm]
- Panel Cutout (inches) [mm]
- 10.08 x 7.00 [256 x 178]
- Weight
- Approx. 1.98 lbs. [0.9 kg]
- Mounting
- Panel mount
- Shock (Operation)
- 25 g acceleration for 11 ms
Ambiental
- Operating Temperature
- 32 ~ 122°F (0 ~ 50°C)
- Storage Temperature
- -4° ~ 185°F (-20° ~ 85°C)
- Relative Humidity
- 10% ~ 95% (non-condensing)
Certificaciones
- UL Type Rating
- UL Class 1 Div 2
- IP Rating
- IP66 Compliant Front Panel
- CE
- Yes
- UL
- cULus Listed
- Class 1 Div 2
- Yes
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- WP4101A
- Línea
- Web HMIs
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
