TL160P2F-1

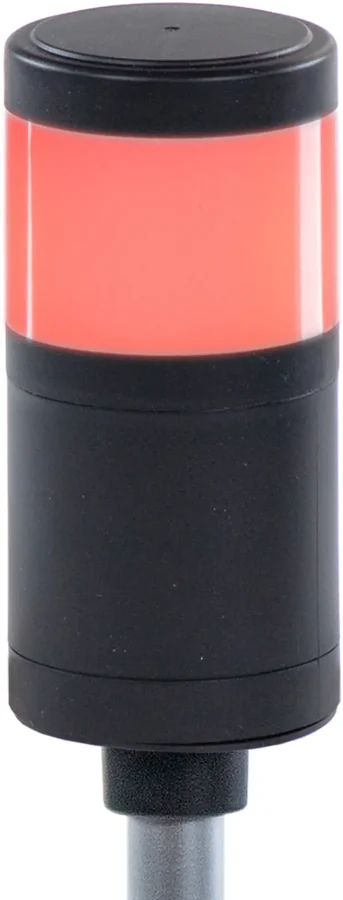

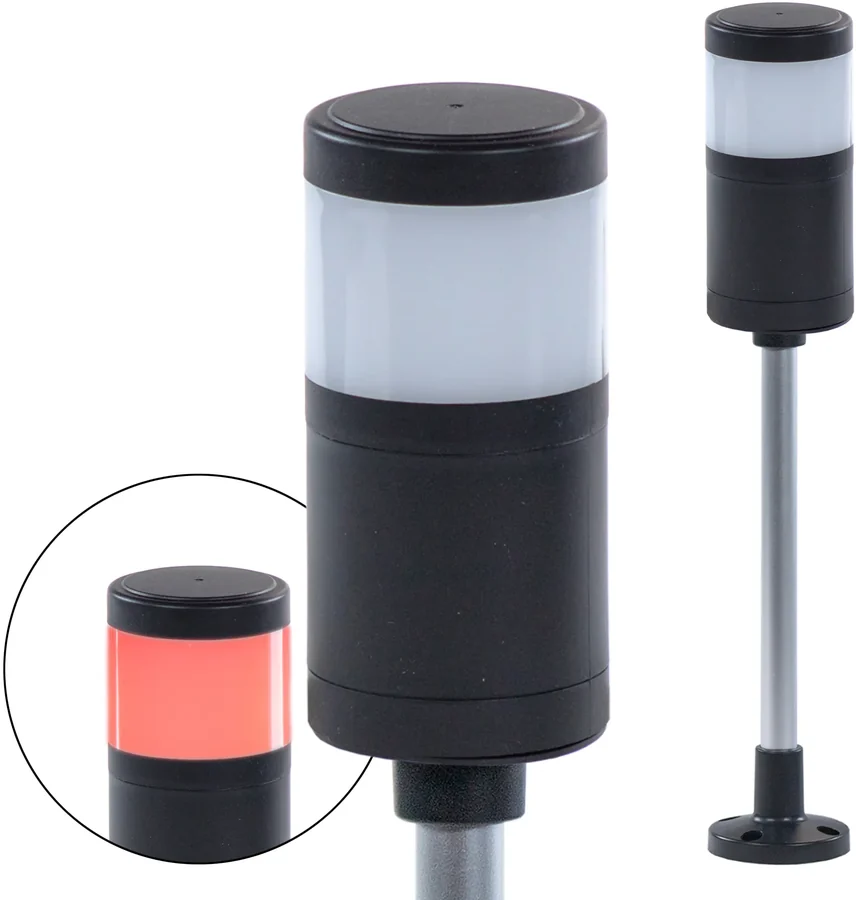

Designed for reliability and flexibility in demanding industrial environments, this 1-tierDesigned for reliability and flexibility in demanding industrial environments, this 1-tier, red pole-mounted tower light delivers clear, highly visible signaling in a compact, modular form. Built with durable industrial grade materials, it performs consistently across a wide temperature range, making it ideal for factory floors, automation systems, and even outdoor applications.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Pole Mount, optional mounting brackets, hardware, and pole lengths
- Steady and Flashing Modes
- Extended Temperature Range
- cULus, CE, RoHS, IP65
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Optical
- Light Source
- LED
- Lens
- Opal Polycarbonate
- Layers
- 1
- Light Color
- Red
Signaling
- Steady Light
- Steady/Solid
- Flashing Light
- 60-80/min
Eléctrico
- Input Voltage
- 24 VDC
- Input Current w/out Buzzer
- 70mA
- Connection
- Flying Leads: 15.75" [400mm]
Mecánico
- Weight
- ~ 0.90 lbs [0.41 kg]
- Mounting
- 2 x M18 Hex Nut, 1 x M18 Washer, 1 x M18 Split Lock Washer Learn More Mounting: 2 x M18 Hex Nut, 1 x M18 Washer, 1 x M18 Split Lock Washer Included with each tower light
- Construction
- ABS Housing, Polycarbonate Lens, Aluminum Pole
- Pole
- Aluminum, Ø0.71” x 9.84” [Ø18 x 250mm] Learn More Pole: Aluminum, Ø0.71” x 9.84” [Ø18 x 250mm] Multiple pole lengths available in various sizes ranging from 3" up to 40".
- Dimensions w/out Buzzer
- Ø2.36 x 13.54" [Ø60 x 352mm] Learn More Dimensions w/out Buzzer: Ø2.36 x 13.54" [Ø60 x 352mm] L1 and L2 dimensions include the standard pole Ø0.7" x 9.65" [Ø18mm x 250mm]
Ambiental
- Operating Temperature
- -22° ~ 122°F (-30° ~ 50°C)
- Rating w/out Buzzer
- IP65
- Certifications
- CE/ RoHS/ cULus
Datos del producto
- Marca
- Maple Systems
- Número de parte
- TL160P2F-1
- Línea
- Pole Mount Tower Light · Tower Light
- Categoría
- Botones y señalización
- Precio y entrega
- Por cotización
