TL160D2BF-2

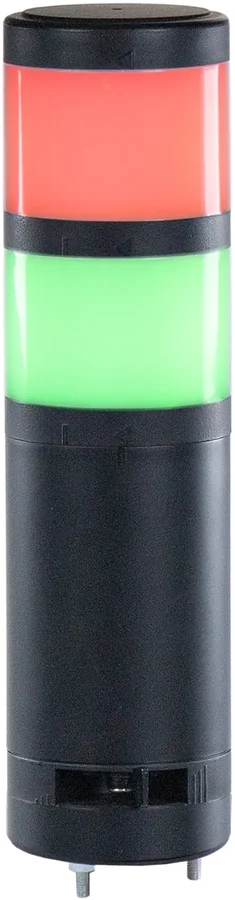

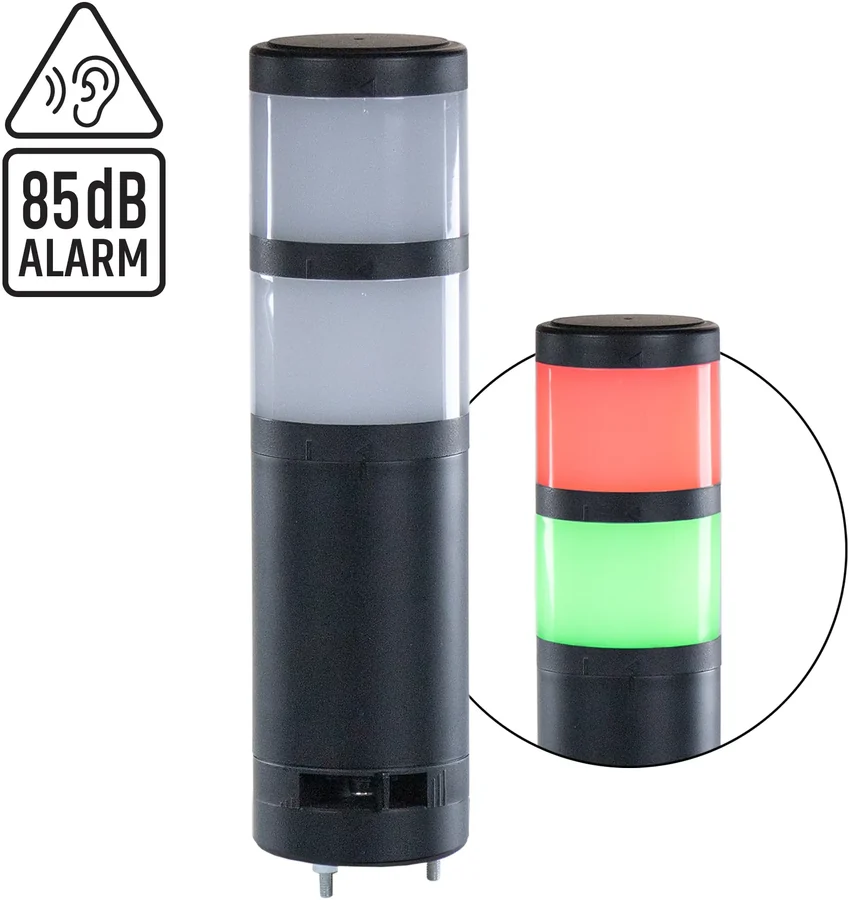

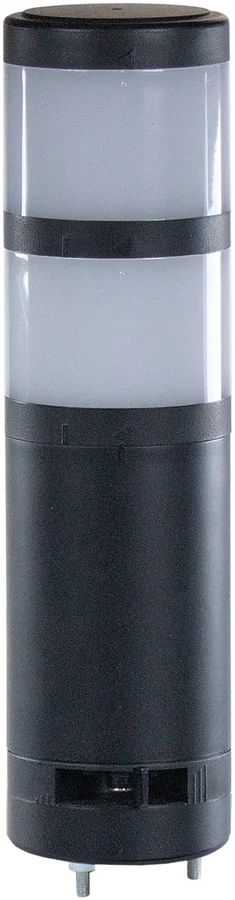

Improve visibility and response times on the factory floor with this 2-tier red/green, dirImprove visibility and response times on the factory floor with this 2-tier red/green, direct-mounted tower light with an integrated audible alarm for enhanced signaling. Engineered for harsh environments, this ruggedly built tower light operates reliably across a wide temperature range. The modular LED design incorporates a diffused (opal) lens that delivers smooth 360°, glare-free visibility.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Direct Mount, optional mounting brackets
- Audible Alerts with Built-in Buzzer
- Steady and Flashing Modes
- Extended Temperature Range
- cULus, CE, RoHS, IP54
Hoja de datosmaplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Optical
- Light Source
- LED
- Lens
- Opal Polycarbonate
- Layers
- 2
- Light Color
- Red, Green
Signaling
- Steady Light
- Steady/Solid
- Flashing Light
- 60-80/min
- Sound – Buzzer
- Buzzer with volume control (Max 85dB @3ft)
Eléctrico
- Input Voltage
- 24 VDC
- Input Current w/ Buzzer
- 215mA
- Connection
- Flying Leads: 15.75" [400mm]
Mecánico
- Weight
- ~ 0.75 lbs [0.34 kg]
- Mounting
- 3 x M4 Flange Nuts
- Construction
- ABS Housing, Polycarbonate Lens
- Dimensions w/ Buzzer
- Ø2.36 x 8.31" [Ø60 x 211mm]
Ambiental
- Operating Temperature
- -22° ~ 122°F (-30° ~ 50°C)
- Rating w/ Buzzer
- IP54
- Certifications
- CE/ RoHS/ cULus
Datos del producto
- Marca
- Maple Systems
- Número de parte
- TL160D2BF-2
- Línea
- Direct Mount Tower Light · Tower Light
- Categoría
- Botones y señalización
- Precio y entrega
- Por cotización
