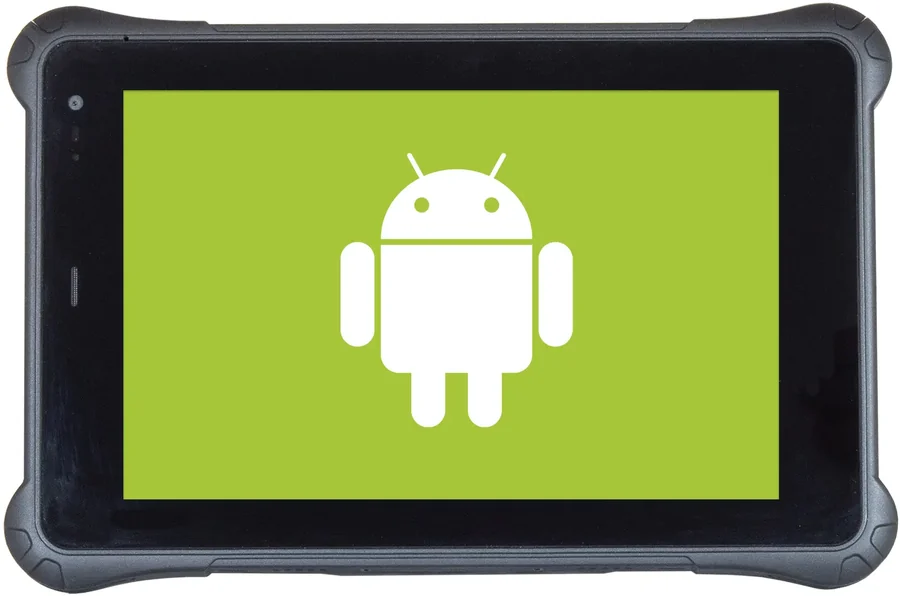

RT1308B
Our 8.0″ Android 16 industrial rugged tablet equipped with an MTK MT8781 Octa-core processOur 8.0″ Android 16 industrial rugged tablet equipped with an MTK MT8781 Octa-core processor, Gorilla Glass capacitive touchscreen operable with stylus, glove, and wet touch, is designed to withstand the harshest environments .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- MTK MT8781 Octa-core Processor: ARM Cortex-A76 Dual-core 2.2 GHz, ARM Cortex-A55 Hexa-core 2.0 GHz
- Android 16 Operating System
- 1280 x 800 Resolution, 700 nit, Capacitive Touch, Gorilla Glass
- Wi-Fi, Bluetooth, Cellular (4G LTE), GNSS, Barcode Reader, RFID
- Front/Rear Camera, 1x SIM Card Slot, 1x Mini HDMI, 1x USB 2.0 Type A, 1x USB 2.0 Type C, 1 x Ethernet, 1x Audio, 1x Micro SD Card Slot
- IP67 and MIL-STD-810H Certified
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- MTK MT8781 Octa-core Processor: ARM Cortex-A76 Dual-core 2.2 GHz, ARM Cortex-A55 Hexa-core 2.0 GHz
- Memory (RAM)
- 1 x 8GB LPDDR4x
- System Chipset
- SoC
- CPU Graphics
- ARM Mail-G57
- Sensor
- G-sensor / Light Sensor / Gyroscope / Compass
Puertos de E/S
- Camera
- Front: 5MP Fixed Focus Camera / Rear: 13MP Autofocus Camera with Flash
- SIM Card Slot
- 1 x Micro SIM Card Slot
- USB 2.0 Type C
- 1
- Ethernet/LAN
- 10/100 Base-T x 1
- Audio Output
- 1 x 3.5mm Audio Combo Jack / 8Ω/1W dual stereo speakers / Built-in Microphone
- Display Output
- 1 x Mini HDMI Port
- USB 2.0 Type A
- 1
Keypad and Keyboard
- Buttons
- 1 x Power Button / 1 x Volume + / 1 x Volume – / 2 x Barcode Scan Keys
Storage
- Solid State Drive
- 1 x 128GB SSD
- SD Card Slot
- 1 x Micro SD Card Slot, up to 256GB
Data Collection
- Barcode Reader
- 1D, 2D barcode reader
- Expansion Option
- RFID: UHF RFID, Frequency: 860 – 960MHz
RF Communication
- Wi-Fi
- Wi-Fi 802.11 (a/b/g/n/ac), dual band (2.4G + 5.0G)
- Cellular
- GSM: B2/B3/B5/B8 / WCDMA: B1/B2/B5/B8 / CDMA2000: BC0/BC1 / TDD: B34/B38/B39/B40/B41 / FDD: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28a/B28b
- Cellular Network
- 3G /4G /4G LTE
- Bluetooth
- Bluetooth V5.2
- GNSS
- GPS, GLONASS, BeiDou
Pantalla
- Display Size
- 8.0" TFT LCD
- Resolution
- 1280 x 800
- Luminance (cd/m^2)
- 700
- Contrast Ratio
- 1200:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.7 M
- View Angle (H° V°)
- 170/170
Pantalla táctil
- Glass Type
- Gorilla Glass
- Light Transmission
- 85%
- Touch Screen Type
- Projected Capacitive Touch
- Interface
- USB
Power Details
- Power Adapter
- Input AC: 100-240V, 50-60Hz, Output DC: 5V 3A
- Battery
- Removable Lithium-Ion Polymer Battery, 3.8V 10000mAh
- Battery Life
- 8 Hours
Mecánico
- Dimensions WxHxD
- 9.31 x 6.14 x 0.91" [236.5 x 156 x 23 mm]
- Weight
- Approx. 1.87 lbs. [0.85 kg]
Ambiental
- Drop Resistance
- MIL-STD-810H: 2022 Method 516.8 Procedure IV, 4ft
- Vibration Resistance
- MIL-STD-810H: 2022 Method 514.8 Procedure I
- Operating Temperature
- 14° ~ 122°F (-10° ~ 50°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 95% @ 40°C, non-condensing
Certificaciones
- IP Rating
- IP67
- CE
- Yes
- RoHS
- Yes
- FCC
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- RT1308B
- Línea
- Android Rugged Tablets · Industrial Rugged Tablets
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
