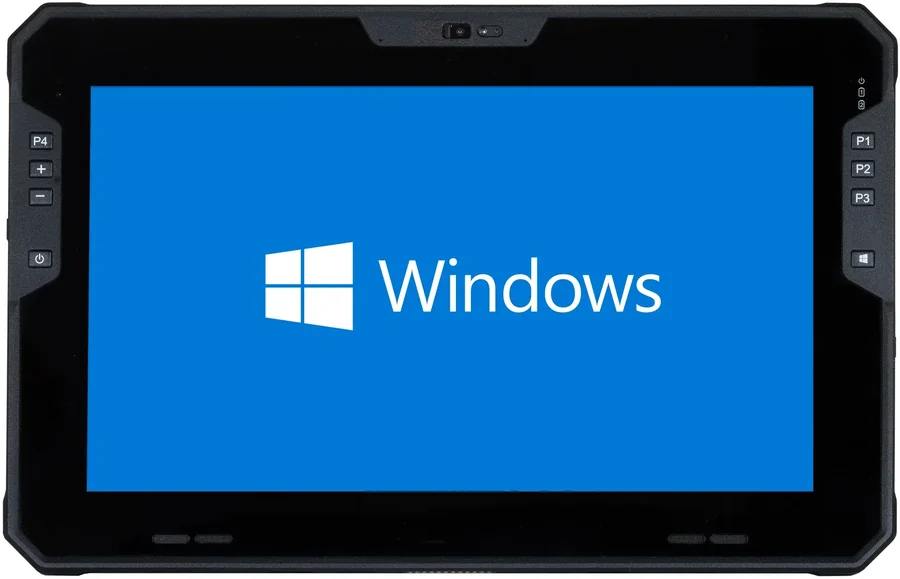

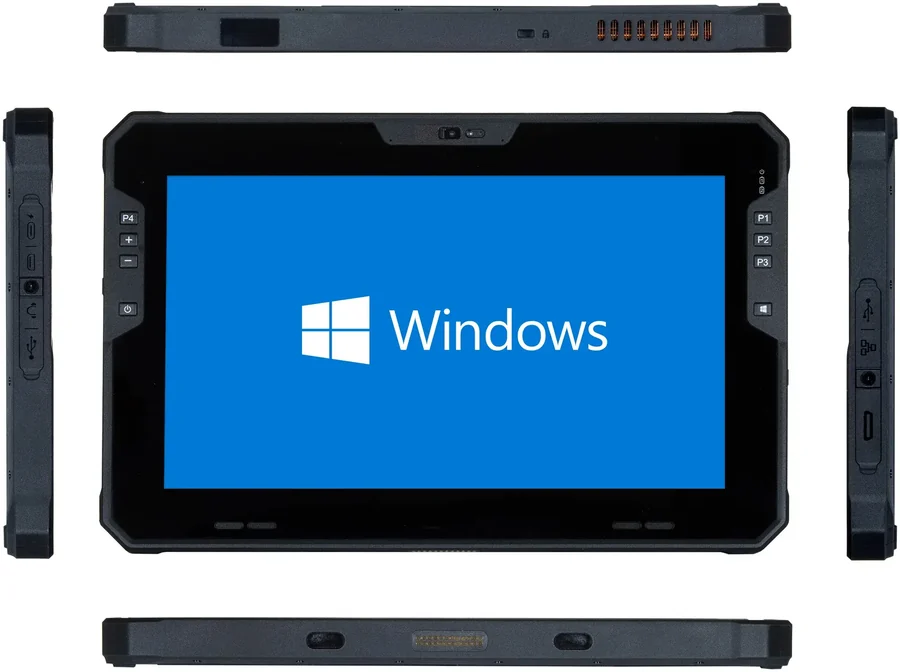

RT1211A
Our 11.6 ” industrial rugged tablet built with a Gorilla Glass capacitive touchscreen suppOur 11.6 ” industrial rugged tablet built with a Gorilla Glass capacitive touchscreen supported by stylus, glove, and active pen touch, comes standard with Microsoft Windows ® 11 Options and is designed to withstand the harshest environments .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Intel ® Core ® i5 1.3 – 4.4 GHz Processor, 10 Cores, 10 Threads
- Microsoft Windows ® 11 OS Options
- Dual Hot-Swappable Batteries
- 1920 x 1080 Resolution, 1000 nit, Capacitive Touch, Gorilla Glass
- Wi-Fi, Bluetooth, Cellular, GNSS, Barcode Reader, Windows Hello, RFID
- Front/Rear Camera, 1x SIM Card Slot, 1x Mini HDMI, 2x USB 3.0, 1x USB 2.0, 1 x Ethernet, 1x Audio
- IP66 and MIL-STD-810H Certified
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Core i5-1235U, 10 Core, 12 Threads (2-P, 4.4GHz Max, 8-E, 3.3GHz Max)
- Memory (RAM)
- 1 x 16GB LPDDR5
- System Chipset
- SoC: Alder Lake 12th Gen (Non-Evo)
- CPU Graphics
- Intel® Iris Xe
- Sensor
- G-sensor / Light Sensor / Gyroscope
Puertos de E/S
- Camera
- Front: 5MP Fixed Focus Camera (Windows Hello optional) / Rear: 12MP Autofocus Camera
- SIM Card Slot
- 1 x Nano SIM Card Slot
- USB 2.0 Type C
- 1
- Ethernet/LAN
- 10/100/1000 Base-T x 1
- Audio Output
- 8Ω/2W, dual stereo speakers / Dual Microphone / 1 x 3.5mm Audio Combo Jack
- Display Output
- 1 x Mini HDMI Port
- USB 3.0 Type A
- 2
Keypad and Keyboard
- Buttons
- 1 x Power Button / 1 x Volume + / 1 x Volume – / 2 x Barcode Scan Keys / 1 x Windows Button / 4 x Programmable Function Keys
Storage
- Solid State Drive
- 1 x 256GB NVMe PCIe SSD (up to 1TB)
Data Collection
- Barcode Reader
- 1D, 2D barcode reader
- Fingerprint
- Windows Hello
- Expansion Option
- RFID: UHF RFID, Frequency: 860 – 960MHz
RF Communication
- Wi-Fi
- Wi-Fi 6E 802.11 (a/b/d/e/g/h/i/k/n/r/u/v/w/ac/ax)
- Cellular
- WCDMA: B1/B2/B4/B5/B6/B8/B19 / FDD LTE: B1/ B2/ B3/ B4/ B5/ B7/ B8/ B12/ B13/ B14/ B17/ B18/ B19/ B20/ B25/ B26/ B28/ B66/ B71 / TDD LTE: B34/B38/B39/B40/B41/B42/B43/B48
- Cellular Network
- 3G /4G /4G LTE
- Bluetooth
- Bluetooth V5.3
- GNSS
- GPS, GLONASS, BeiDou
Pantalla
- Display Size
- 11.6" TFT IPS
- Resolution
- 1920 x 1080
- Luminance (cd/m^2)
- 1000
- Contrast Ratio
- 1000:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.7 M
- View Angle (H° V°)
- 170/170
Pantalla táctil
- Glass Type
- Gorilla Glass
- Light Transmission
- 85%
- Optical Bonding
- No
- Touch Screen Type
- Projected Capacitive Touch
- Interface
- USB
Power Details
- Power Adapter
- Input AC: 100-240V, 50-60Hz, 1.5A Max, Output DC: PD65W
- Battery
- Dual Lithium Batteries, Hot-Swappable, 7.7V 58Whr
- Battery Life
- 6 Hours
Mecánico
- Dimensions WxHxD
- 12.40 x 7.99 x 0.83" [315 x 203 x 21mm]
- Weight
- Approx. 3.42 lbs [1.55 kg]
Ambiental
- Drop Resistance
- MIL-STD-810H: 2022 Method 516.8 Procedure IV, 4ft
- Vibration Resistance
- MIL-STD-810H: 2022 Method 514.8 Procedure I
- Operating Temperature
- -4~140°F [-20~60°C]
- Storage Temperature
- -22~158°F [-30~70°C]
- Relative Humidity
- 95% @ 40°C, non-condensing
Certificaciones
- IP Rating
- IP66
- CE
- Yes
- RoHS
- Yes
- FCC
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- RT1211A
- Línea
- Industrial Rugged Tablets · Windows Rugged Tablets
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
