RT1110A

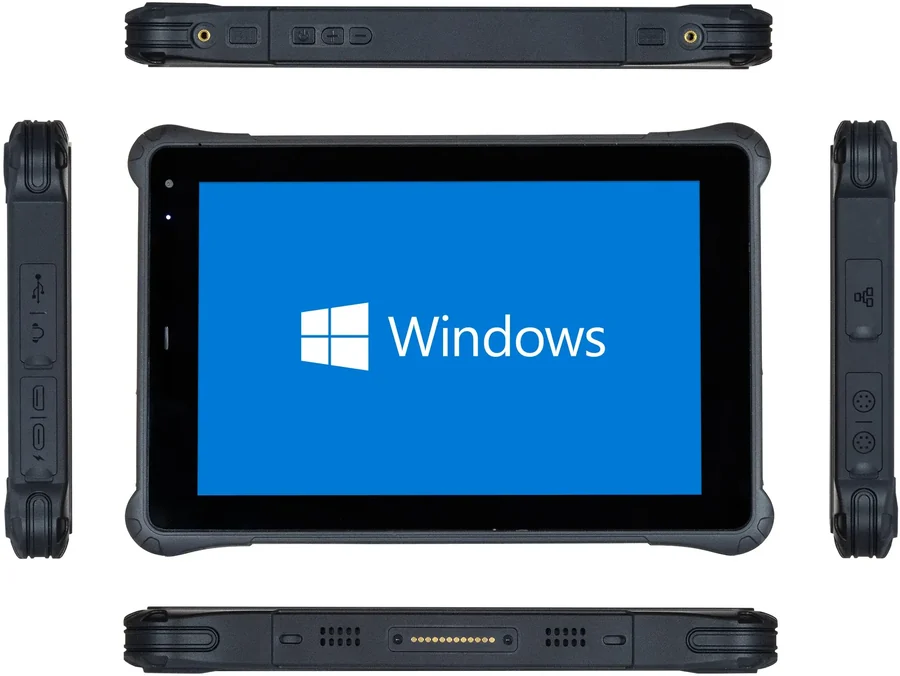

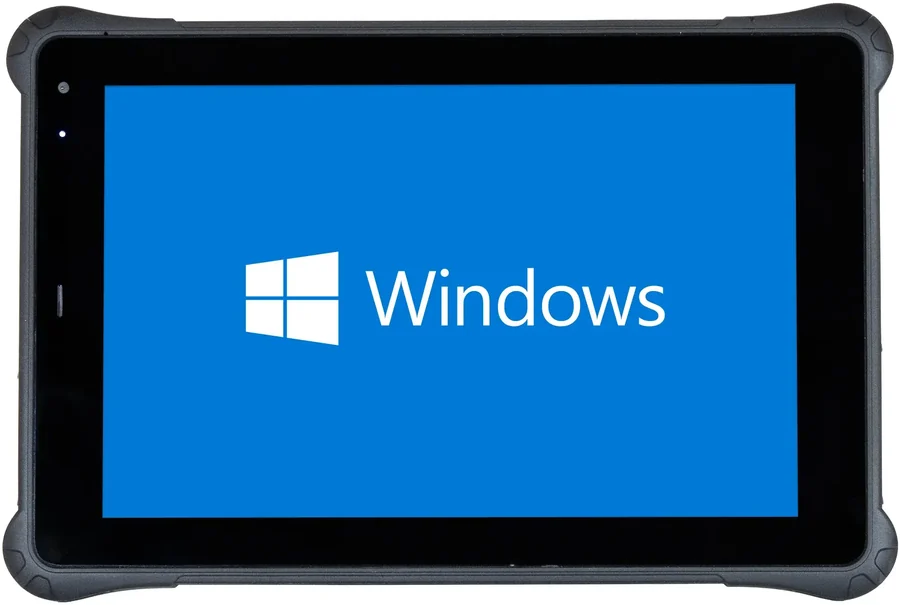

Our 10.1 ” industrial rugged tablet built with a Gorilla Glass capacitive touchscreen suppOur 10.1 ” industrial rugged tablet built with a Gorilla Glass capacitive touchscreen supported by stylus, glove, and wet-touch modes, comes standard with Microsoft Windows ® 11 OS Options and is designed to withstand the harshest environments .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Intel ® Celeron ® Quad-Core N5100, 2.8GHz Processor
- Microsoft Windows ® 11 OS Options
- 1280 x 800 Resolution, 700 nit, Capacitive Touch, Gorilla Glass
- Wi-Fi, Bluetooth, Cellular (4G LTE), GNSS, 1D/2D Zebra Barcode Reader, RFID
- Front/Rear Camera, 1x SIM Card Slot, 1x Mini HDMI, 1x USB 3.0, 1x USB 2.0, 1 x Ethernet, 1x Audio, 1x Micro SD Card Slot
- IP67 and MIL-STD-810H Certified
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Celeron® Quad-Core N5100 @ 2.8GHz
- Memory (RAM)
- 1 x 8GB LPDDR4
- System Chipset
- SoC
- CPU Graphics
- Intel® UHD Graphics Gen 11 LP
- Sensor
- G-sensor
Puertos de E/S
- Camera
- Front: 5MP Fixed Focus Camera / Rear: 8MP Autofocus Camera
- SIM Card Slot
- 1 x Micro SIM Card Slot
- USB 2.0 Type C
- 1
- Ethernet/LAN
- 10/100/1000 Base-T x 1
- Audio Output
- 1 x 3.5mm Audio Combo Jack / 8Ω/1W dual stereo speakers / Built-in Microphone
- Display Output
- 1 x Mini HDMI Port
- USB 3.0 Type A
- 1
Keypad and Keyboard
- Buttons
- 1 x Power Button / 1 x Volume + / 1 x Volume – / 2 x Barcode Scan Keys
Storage
- Solid State Drive
- 1 x 128GB SSD
- SD Card Slot
- 1 x Micro SD Card Slot, up to 256GB
Data Collection
- Barcode Reader
- 1D, 2D barcode reader
- Expansion Option
- RFID: UHF RFID, Frequency: 860 – 960MHz
RF Communication
- Wi-Fi
- Wi-Fi 802.11 (a/b/g/n/ac), dual band (2.4G + 5.0G)
- Cellular
- WCDMA/HSPA+: B1/B5/B8 / FDD LTE: B1/B3/B5/B7/B8/B20/B28 / TDD LTE: B34/B38/B39/B40/B41
- Cellular Network
- 3G /4G /4G LTE
- Bluetooth
- Bluetooth V4.2
- GNSS
- GPS, GLONASS, BeiDou
Pantalla
- Display Size
- 10.1" TFT LCD
- Resolution
- 1280 x 800
- Luminance (cd/m^2)
- 700
- Contrast Ratio
- 1200:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.7 M
- View Angle (H° V°)
- 170/170
Pantalla táctil
- Glass Type
- Gorilla Glass
- Light Transmission
- 85%
- Touch Screen Type
- Projected Capacitive Touch
- Interface
- USB
Power Details
- Power Adapter
- Input AC: 100-240V, 50-60Hz, Output DC: PD65W
- Battery
- Removable Lithium-Ion Polymer Battery, 7.6V 5000mAh
- Battery Life
- 6 Hours
Mecánico
- Dimensions WxHxD
- 11.02 x 7.40 x 0.91″ [280 x 188 x 23 mm]
- Weight
- Approx. 2.65 lbs. [1.2 Kg]
Ambiental
- Drop Resistance
- MIL-STD-810H: 2022 Method 516.8 Procedure IV, 4ft
- Vibration Resistance
- MIL-STD-810H: 2022 Method 514.8 Procedure I
- Operating Temperature
- 14° ~ 122°F (-10° ~ 50°C)
- Storage Temperature
- -4° ~ 140°F (-20° ~ 60°C)
- Relative Humidity
- 95% @ 40°C, non-condensing
Certificaciones
- IP Rating
- IP67
- CE
- Yes
- RoHS
- Yes
- FCC
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- RT1110A
- Línea
- Windows Rugged Tablets · Industrial Rugged Tablets
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
