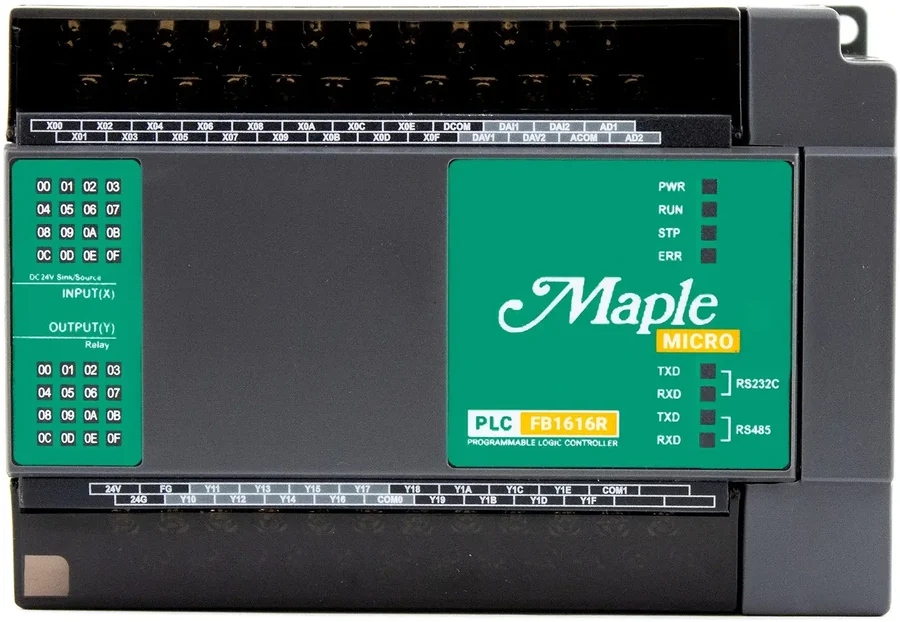

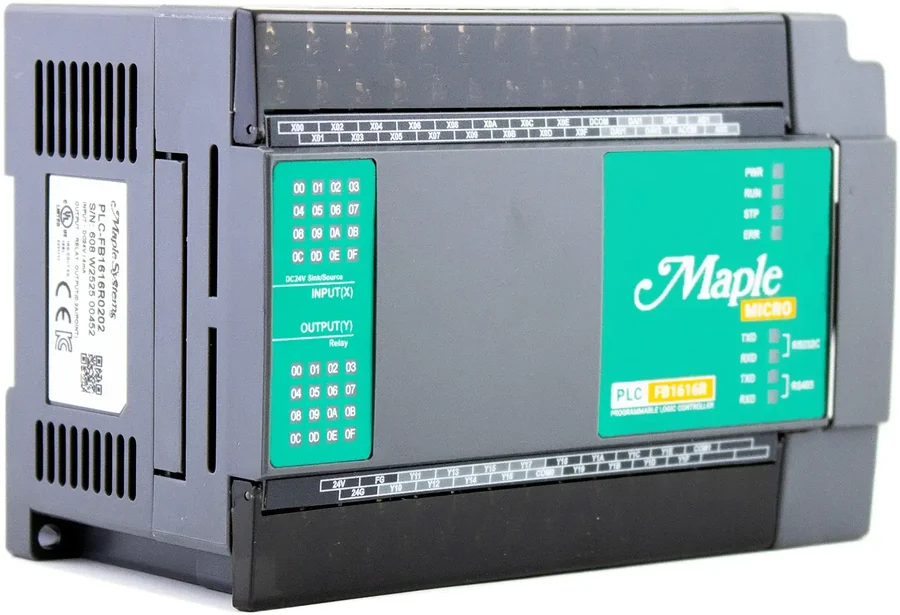

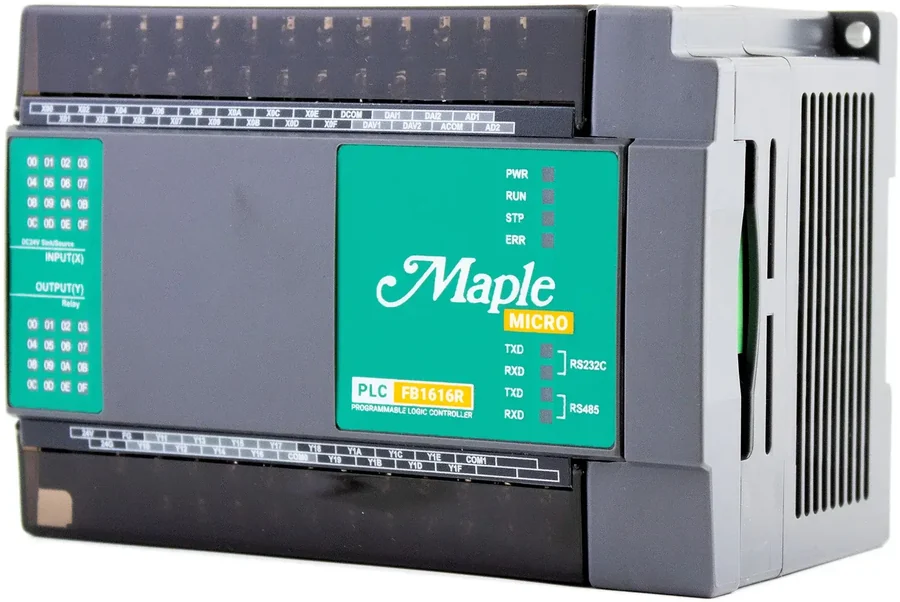

PLC-FB1616R0202
Compact and cost-effective “smart relay” programmable logic controller for small applicatiCompact and cost-effective “smart relay” programmable logic controller for small applications that require powerful performance and uncompromising reliability. Try Before You Buy: Follow along to learn how MapleLogic, our 100% free PLC control software, allows you to develop and simulate your PLC program entirely free of charge.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 16 Digital Inputs – Sink (NPN) or Sourcing (PNP)
- 16 Relay Outputs
- 2 Analog Inputs (0-10V, 0-20mA), 2 Analog Outputs (0-10V, 4-20mA)
- Serial or Ethernet Communication
- Real Time Clock (RTC)
- PID Control with Auto-Tuning
- 2 High Speed Counter (HSC) Inputs – up to 20kHz
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Puertos de E/S
- USB
- USB 2.0 (Mini-B) x 1
- Ethernet/LAN
- 10/100 Base-T x 1
- Serial
- 1 x RS232, 1x RS422/RS485
Functional
- Program Languages
- Ladder (LD), Instruction List (I/L), Function Block (FB), Sequential Function Chart (SFC)
- Power Consumption
- 9.60 W, 24 VDC, 0.40 A at 24 VDC
- High-Speed Counter (HSC)
- Yes
- Positioning
- No
- Number of Channels
- 36 Total: 16 Digital Inputs, 16 Digital Relay Outputs, 2 Analog Inputs, 2 Analog Outputs
- Program Memory
- 10K STEP
- Execution Speed
- 300ns/STEP
- Number of IO Points
- 36
Digital I/O
- Digital Input Type
- TR Sink/Source
- Digital Output Type
- Relay
- Rated Digital Input Voltage
- 24 VDC (12 or 24 VDC is used for HSC)
- Rated Digital Output Voltage
- 24 VDC, 220 VAC
- Rated Digital Output Current
- 1 point = 2 A, 1 COM = 5 A
- Digital Output Insulation Method
- Relay
- Digital Input Insulation Method
- Photocoupler
- Rated Digital Input Current
- 4 mA
Analog I/O
- Input Type
- Voltage: 0-10 V, 1-10V, 0-5 V, 1-5 V Current: 0–20 mA, 4-20 mA
- Output Type
- Voltage: 0–10 V (Load resistance > 1 kΩ) Current: 4–20 mA (Load resistance < 600 Ω)
Mecánico
- Dimensions WxHxD
- 93 x 135 x 75 mm (3.7 x 5.3 x 3.0 in)
- Weight
- 415g (0.91lb)
- Mounting
- 35mm DIN Rail Mounting
- Shock
- 15G
- Vibration
- 0.5G Continuous, 1G Discontinuous
- Square Wave Impulse Noise
- ±2 kV
- ESD Immunity
- ±4 kV – Contact Discharges, ±8 kV – Air Discharges
- Radiated Electromagnetic Immunity
- 80–1000 MHz, 10 V/m
- Surge Transient Immunity
- 2 kV – CPU & Power, 2 kV – Digital I/O (VAC), 1 kV – Digital I/O (VDC), 1 kV – Communication
Ambiental
- Operating Temperature
- 10 – 55 °C (14 – 131 °F)
- Storage Temperature
- -25 – 80 °C (-13 – 176 °F)
- Operating/Storage Relative Humidity
- 5 – 95% Non-condensing
Certificaciones
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- PLC-FB1616R0202
- Línea
- All PLCs · Micro PLCs
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
