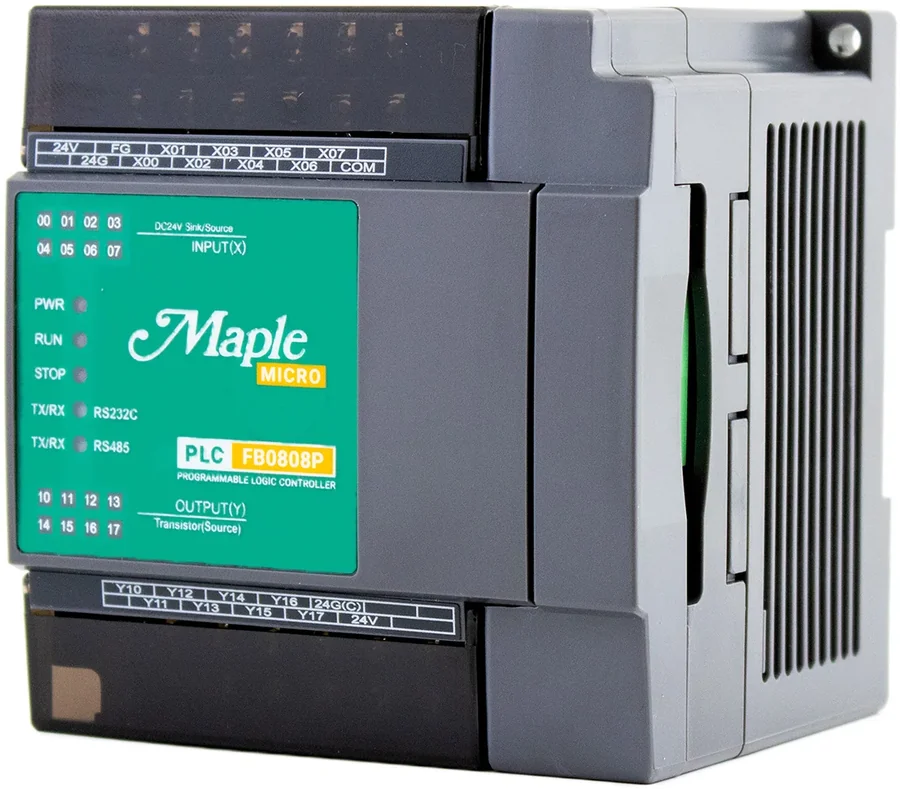

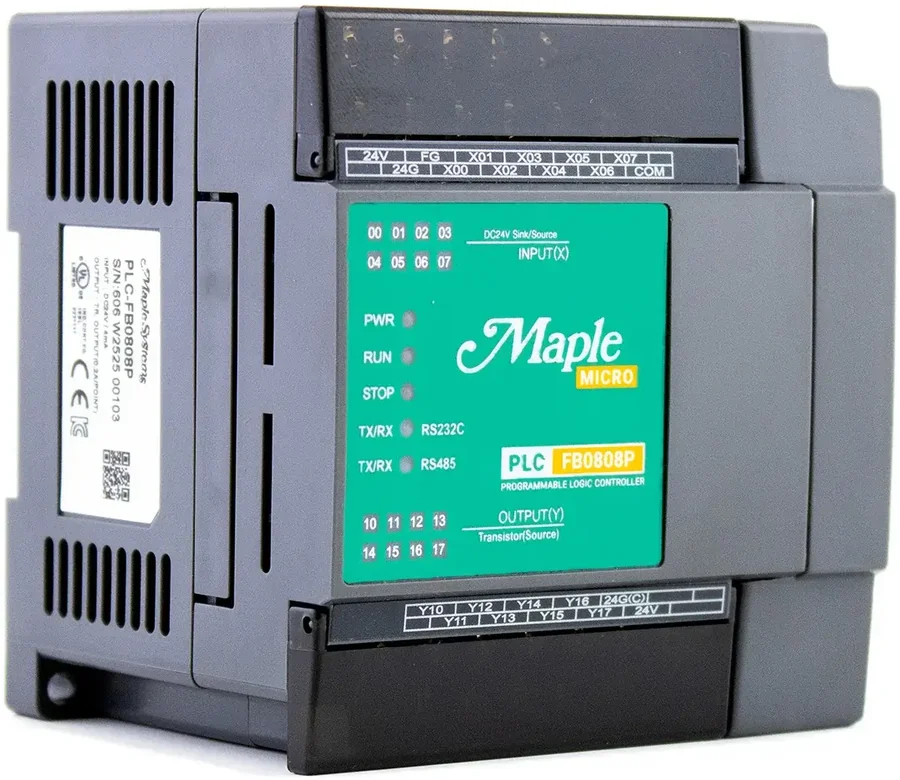

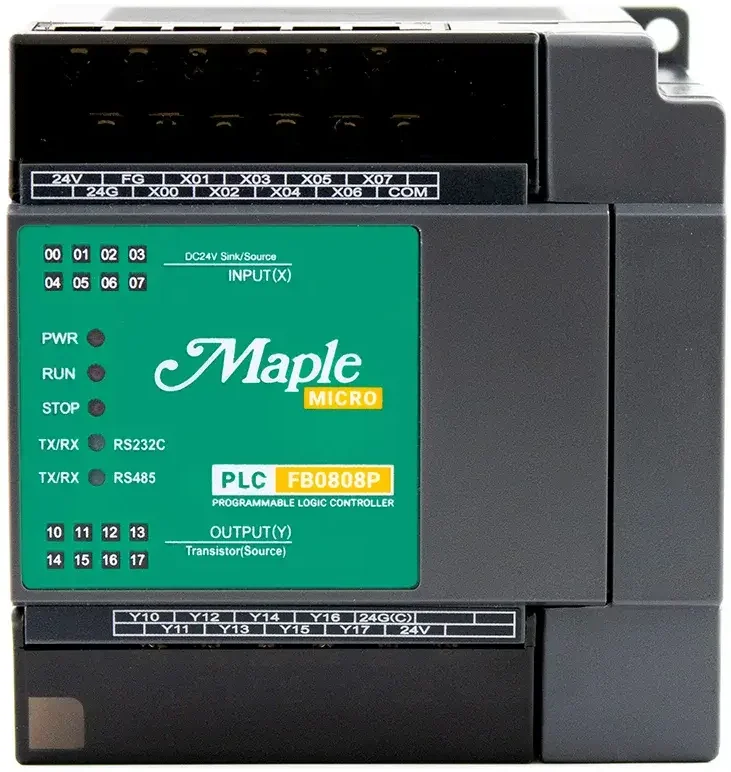

PLC-FB0808P
Compact and cost-effective “smart relay” programmable logic controller for small applicatiCompact and cost-effective “smart relay” programmable logic controller for small applications that require powerful performance and uncompromising reliability. Try Before You Buy: Follow along to learn how MapleLogic, our 100% free PLC control software, allows you to develop and simulate your PLC program entirely free of charge.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 8 Digital Inputs – Sink (NPN) or Sourcing (PNP)
- 8 Digital Outputs – Sourcing (PNP)
- Serial or Ethernet Communication
- Real Time Clock (RTC)
- 2 High Speed Counter (HSC) Inputs – up to 20kHz
- 2 Pulse Train Output (PTO) Channels – up to 100KHz
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Puertos de E/S
- USB
- USB 2.0 (Mini-B) x 1
- Ethernet/LAN
- 10/100 Base-T x 1
- Serial
- 1 x RS232, 1x RS422/RS485
Functional
- Program Languages
- Ladder (LD), Instruction List (I/L), Function Block (FB), Sequential Function Chart (SFC)
- Power Consumption
- 2.88 W, 12/24 VDC, 0.12 A at 24 VDC
- High-Speed Counter (HSC)
- Yes
- Positioning
- Yes
- Number of Channels
- 16 Total: 8 Digital Inputs, 8 Digital Outputs
- Program Memory
- 10K STEP
- Execution Speed
- 300ns/STEP
- Number of IO Points
- 16
Digital I/O
- Digital Input Type
- TR Sink/Source
- Digital Output Type
- TR Source
- Rated Digital Input Voltage
- 24 VDC (12 or 24 VDC is used for HSC)
- Rated Digital Output Voltage
- 12/24 VDC
- Rated Digital Output Current
- 1 point = 0.2 A, 1 COM = 1 A
- Digital Output Insulation Method
- Photocoupler
- Digital Input Insulation Method
- Photocoupler
- Rated Digital Input Current
- 4 mA
Mecánico
- Dimensions WxHxD
- 93 x 90 x 76 mm (3.7 x 3.5 x 3.0 in)
- Weight
- 240g (0.53lb)
- Mounting
- 35mm DIN Rail Mounting
- Shock
- 15G
- Vibration
- 0.5G Continuous, 1G Discontinuous
- Square Wave Impulse Noise
- ±2 kV
- ESD Immunity
- ±4 kV – Contact Discharges, ±8 kV – Air Discharges
- Radiated Electromagnetic Immunity
- 80–1000 MHz, 10 V/m
- Surge Transient Immunity
- 2 kV – CPU & Power, 2 kV – Digital I/O (VAC), 1 kV – Digital I/O (VDC), 1 kV – Communication
Ambiental
- Operating Temperature
- 10 – 55 °C (14 – 131 °F)
- Storage Temperature
- -25 – 80 °C (-13 – 176 °F)
- Operating/Storage Relative Humidity
- 5 – 95% Non-condensing
Certificaciones
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- PLC-FB0808P
- Línea
- All PLCs · Micro PLCs
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
