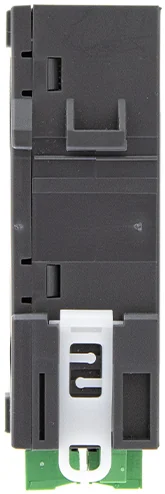

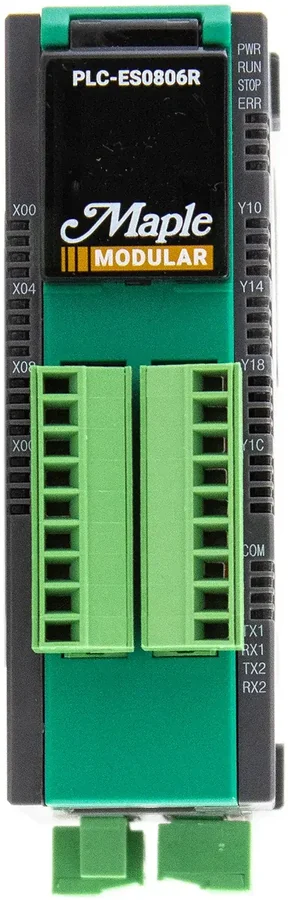

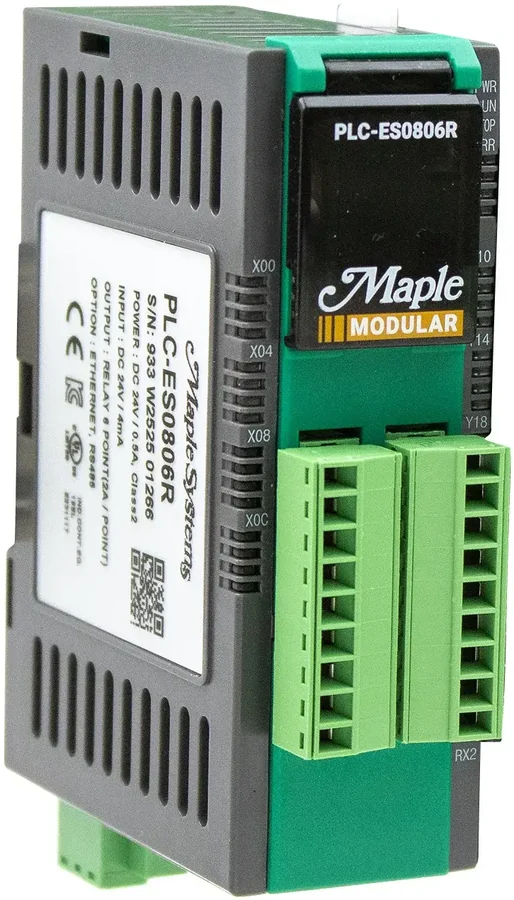

PLC-ES0806R
Compact PLC, high performance, built-in functions (PID control, high speed counter, and poCompact PLC, high performance, built-in functions (PID control, high speed counter, and positioning) for medium and small-scale systems with ethernet or serial communication.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Supports flexible expansion up to 11 I/O modules
- Built-in 8 Digital Inputs (Sink/Sourcing) and 6 Digital Outputs (Relay)
- PID Control with Auto-Tuning
- 2 High Speed Counter (HSC) Inputs – up to 20kHz
- Serial and Ethernet Communication
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Puertos de E/S
- USB
- USB 2.0 (Mini-B) x 1
- Ethernet/LAN
- 10/100 Base-T x 1
- Serial
- 1 x RS232, 1x RS422/RS485
Functional
- Program Languages
- Ladder (LD), Instruction List (I/L), Function Block (FB), Sequential Function Chart (SFC)
- Power Consumption
- 12 W, 12/24 VDC, 0.5 A at 24 VDC
- High-Speed Counter (HSC)
- Yes
- Positioning
- No
- Number of Channels
- 14 Total: 8 Digital Inputs, 6 Digital Relay Outputs
- Program Memory
- 10K STEP
- Execution Speed
- 300ns/STEP
- Number of IO Points
- 384 (maximum)
Digital I/O
- Digital Input Type
- TR Sink/Source
- Digital Output Type
- Relay
- Rated Digital Input Voltage
- 24 VDC (12 or 24 VDC is used for HSC)
- Rated Digital Output Voltage
- 24 VDC, 220 VAC
- Rated Digital Output Current
- 1 point = 2 A, 1 COM = 5 A
- Digital Output Insulation Method
- Relay
- Digital Input Insulation Method
- Photocoupler
- Rated Digital Input Current
- 4 mA
Mecánico
- Dimensions WxHxD
- 30 x 91 x 64 mm (1.2 x 3.6 x 2.5 in)
- Weight
- 165 g (0.36 lb)
- Mounting
- 35mm DIN Rail Mounting
- Shock
- 15G
- Vibration
- 0.5G Continuous, 1G Discontinuous
- Square Wave Impulse Noise
- ±2 kV
- ESD Immunity
- ±4 kV – Contact Discharges, ±8 kV – Air Discharges
- Radiated Electromagnetic Immunity
- 80–1000 MHz, 10 V/m
- Surge Transient Immunity
- 2 kV – CPU, Power; 2 kV – Digital I/O (VAC); 1 kV – Digital I/O (VDC); 1 kV – Communication
Ambiental
- Operating Temperature
- -10 – 60 °C (14 – 140 °F)
- Storage Temperature
- -25 – 80 °C (-13 – 176 °F)
- Operating/Storage Relative Humidity
- 5 – 95% Non-condensing
Certificaciones
- CE
- Yes
- UL
- cULus Listed
- RoHS
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- PLC-ES0806R
- Línea
- All PLCs · Modular PLCs
- Categoría
- HMI y PLC
- Precio y entrega
- Por cotización
