Maple SystemsDistribuidor autorizado
PCS6815APHEB

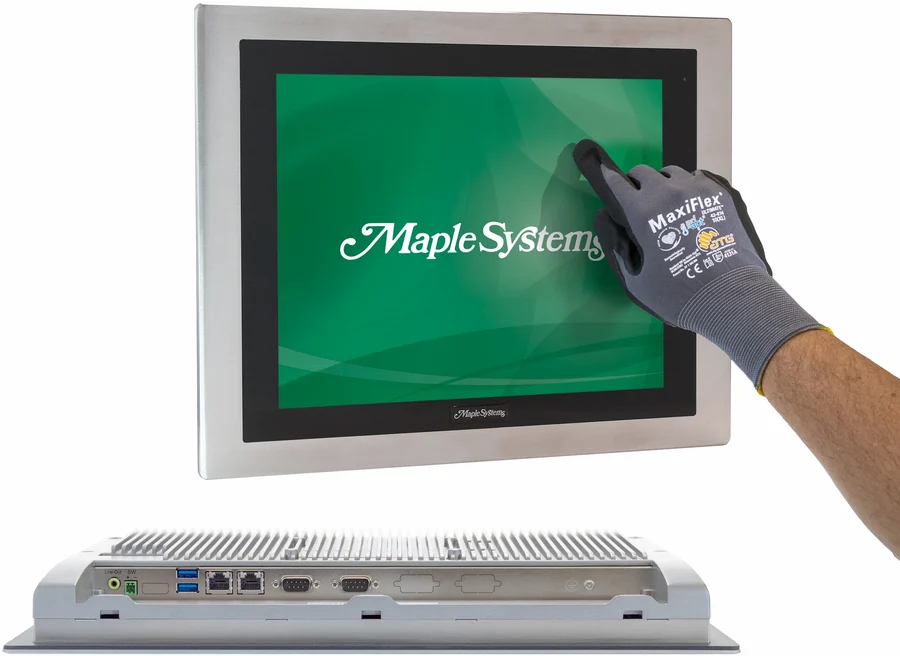

Our 15” optically bonded capacitive touchscreen, extended temperature ( -20~60°C ), 1000 nOur 15” optically bonded capacitive touchscreen, extended temperature ( -20~60°C ), 1000 nits-high bright display IPC provides power, performance and functionality in one package. Designed for industries that require stringent disinfection processes and splashing cleanup routines, the PCS6815APHEB is ideal for demanding work environments.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1024 x 768 Resolution, Optically Bonded
- 1000 nits High Brightness
- Intel ® Celeron N2930 Quad-Core 1.83 GHz Processor
- Windows ® or Linux® Operating System
- -20~60°C Operating Temperature
- IP66K/IP69K Rating
- Optional Wi-Fi Upgrade
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Celeron™ N2930 Quad-Core 1.83 GHz Processor
- Memory (RAM)
- Onboard DDR3L 4 GB 1600 MHz
- System Chipset
- SoC
- Solid State Drive Type
- 1 x 2.5” SATA III, MLC
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB SSD
Puertos de E/S
- Power
- 3-pin connector header, DC power input
- Ethernet/LAN
- 2 x GbE RJ-45
- Audio Output
- 1 x 3.5 mm line out
- SD Card Slot
- 1 x internal micro Secure Digital memory card socket, up to 32 GB
- HDMI Port
- No
- Remote Power Switch
- 2-pin connector header
- Display Output
- No
- USB 3.0 Type A
- 2
- Serial Ports
- 2
- Serial Options
- 1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 1 x RS-232 DE-9P, COM2
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support
Pantalla
- Display Size
- 15.0” XGA TFT LCD
- Resolution
- 1024 X 768
- Luminance (cd/m^2)
- 1000
- Contrast Ratio
- 800:1
- Backlight Lifetime (hrs)
- 70,000+
- Colors
- 16.7 M
- View Angle (H° V°)
- 176/176
Pantalla táctil
- Touch Interface
- USB
- Light Transmission
- 90+%
- Optical Bonding
- Yes
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 37 W
- Input Voltage
- 9~36 VDC
- Input Current
- 4.11 A Max
Mecánico
- Enclosure Material
- 304 Stainless Steel Front Bezel and Aluminum Chassis
- Dimensions WxHxD
- 16.61 x 12.68 x 2.43” [422 x 322 x 54.1 mm]
- Panel Cutout (inches) [mm]
- 15.43 x 11.50 [392 x 292 ]
- Weight
- ~ 11.24 lbs [5.1 kg]
- Mounting
- Panel mounting, VESA 100 x 100 mm
Ambiental
- Operating Temperature
- -4~140°F [-20~60°C]
- Storage Temperature
- -22~158°F [-30~70°C]
- Relative Humidity
- 10 to 90% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP66/IP69K
- CE
- Yes
- UL
- No
- ATEX
- No
- RoHS
- Yes
- FCC
- FCC Class A
Datos del producto
- Marca
- Maple Systems
- Número de parte
- PCS6815APHEB
- Línea
- Waterproof Industrial PC · High-Brightness PCs · Extended Temp. PCs · Industrial Panel PCs · Stainless Steel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
