PCS6812APHEB

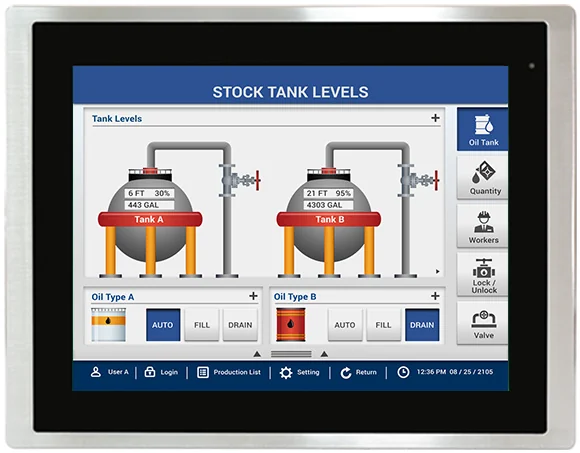

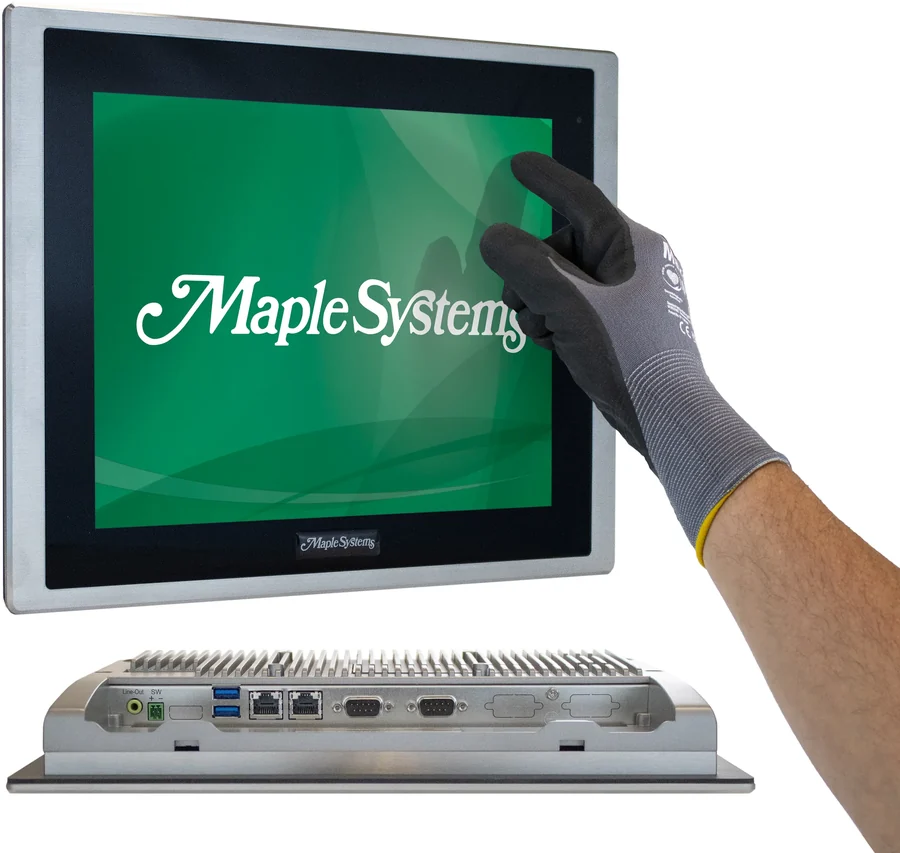

With a 1000 nit, high bright 12.1″ optically bonded capacitive display, extended operatingWith a 1000 nit, high bright 12.1″ optically bonded capacitive display, extended operating temperature range ( -20~60°C ), 304 stainless steel housing , and IP66/IP69K protection when panel mounted for dust and water resistance, the PCS6812APHEB is ready for high-pressure, high-temperature washdowns . Designed for extreme work environments that require stringent disinfection processes and splashing cleanup routines.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 800 x 600 Resolution, Optically Bonded
- 1000 nits High Brightness
- Intel ® Celeron N2930 Quad-Core 1.83 GHz Processor
- Windows ® or Linux® Operating System
- -20 ~ 60 C Operating Temperature
- IP66K/IP69K Rating
- Optional Wi-Fi Upgrade
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Celeron™ N2930 Quad-Core 1.83 GHz Processor
- Memory (RAM)
- Onboard DDR3L 4 GB 1600 MHz
- System Chipset
- SoC
- Solid State Drive Type
- 1 x 2.5” SATA III, MLC
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB SSD
Puertos de E/S
- Power
- 3-pin connector header, DC power input
- Ethernet/LAN
- 2 x GbE RJ-45
- Audio Output
- 1 x 3.5 mm line out
- SD Card Slot
- 1 x internal micro Secure Digital memory card socket, up to 32 GB
- HDMI Port
- No
- Remote Power Switch
- 2-pin connector header
- Display Output
- No
- USB 3.0 Type A
- 2
- Serial Ports
- 2
- Serial Options
- 1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 1 x RS-232 DE-9P, COM2
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support
Pantalla
- Display Size
- 12.1” SVGA TFT LCD
- Resolution
- 800 x 600
- Luminance (cd/m^2)
- 1000
- Contrast Ratio
- 700:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.7 M
- View Angle (H° V°)
- 176/176
Pantalla táctil
- Touch Interface
- USB
- Light Transmission
- 90+%
- Optical Bonding
- Yes
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 34 W
- Input Voltage
- 9~36 VDC
- Input Current
- 3.77 A Max
Mecánico
- Enclosure Material
- 304 Stainless Steel Front Bezel and Aluminum Chassis
- Dimensions WxHxD
- 13.03 x 11.19 x 2.05” [331 x 257 x 52 mm]
- Panel Cutout (inches) [mm]
- 11.93 x 9.02 [303 x 229 ]
- Weight
- ~ 7.50 lbs [3.4 kg]
- Mounting
- Panel mounting, VESA 100 x 100 mm
Ambiental
- Operating Temperature
- -4~140°F [-20~60°C]
- Storage Temperature
- -22~158°F [-30~70°C]
- Relative Humidity
- 10 to 90% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP66/IP69K
- CE
- Yes
- UL
- No
- ATEX
- No
- RoHS
- Yes
- FCC
- FCC Class A
Datos del producto
- Marca
- Maple Systems
- Número de parte
- PCS6812APHEB
- Línea
- Waterproof Industrial PC · High-Brightness PCs · Extended Temp. PCs · Industrial Panel PCs · Stainless Steel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
