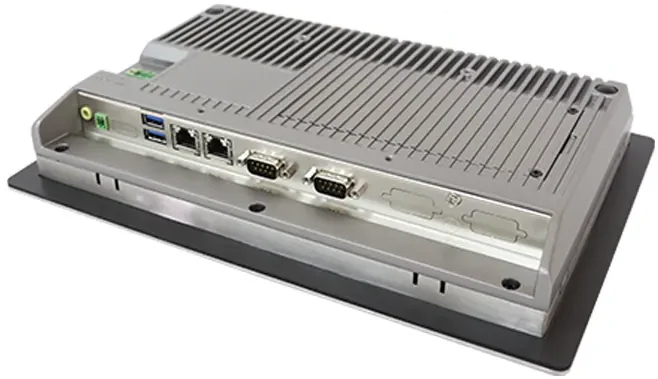

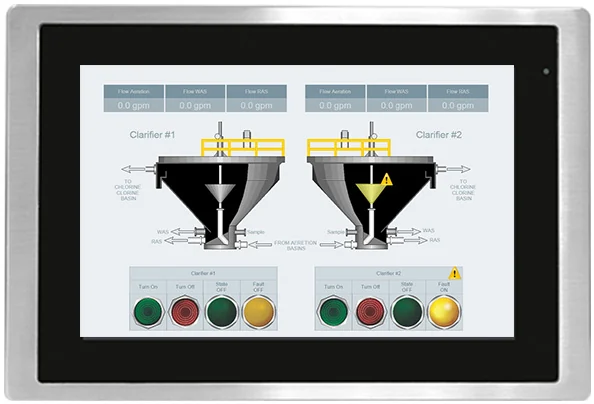

PCS6810AP
The PCS6810AP provides power, performance and functionality in one package. With 304 stainThe PCS6810AP provides power, performance and functionality in one package. With 304 stainless steel housing and IP66/IP69K protection when panel mounted for dust and water resistance, this 10.1” IPC is ready for high-pressure , high-temperature washdowns .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 304 Stainless Steel Front Bezel, IP66/IP69K Rating
- High-Resolution Capacitive Touch Screen
- Intel ® Celeron ™ N2930 Quad-Core 1.83 GHz Processor
- Windows ® or Linux® Operating System
- Optional Wi-Fi Upgrade
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Celeron™ N2930 Quad-Core 1.83 GHz Processor
- Memory (RAM)
- Onboard DDR3L 4 GB 1600 MHz
- System Chipset
- SoC
- Solid State Drive Type
- 1 x 2.5” SATA III, MLC
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB SSD

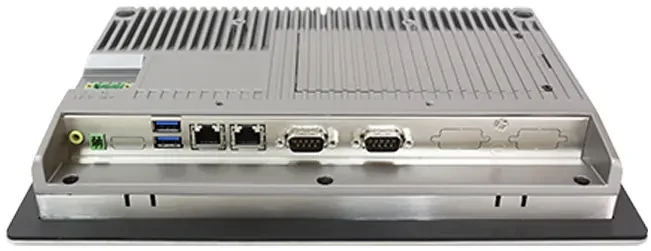

Puertos de E/S
- Power
- 3-pin connector header, DC power input
- Ethernet/LAN
- 2 x GbE RJ-45
- Audio Output
- 1 x 3.5 mm line out
- SD Card Slot
- 1 x internal micro Secure Digital memory card socket, up to 32 GB
- HDMI Port
- No
- Remote Power Switch
- 2-pin connector header
- Display Output
- No
- USB 3.0 Type A
- 2
- Serial Ports
- 2
- Serial Options
- 1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 1 x RS-232 DE-9P, COM2
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support
Pantalla
- Display Size
- 10.1” WXGA TFT LCD
- Resolution
- 1280 x 800
- Luminance (cd/m^2)
- 350
- Contrast Ratio
- 800:1
- Backlight Lifetime (hrs)
- 30,000+
- Colors
- 16.7 M
- View Angle (H° V°)
- 170/170
Pantalla táctil
- Touch Interface
- USB
- Light Transmission
- 90+%
- Optical Bonding
- No
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 20 W
- Input Voltage
- 9~36 VDC
- Input Current
- 0.56 – 2.22 A
Mecánico
- Enclosure Material
- 304 Stainless Steel Front Bezel and Aluminum Chassis
- Dimensions WxHxD
- 11.65 x 7.87 x 1.85” [296 x 200 x 46.9 mm]
- Panel Cutout (inches) [mm]
- 10.71 x 6.93 [272 x 176 ]
- Weight
- ~ 5.51 lbs [2.5 kg]
- Mounting
- Panel mounting, VESA 100 x 100 mm
Ambiental
- Operating Temperature
- 32~122°F [0~50°C]
- Storage Temperature
- -22~158°F [-30~70°C]
- Relative Humidity
- 10 to 90% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP66/IP69K
- CE
- Yes
- UL
- No
- ATEX
- No
- RoHS
- Yes
- FCC
- FCC Class A
Datos del producto
- Marca
- Maple Systems
- Número de parte
- PCS6810AP
- Línea
- Waterproof Industrial PC · Industrial Panel PCs · Stainless Steel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
