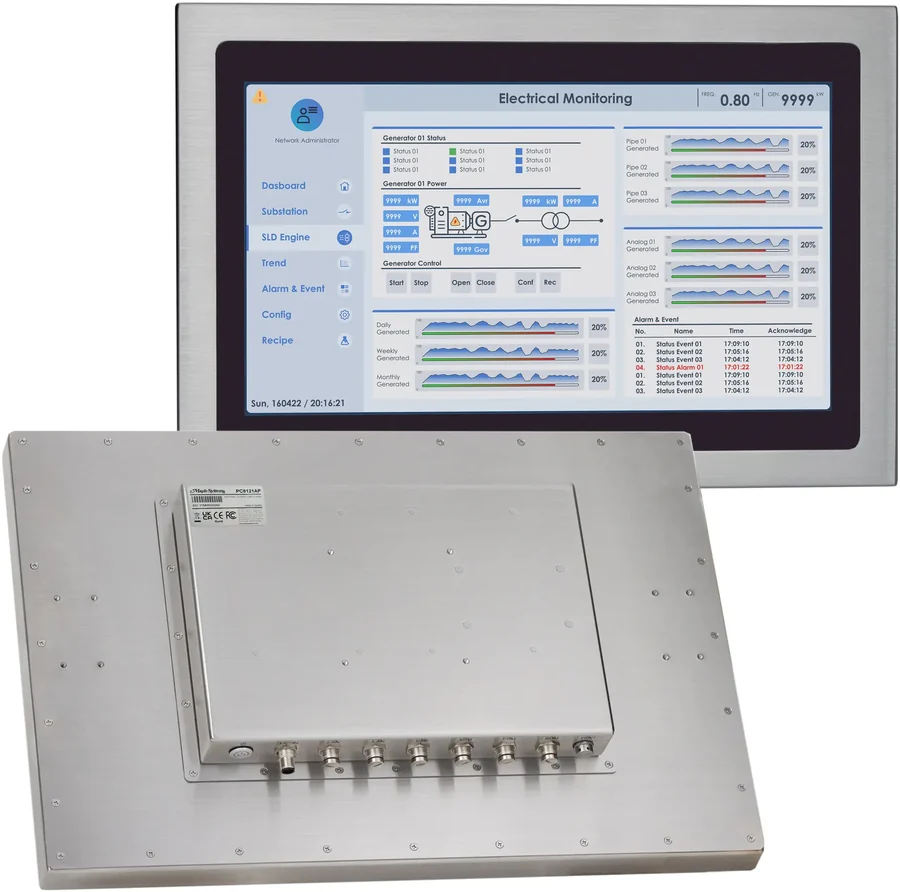

PC8121AP

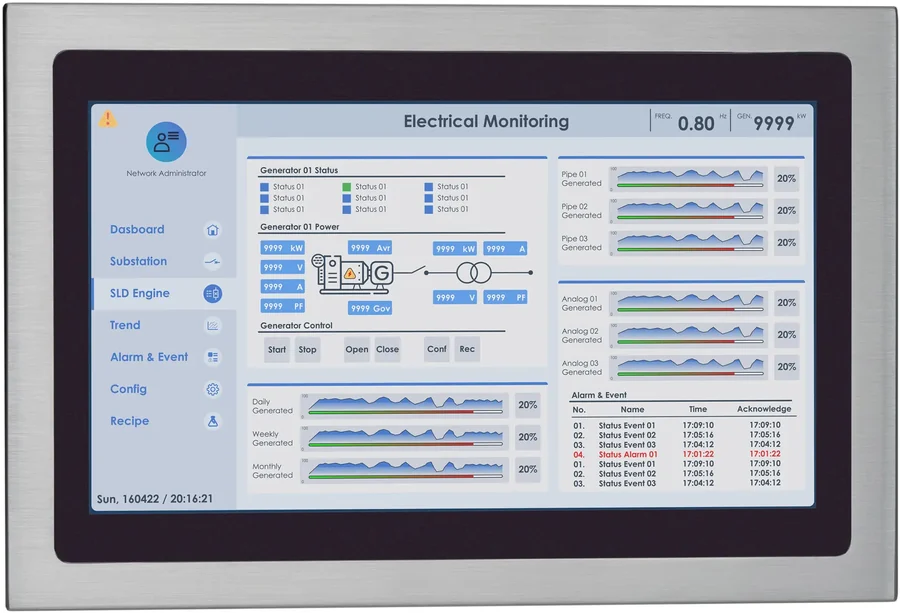

The fanless IP66/IP69K rated, 21.5” PC8121AP with all sides waterproof , protected from stThe fanless IP66/IP69K rated, 21.5” PC8121AP with all sides waterproof , protected from strong water jets and wash-down environments is also dustproof and features a 304 Stainless Steel enclosure. With a capacitive touchscreen, up to 32GB of RAM and 2TB of Storage , makes it ideal for food processing, pharmaceutical, outdoor kiosks and self-service applications.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 1920 x 1080 Resolution

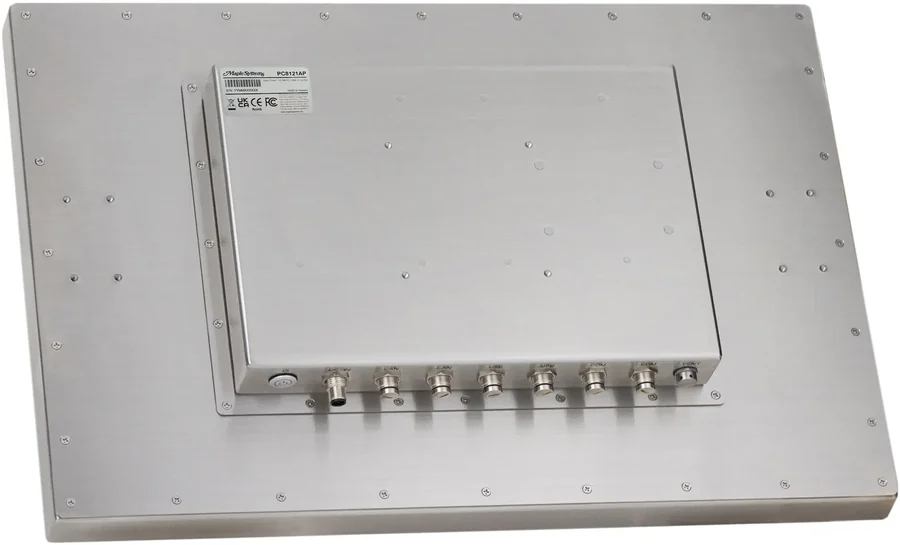

- M12 Waterproof Connectors
- 304 Stainless Steel Chassis
- Projected Capacitive Touch Screen
- Intel ® Celeron J6412 Quad-Core 2.0 GHz Processor
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Quad-Core Celeron® J6412 @ 2.0 GHz
- Memory (RAM)
- 1 x DDR4 3200MHz SO-DIMM (8, 16, 32GB)
- System Chipset
- SoC
- Solid State Drive Type
- NVME
- Solid State Drive Capacity
- 128, 256, 512 GB, 1TB, 2TB SSD
- CPU Graphics
- Intel® UHD Graphics
Puertos de E/S
- Connector Type
- M12 Waterproof Connectors
- Power
- 1 x M12 4-pin for DC power input (leads)
- Ethernet/LAN
- 2 x 2.5 GbE M12 8-Pin, Intel® I225-IT; supports Wake-On-LAN
- USB 2.0 Type A
- 2 (1 x M12 8-pin for 2 x USB 2.0)
- Serial Ports
- 2
- Serial Options
- 2 x M12 8-pin for RS-232/422/485, DE-9, COM1 (default RS-232)
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support
Pantalla
- Display Size
- 21.5" TFT LCD
- Resolution
- 1920 x 1080
- Luminance (cd/m^2)
- 350
- Contrast Ratio
- 1000:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.7 M
- View Angle (H° V°)
- 178/178
Pantalla táctil
- Touch Interface
- USB (Internal)
- Light Transmission
- 90+%
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 26.8 W
- Input Voltage
- 12/24 VDC
- Input Current
- 1.11 / 2.23 A
Mecánico
- Enclosure Material
- 304 Stainless Steel
- Dimensions WxHxD
- 23.23 x 15.55 x 3.63 inches [590 x 395 x 92.3 mm]
- Dimensions (W x H x D) w/Stand
- 23.23 x 17.62 x 6.30 inches [590 x 447.5 x 160 mm]
- Weight
- Approx. 37.48 lbs [17 kg]
- Mounting
- VESA 100 x 100 mm
Ambiental
- Vibration Resistance
- 5~500 Hz, 2G Acceleration, 30 Minute Duration Z, Y, and X Axis
- Operating Temperature
- 32~122°F [0~50°C]
- Storage Temperature
- -4~176°F [-20~80°C]
- Relative Humidity
- 20 to 90% @ 40°C, non-condensing
Certificaciones
- IP Rating
- IP66/IP69K
- CE
- Yes
- RoHS
- Yes
- FCC
- Yes
Datos del producto
- Marca
- Maple Systems
- Número de parte
- PC8121AP
- Línea
- Waterproof Industrial PC · Industrial Panel PCs · Stainless Steel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
