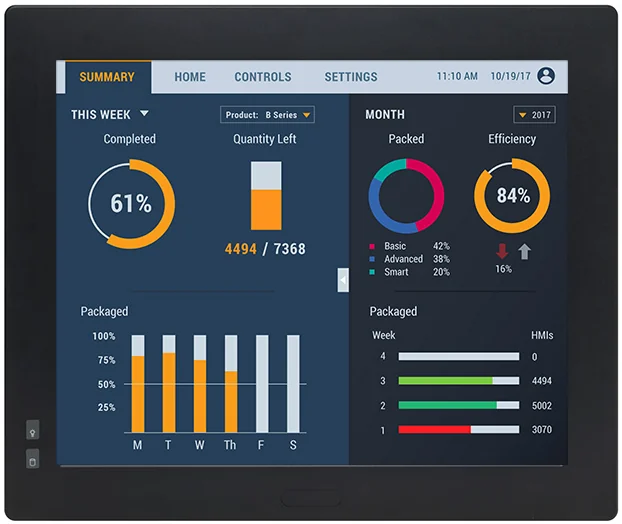

PC2319B
The PC2319B is a high-quality unit that is extremely scalable and customizable. Made with The PC2319B is a high-quality unit that is extremely scalable and customizable. Made with industrial grade components and an aluminum front/steel heatsink, this IPC is built for harsh environments. Configure to meet your specific needs! VESA or Panel mount. Because it has a Windows ® OS, it supports most 3rd party SCADA software like SIMATIC WinCC , Ignition , FactoryTalk ® , & AVEVA ® .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Intel 7th Gen Kaby Lake Core™ i7/i5/i3 CPU
- 1280 x 1024 Resolution
- Up to 32GB DDR4 RAM
- 2 Gigabit Ethernet Ports, 4 Serial Ports, 4 USB Ports
- Microsoft Windows ® Operating System
- Supports 3rd-party software, including FactoryTalk ®
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Quad Core™ i7-7700T @ 2.9GHz / Intel® Quad Core™ i5-7500T @ 2.7GHz / Intel® Dual Core™ i3-7101TE @ 3.4GHz
- Memory (RAM)
- 2 x DDR4 260-pin SO-DIMM Non-ECC RAM slots (8, 16, 32 GB total)
- System Chipset
- Intel Q170 Chipset
- Solid State Drive Type
- 1 x 2.5” SATA III, MLC
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB SSD
Puertos de E/S
- Power
- 3-pin connector header, DC power input
- Ethernet/LAN
- 2 x GbE RJ-45
- Audio Output
- 1 x 3.5 mm Line-out, 1 x 3.5 mm Line-in, 1 x 3.5 mm Mic-in
- HDMI Port
- No
- Remote Power Switch
- 2-pin wire-to-wire connector (2.5mm pitch)
- Display Output
- 1 x DVI-I port (max. 1920 x 1080 pixels)
- USB 3.0 Type A
- 4
- Serial Ports
- 4
- Serial Options
- 2 x RS-232/422/485 DE-9P, COM1/COM2 (default RS-232), 2 x RS-232 DE-9P, COM3/COM4
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support
- Power Switch
- Momentary Toggle
- Digital I/O
- 1 x DB25S, 8 in/ 8 out
- CFast Card Slot
- Yes
Pantalla
- Display Size
- 19” TFT SXGA LCD
- Resolution
- 1280 x 1024
- Luminance (cd/m^2)
- 350
- Contrast Ratio
- 600:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.7 M
- View Angle (H° V°)
- 160/160
Pantalla táctil
- Touch Interface
- USB
- Touch Screen Type
- 5-Wire Resistive Touch
Eléctrico
- Input Power
- Typ. 41 W; Max. 150 W
- Input Voltage
- 9~36 VDC
- Input Current
- Typ. 1.71 A @ 24VDC; Max 6.25 A @ 24VDC
Mecánico
- Enclosure Material
- Black Aluminum
- Dimensions WxHxD
- 18.54 x 15.59 x 5.16 inches [471 x 396 x 131mm]
- Panel Cutout (inches) [mm]
- 17.20 x 14.25 inches [437 x 362 mm]
- Weight
- ~ 19.62 lbs. [8.9 Kg]
- Mounting
- Panel mounting, VESA 100 x 100 mm
Ambiental
- Operating Temperature
- 32~113°F [0~45°C]
- Storage Temperature
- -4~176°F [-20~80°C]
- Relative Humidity
- 20 to 90% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP65
- CE
- Yes
- RoHS
- Yes
- FCC
- FCC Class A
Datos del producto
- Marca
- Maple Systems
- Número de parte
- PC2319B
- Línea
- Industrial Panel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
