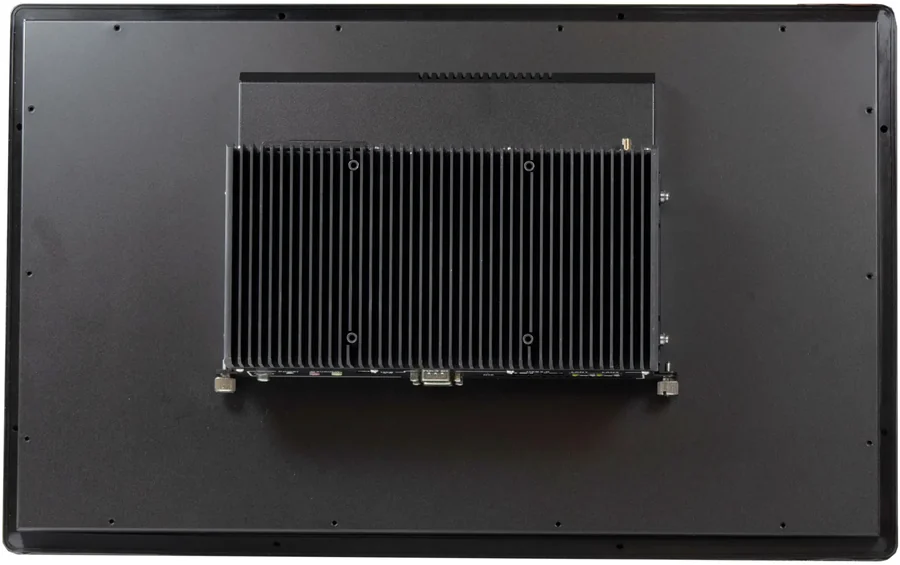

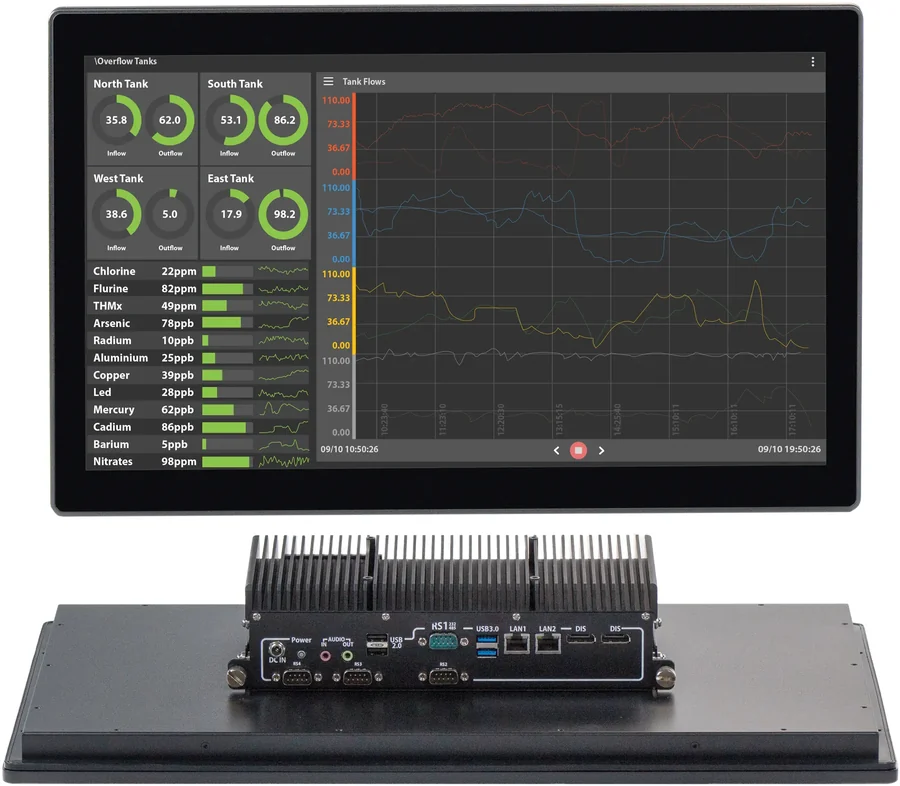

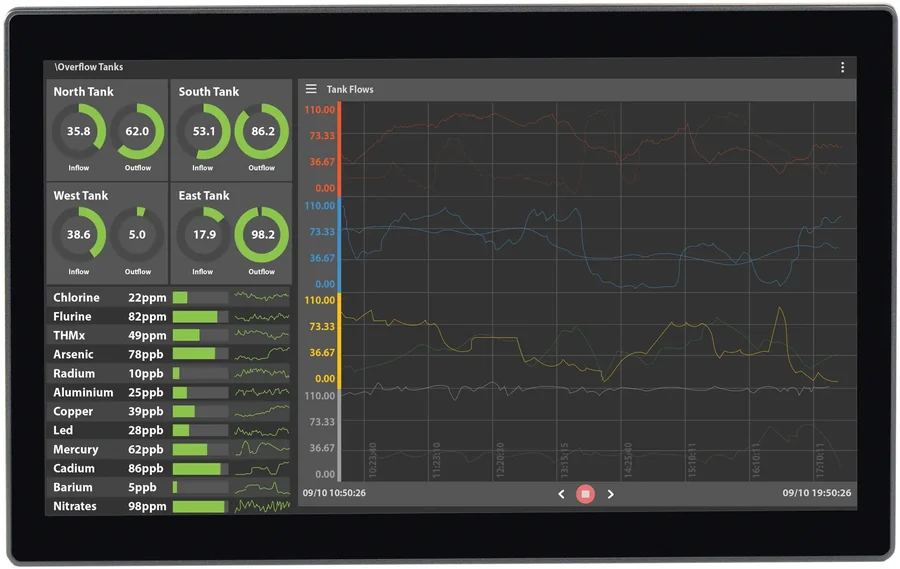

PC1421AP
High-quality construction and industrial grade components makes the customizable PC1421AP High-quality construction and industrial grade components makes the customizable PC1421AP a powerful industrial computer for your unique application. As part of our powerful Industrial PC Series, this fanless, wide screen 21.5” capacitive touchscreen IPC comes with either a Linux ® or a Windows ® OS which supports most 3rd party SCADA software , like SIMATIC WinCC , Ignition , FactoryTalk ® , & AVEVA ® .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- High-Resolution Capacitive Touch Screen
- Intel ® Alder Lake-N N97 Quad-Core 3.60 GHz Processor
- Multiple Memory and Storage Options Available
- Windows® or Linux® Operating System
- Optional Wi-Fi Upgrade
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Alder Lake-N N97 Quad-Core 3.60 GHz Processor
- Memory (RAM)
- 1 x DDR5 262-pin SO-DIMM Non-ECC RAM (8, 16)
- System Chipset
- SoC
- Solid State Drive Type
- NVME
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB, 2TB SSD
Puertos de E/S
- Power
- DC power input jack, thumbscrew secured.
- Ethernet/LAN
- 2 x GbE RJ-45
- Audio Output
- 1 x 3.5 mm Line-out, 1 x 3.5 mm Mic-in
- Remote Power Switch
- 1 x Momentary Pushbutton with Integrated LED
- Display Output
- 2 x DisplayPort
- Display Port
- Yes
- USB 2.0 Type A
- 2
- USB 3.0 Type A
- 2
- Serial Ports
- 4
- Serial Options
- 1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 3 x RS-232 DE-9P, COM2/COM3/COM4
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support
Pantalla
- Display Size
- 21.5” Widescreen TFT FHD LCD
- Resolution
- 1920 x 1080
- Luminance (cd/m^2)
- 250
- Contrast Ratio
- 3000:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.2 M
- View Angle (H° V°)
- 170/160
Pantalla táctil
- Touch Interface
- USB
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 49 W
- Input Voltage
- 9~24 VDC
- Input Current
- 2.25 – 5.44 A
Mecánico
- Enclosure Material
- Black Steel Chassis, Aluminum Heatsink
- Dimensions WxHxD
- 20.63 x 13.00 x 3.62” [524 x 330.2 x 92 mm]
- Panel Cutout (inches) [mm]
- 19.82 x 12.09” [503.5 x 307 mm]
- Weight
- ~19.95 lbs [9.05 kg]
- Mounting
- Panel mounting, VESA 100 x 100 mm
Ambiental
- Shock Resistance
- 10G acceleration peak to peak, 11ms duration
- Vibration Resistance
- 5~17 Hz, 0.1” double amplitude peak to peak, 1.5G acceleration peak to peak
- Operating Temperature
- 32~140°F [0~60°C]
- Storage Temperature
- -22~175°F [-30~80°C]
- Relative Humidity
- 10 to 90% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP65
- CE
- Yes
- UL
- No
- ATEX
- No
- RoHS
- Yes
- FCC
- FCC Class B
