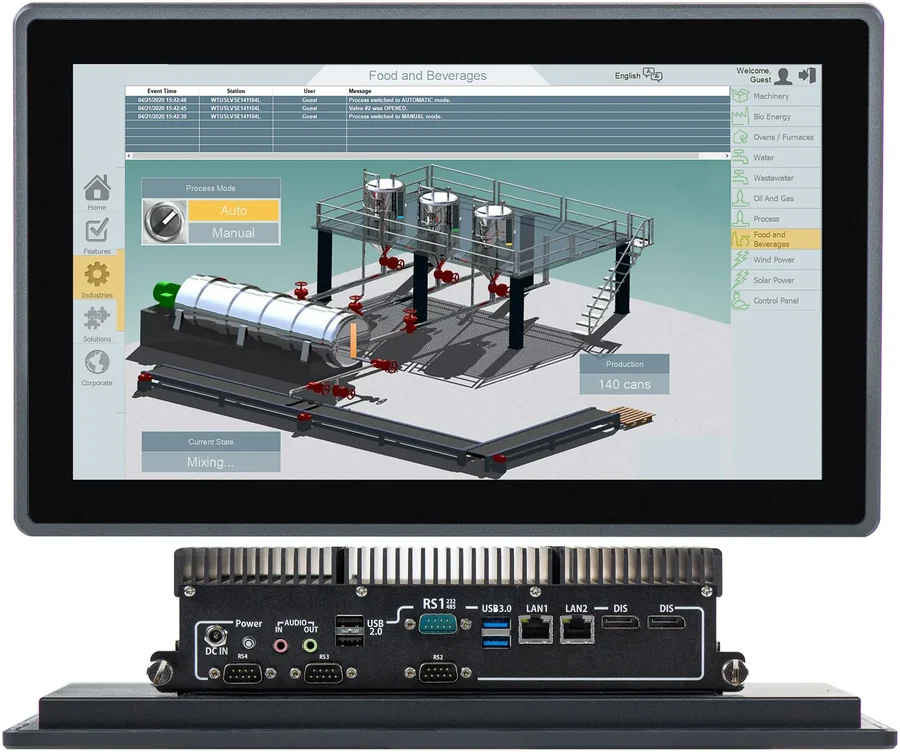

PC1416AP

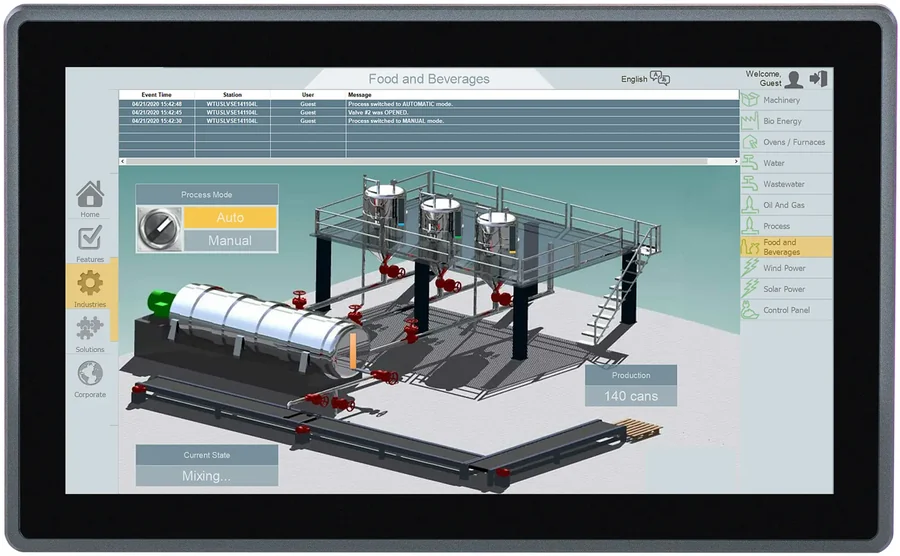

As part of our powerful Industrial PC Series, this customizable, fanless, wide screen 15.6As part of our powerful Industrial PC Series, this customizable, fanless, wide screen 15.6” capacitive touchscreen IPC is customizable and comes with either a Linux ® or a Windows ® OS which supports most 3rd party SCADA software , like SIMATIC WinCC , Ignition , FactoryTalk ® , & AVEVA ® .
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- High-Resolution Capacitive Touch Screen
- Intel ® Alder Lake-N N97 Quad-Core 3.60 GHz Processor
- Multiple Memory and Storage Options Available
- Windows® or Linux® Operating System
- Optional Wi-Fi Upgrade
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Alder Lake-N N97 Quad-Core 3.60 GHz Processor
- Memory (RAM)
- 1 x DDR5 262-pin SO-DIMM Non-ECC RAM (8, 16)
- System Chipset
- SoC
- Solid State Drive Type
- NVME
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB, 2TB SSD

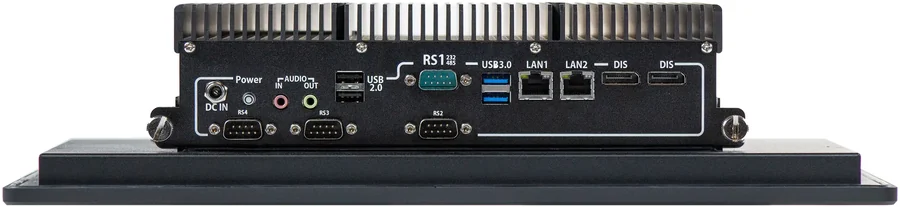

Puertos de E/S
- Power
- DC power input jack, thumbscrew secured.
- Ethernet/LAN
- 2 x GbE RJ-45
- Audio Output
- 1 x 3.5 mm Line-out, 1 x 3.5 mm Mic-in
- Remote Power Switch
- 1 x Momentary Pushbutton with Integrated LED
- Display Output
- 2 x DisplayPort
- Display Port
- Yes
- USB 2.0 Type A
- 2
- USB 3.0 Type A
- 2
- Serial Ports
- 4
- Serial Options
- 1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 3 x RS-232 DE-9P, COM2/COM3/COM4
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support
Pantalla
- Display Size
- 15.6” Widescreen TFT FHD LCD
- Resolution
- 1920 x 1080
- Luminance (cd/m^2)
- 450
- Contrast Ratio
- 500:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.2 M
- View Angle (H° V°)
- 170/170
Pantalla táctil
- Touch Interface
- USB
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 45 W
- Input Voltage
- 9~24 VDC
- Input Current
- 1.88 – 5 A
Mecánico
- Enclosure Material
- Black Steel Chassis, Aluminum Heatsink
- Dimensions WxHxD
- 15.75 x 9.84 x 3.36” [400 x 250 x 85.4 mm]
- Panel Cutout (inches) [mm]
- 14.57 x 8.90 [370 x 226 ]
- Weight
- ~13.78 lbs [6.25 kg]
- Mounting
- Panel mounting, VESA 100 x 100 mm
Ambiental
- Shock Resistance
- 10G acceleration peak to peak, 11ms duration
- Vibration Resistance
- 5~17 Hz, 0.1” double amplitude peak to peak, 1.5G acceleration peak to peak
- Operating Temperature
- 32~140°F [0~60°C]
- Storage Temperature
- -22~175°F [-30~80°C]
- Relative Humidity
- 10 to 90% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP65
- CE
- Yes
- UL
- No
- ATEX
- No
- RoHS
- Yes
- FCC
- FCC Class B
