PC1412APH

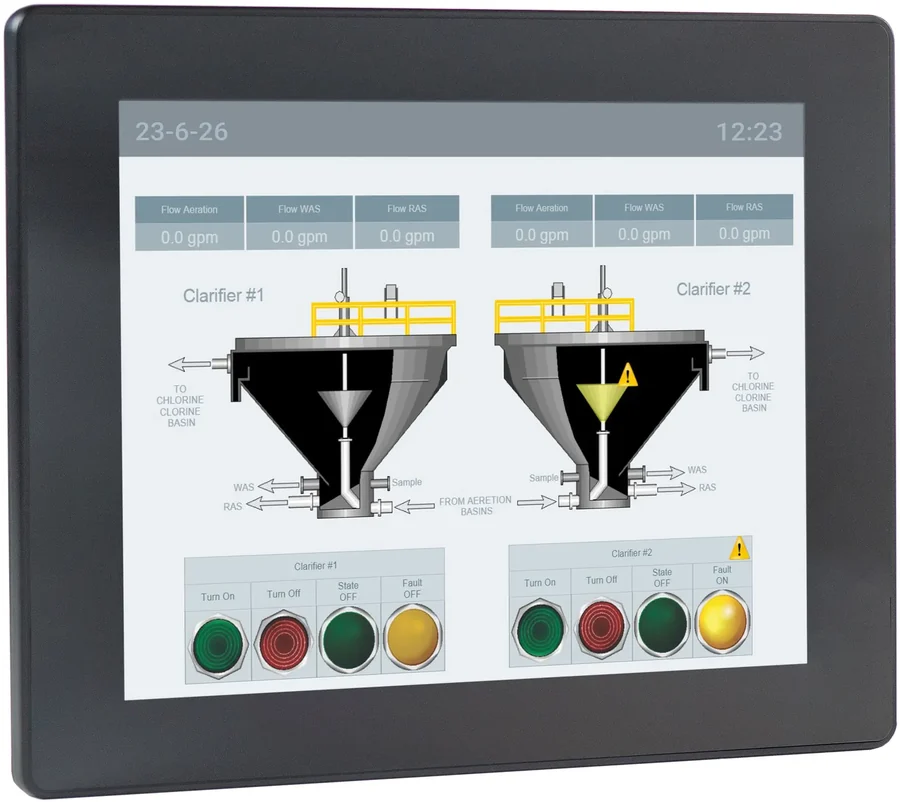

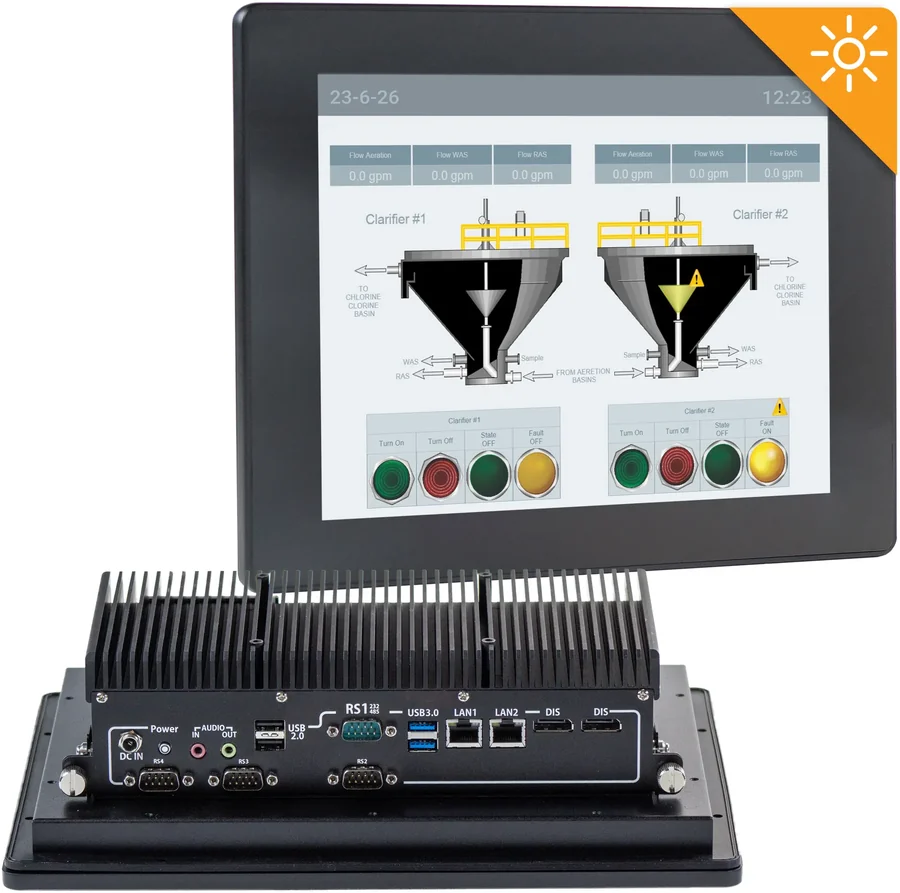

Our customizable PC1412APH is ideal for light intensive environments. With a steel chassisOur customizable PC1412APH is ideal for light intensive environments. With a steel chassis, aluminum heatsink, and the option of panel or VESA mount, this industrial computer is both rugged and durable. With a 1000 nit , high-bright 12.1” capacitive touchscreen, this IPC provides power, performance, and functionality in one package.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- High Brightness – 1000 nits
- High-Resolution Capacitive Touch Screen
- Intel ® Alder Lake-N N97 Quad-Core 3.60 GHz Processor
- Multiple Memory and Storage Options Available
- Windows® or Linux® Operating System
- Optional Wi-Fi Upgrade
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Alder Lake-N N97 Quad-Core 3.60 GHz Processor
- Memory (RAM)
- 1 x DDR5 262-pin SO-DIMM Non-ECC RAM (8, 16)
- System Chipset
- SoC
- Solid State Drive Type
- NVME
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB, 2TB SSD

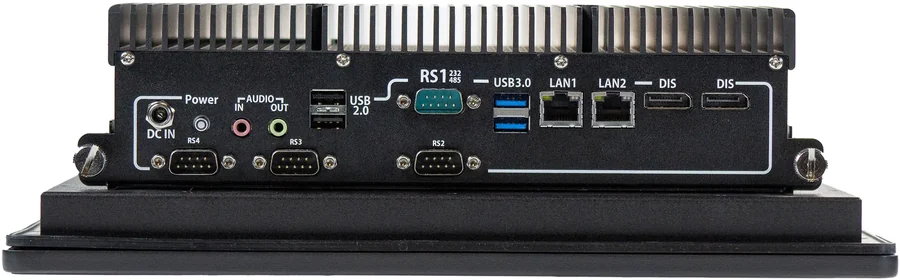

Puertos de E/S
- Power
- DC power input jack, thumbscrew secured.
- Ethernet/LAN
- 2 x GbE RJ-45
- Audio Output
- 1 x 3.5 mm Line-out, 1 x 3.5 mm Mic-in
- Remote Power Switch
- 1 x Momentary Pushbutton with Integrated LED
- Display Output
- 2 x DisplayPort
- Display Port
- Yes
- USB 2.0 Type A
- 2
- USB 3.0 Type A
- 2
- Serial Ports
- 4
- Serial Options
- 1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 3 x RS-232 DE-9P, COM2/COM3/COM4
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support
Pantalla
- Display Size
- 12.1” TFT XGA LCD
- Resolution
- 1024 X 768
- Luminance (cd/m^2)
- 1000
- Contrast Ratio
- 700:1
- Backlight Lifetime (hrs)
- 30,000+
- Colors
- 16.2 M
- View Angle (H° V°)
- 170/170
Pantalla táctil
- Touch Interface
- USB
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 46 W
- Input Voltage
- 9~24 VDC
- Input Current
- 1.92~5.11 A
Mecánico
- Enclosure Material
- Black Steel Chassis, Aluminum Heatsink
- Dimensions WxHxD
- 12.48 x 9.65 x 3.62” [317 x 245 x 92 mm]
- Panel Cutout (inches) [mm]
- 11.54 x 8.70 [293 x 221 ]
- Weight
- ~11.35 lbs [5.15 kg]
- Mounting
- Panel mounting, VESA 100 x 100 mm
Ambiental
- Shock Resistance
- 10G acceleration peak to peak, 11ms duration
- Vibration Resistance
- 5~17 Hz, 0.1” double amplitude peak to peak, 1.5G acceleration peak to peak
- Operating Temperature
- 32~140°F [0~60°C]
- Storage Temperature
- -22~175°F [-30~80°C]
- Relative Humidity
- 10 to 90% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP65
- CE
- Yes
- UL
- No
- ATEX
- No
- RoHS
- Yes
- FCC
- FCC Class B
Datos del producto
- Marca
- Maple Systems
- Número de parte
- PC1412APH
- Línea
- Industrial Panel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
