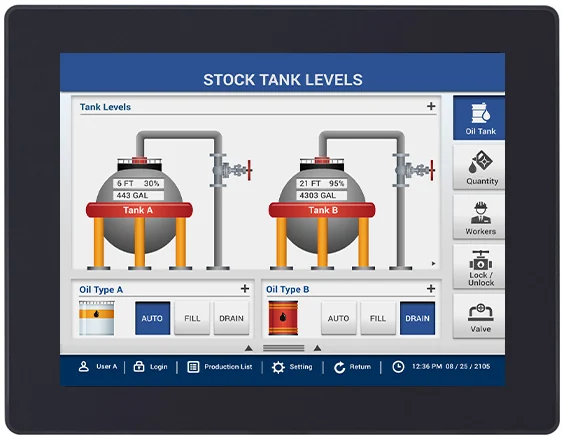

PC1312AP

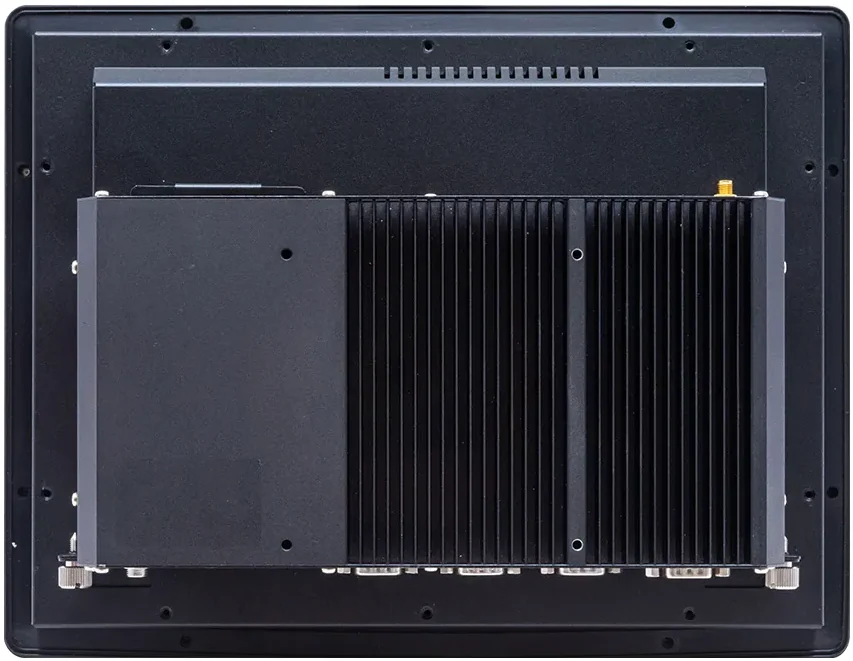

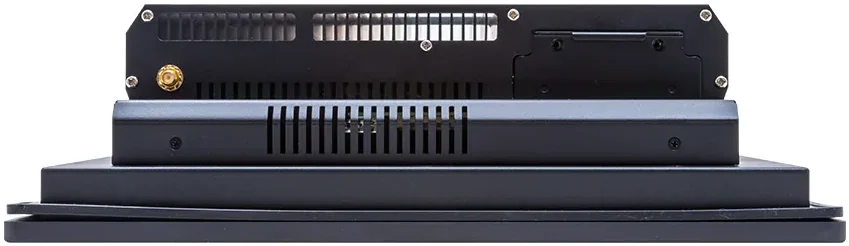

With a steel chassis, aluminum heatsink, and the option of panel or VESA mount, the PC1312With a steel chassis, aluminum heatsink, and the option of panel or VESA mount, the PC1312BP is both rugged and durable. This customizable 12.1” capacitive touchscreen IPC provides power, performance, and functionality in one package. And because this industrial computer runs any 3rd party SCADA software , like AVEVA ® , SIMATIC WinCC, Ignition, & FactoryTalk ® , it is extremely flexible!
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- High-Resolution Capacitive Touch Screen
- Intel ® 7th Gen Dual Core i3, i5, i7 CPU Options
- Multiple Memory and Storage Options Available
- Windows® or Linux® Operating System
- Optional Wi-Fi Upgrade
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® 7th Generation Dual Core™ i3-7100U 2.4GHz CPU / Intel® 7th Generation Dual Core™ i5-7300U 2.6GHz CPU / Intel® 7th Generation Dual Core™ i7-7600U 2.8GHz CPU
- Memory (RAM)
- 2 x DDR4 260-pin SO-DIMM Non-ECC RAM (4, 8, 16, 32 GB)
- System Chipset
- SoC
- Solid State Drive Type
- 1 x 2.5” SATA III, MLC
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB SSD
Puertos de E/S
- Power
- DC power input jack, thumbscrew secured.
- Ethernet/LAN
- 2 x GbE RJ-45
- Audio Output
- 1 x 3.5 mm Line-out, 1 x 3.5 mm Mic-in
- HDMI Port
- Yes
- Remote Power Switch
- 1 x Momentary Pushbutton with Integrated LED
- Display Output
- 1 x HDMI® 1.4a, 1 x DisplayPort 1.2
- Display Port
- Yes
- USB 2.0 Type A
- 2
- USB 3.0 Type A
- 4
- Serial Ports
- 4
- Serial Options
- 1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 3 x RS-232 DE-9P, COM2/COM3/COM4
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support
Pantalla
- Display Size
- 12.1” TFT XGA LCD
- Resolution
- 1024 X 768
- Luminance (cd/m^2)
- 500
- Contrast Ratio
- 700:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.2 M
- View Angle (H° V°)
- 170/170
Pantalla táctil
- Touch Interface
- USB
- Optical Bonding
- No
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 41 W
- Input Voltage
- 9~24 VDC
- Input Current
- 4.56 A Max
Mecánico
- Enclosure Material
- Black Steel Chassis, Aluminum Heatsink
- Dimensions WxHxD
- 12.48 x 9.65 x 3.62” [317 x 245 x 92 mm]
- Panel Cutout (inches) [mm]
- 11.54 x 8.70 [293 x 221 ]
- Weight
- ~ 9.04 lbs [4.1 kg]
- Mounting
- Panel mounting, VESA 100 x 100 mm
Ambiental
- Operating Temperature
- 32~140°F [0~60°C]
- Storage Temperature
- -22~175°F [-30~80°C]
- Relative Humidity
- 10 to 90% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP65
- CE
- Yes
- UL
- No
- ATEX
- No
- RoHS
- Yes
- FCC
- FCC Class B
Datos del producto
- Marca
- Maple Systems
- Número de parte
- PC1312AP
- Línea
- Industrial Panel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
