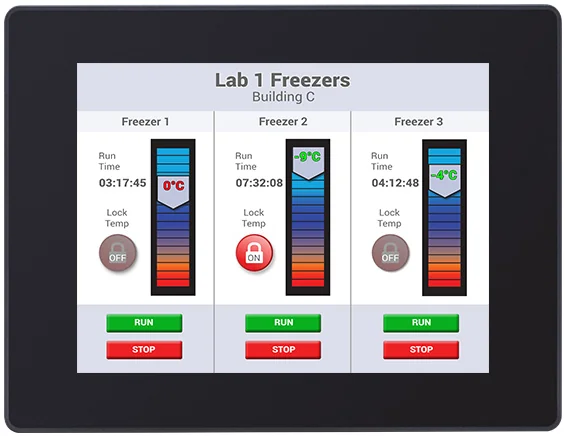

PC1310BPH
Our customizable sunlight readable, 1000 nit , capacitive touchscreen IPCs provide power, Our customizable sunlight readable, 1000 nit , capacitive touchscreen IPCs provide power, performance, and functionality in one package. With a steel chassis, aluminum heatsink, and the option of panel or VESA mount, the PC1310BPH is both rugged and durable. And because this industrial computer runs any 3rd party SCADA software , like SIMATIC WinCC , Ignition , FactoryTalk ® , & AVEVA ® , it is extremely flexible.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- High Brightness -1000 nits
- High-Resolution Capacitive Touch Screen
- Intel ® 7th Gen Dual Core i3, i5, i7 CPU Options
- Multiple Memory and Storage Options Available
- Windows® or Linux® Operating System
- Optional Wi-Fi Upgrade
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® 7th Generation Dual Core™ i3-7100U 2.4GHz CPU / Intel® 7th Generation Dual Core™ i5-7300U 2.6GHz CPU / Intel® 7th Generation Dual Core™ i7-7600U 2.8GHz CPU
- Memory (RAM)
- 2 x DDR4 260-pin SO-DIMM Non-ECC RAM (4, 8, 16, 32 GB)
- System Chipset
- SoC
- Solid State Drive Type
- 1 x 2.5” SATA III, MLC
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB SSD
Puertos de E/S
- Power
- DC power input jack, thumbscrew secured.
- Ethernet/LAN
- 2 x GbE RJ-45
- Audio Output
- 1 x 3.5 mm Line-out, 1 x 3.5 mm Mic-in
- HDMI Port
- Yes
- Remote Power Switch
- 1 x Momentary Pushbutton with Integrated LED
- Display Output
- 1 x HDMI® 1.4a, 1 x DisplayPort 1.2
- Display Port
- Yes
- USB 2.0 Type A
- 2
- USB 3.0 Type A
- 4
- Serial Ports
- 4
- Serial Options
- 1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 3 x RS-232 DE-9P, COM2/COM3/COM4
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support
Pantalla
- Display Size
- 10.4” TFT XGA LCD
- Resolution
- 1024 X 768
- Luminance (cd/m^2)
- 1000
- Contrast Ratio
- 1000:1
- Backlight Lifetime (hrs)
- 30,000+
- Colors
- 16.2 M
- View Angle (H° V°)
- 170/170
Pantalla táctil
- Touch Interface
- USB
- Optical Bonding
- No
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 44 W
- Input Voltage
- 9~24 VDC
- Input Current
- 4.9 A Max
Mecánico
- Enclosure Material
- Black Steel Chassis, Aluminum Heatsink
- Dimensions WxHxD
- 11.57 x 8.90 x 3.62” [294 x 226 x 92 mm]
- Panel Cutout (inches) [mm]
- 10.63 x 7.95 [270 x 202 ]
- Weight
- ~ 8.38 lbs [3.8 kg]
- Mounting
- Panel mounting, VESA 100 x 100 mm
Ambiental
- Operating Temperature
- 32~140°F [0~60°C]
- Storage Temperature
- -22~175°F [-30~80°C]
- Relative Humidity
- 10 to 90% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP65
- CE
- Yes
- UL
- No
- ATEX
- No
- RoHS
- Yes
- FCC
- FCC Class B
Datos del producto
- Marca
- Maple Systems
- Número de parte
- PC1310BPH
- Línea
- High-Brightness PCs · Industrial Panel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
