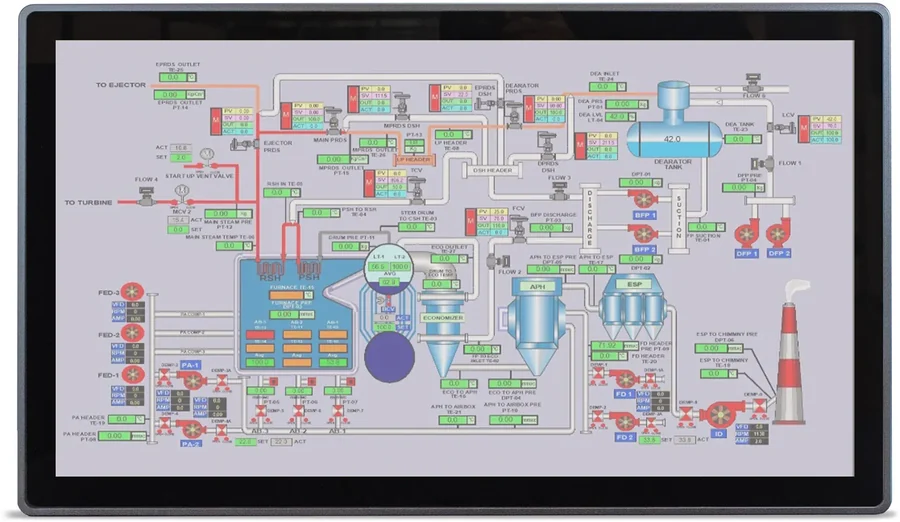

PC1227AP
High-quality construction and industrial grade components makes the PC1227AP a powerful inHigh-quality construction and industrial grade components makes the PC1227AP a powerful industrial computer for your unique application. As part of our powerful Industrial PC Series, this fanless, wide screen 27” capacitive touchscreen IPC comes with either a Linux ® or a Windows ® OS which supports most 3rd party SCADA software like SIMATIC WinCC , Ignition , FactoryTalk ® , & AVEVA ® . VESA or panel mount.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- High-Resolution Capacitive Touch Screen
- Intel Pentium N4200 Quad-Core CPU
- Multiple Memory and Storage Options Available
- Windows® or Linux® Operating System
- Optional Wi-Fi Upgrade
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Pentium™ Apollo Lake™ N4200 Quad-Core 1.1GHz Processor
- Memory (RAM)
- 1 x DDR3L 204-pin SO-DIMM RAM (4, 8 GB)
- System Chipset
- SoC
- Solid State Drive Type
- 1 x 2.5” SATA III, MLC
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB SSD
Puertos de E/S
- Power
- DC power input jack, thumbscrew secured.
- Ethernet/LAN
- 2 x GbE RJ-45
- Audio Output
- 1 x 3.5 mm Line-out, 1 x 3.5 mm Mic-in
- HDMI Port
- Yes
- Remote Power Switch
- 1 x Momentary Pushbutton with Integrated LED
- Display Output
- 1 x HDMI® 1.4a
- USB 2.0 Type A
- 2
- USB 3.0 Type A
- 4
- Serial Ports
- 3
- Serial Options
- 1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 2 x RS-232 DE-9P, COM2/COM3
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support
Pantalla
- Display Size
- 27" TFT XVGA LCD
- Resolution
- 1920 x 1080
- Luminance (cd/m^2)
- 300
- Contrast Ratio
- 1000:1
- Backlight Lifetime (hrs)
- 30,000+
- Colors
- 16.2 M
- View Angle (H° V°)
- 178/178
Pantalla táctil
- Touch Interface
- USB
- Optical Bonding
- No
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 40.8 W
- Input Voltage
- 12~24 VDC
- Input Current
- 1.7~3.4 A
Mecánico
- Enclosure Material
- Black Steel Chassis, Aluminum Heatsink
- Dimensions WxHxD
- 25.57 x 15.25 x 2.82” [649.4 x 387.4 x 71.6 mm]
- Panel Cutout (inches) [mm]
- 24.69 x 14.45" [627 x 367 mm]
- Weight
- ~ 19.25 lbs [8.73 kg]
- Mounting
- Panel mounting, VESA 100 x 100 mm
Ambiental
- Operating Temperature
- 32~122°F [0~50°C]
- Storage Temperature
- -22~175°F [-30~80°C]
- Relative Humidity
- 10 to 90% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP65
- CE
- Yes
- UL
- No
- ATEX
- No
- RoHS
- Yes
- FCC
- FCC Class B
Datos del producto
- Marca
- Maple Systems
- Número de parte
- PC1227AP
- Línea
- Industrial Panel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
