PC1216AP

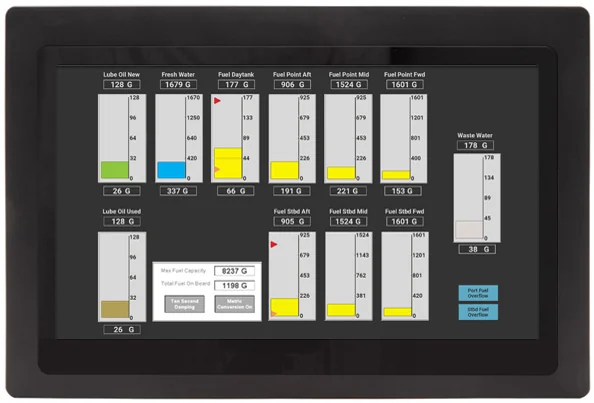

As part of our powerful Industrial PC Series, this fanless, wide screen 15.6” capacitive tAs part of our powerful Industrial PC Series, this fanless, wide screen 15.6” capacitive touchscreen IPC comes with either a Linux ® or a Windows ® OS which supports most 3rd party SCADA software like SIMATIC WinCC , Ignition , FactoryTalk ® , & AVEVA ® . High-quality construction and industrial grade components makes the PC1216AP a powerful industrial computer for your industrial application. VESA or panel mount.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- High-Resolution Capacitive Touch Screen
- Intel Pentium N4200 Quad-Core CPU
- Multiple Memory and Storage Options Available
- Windows® or Linux® Operating System
- Optional Wi-Fi Upgrade
Hoja de datosmaplesystems.comDibujo 2D (CAD)maplesystems.comModelo 3D (CAD)maplesystems.comFicha en maplesystems.commaplesystems.com
Sistema
- CPU
- Intel® Pentium™ Apollo Lake™ N4200 Quad-Core™ 1.1GHz CPU
- Memory (RAM)
- 1 x DDR3-L 204-pin SO-DIMM RAM (4, 8 GB)
- System Chipset
- SoC
- Solid State Drive Type
- 1 x 2.5” SATA III, MLC
- Solid State Drive Capacity
- 64, 128, 256, 512 GB, 1TB SSD
Puertos de E/S
- Power
- DC power input jack, thumbscrew secured.
- Ethernet/LAN
- 2 x GbE RJ-45
- Audio Output
- 1 x 3.5 mm Line-out, 1 x 3.5 mm Mic-in
- HDMI Port
- Yes
- Remote Power Switch
- 1 x Momentary Pushbutton with Integrated LED
- Display Output
- 1 x HDMI® 1.4a
- USB 2.0 Type A
- 2
- USB 3.0 Type A
- 4
- Serial Ports
- 3
- Serial Options
- 1 x RS-232/422/485 DE-9P, COM1 (default RS-232), 2 x RS-232 DE-9P, COM2/COM3
- Expansion Option
- Optional Wi-Fi kit (IEEE802.11ax card and antenna), Bluetooth 5.2 Support
Pantalla
- Display Size
- 15.6” Widescreen TFT FHD LCD
- Resolution
- 1920 x 1080
- Luminance (cd/m^2)
- 450
- Contrast Ratio
- 500:1
- Backlight Lifetime (hrs)
- 50,000+
- Colors
- 16.2 M
- View Angle (H° V°)
- 170/170
Pantalla táctil
- Touch Interface
- USB
- Optical Bonding
- No
- Touch Screen Type
- Projected Capacitive
Eléctrico
- Input Power
- 33 W
- Input Voltage
- 12~24 VDC
- Input Current
- 2.75 A Max
Mecánico
- Enclosure Material
- Black Steel Chassis, Aluminum Heatsink
- Dimensions WxHxD
- 15.75 x 9.84 x 2.56” [400 x 250 x 65 mm]
- Panel Cutout (inches) [mm]
- 14.57 x 8.90 [370 x 226 ]
- Weight
- ~ 9.70 lbs [4.4 kg]
- Mounting
- Panel mounting, VESA 100 x 100 mm
Ambiental
- Operating Temperature
- 32~140°F [0~60°C]
- Storage Temperature
- -22~175°F [-30~80°C]
- Relative Humidity
- 10 to 90% @ 40°C, non-condensing
Certificaciones
- NEMA Rating
- NEMA 4 when panel mounted
- IP Rating
- IP65
- CE
- Yes
- UL
- No
- ATEX
- No
- RoHS
- Yes
- FCC
- FCC Class B
Datos del producto
- Marca
- Maple Systems
- Número de parte
- PC1216AP
- Línea
- Industrial Panel PCs
- Categoría
- PC y monitores industriales
- Precio y entrega
- Por cotización
