PBS115

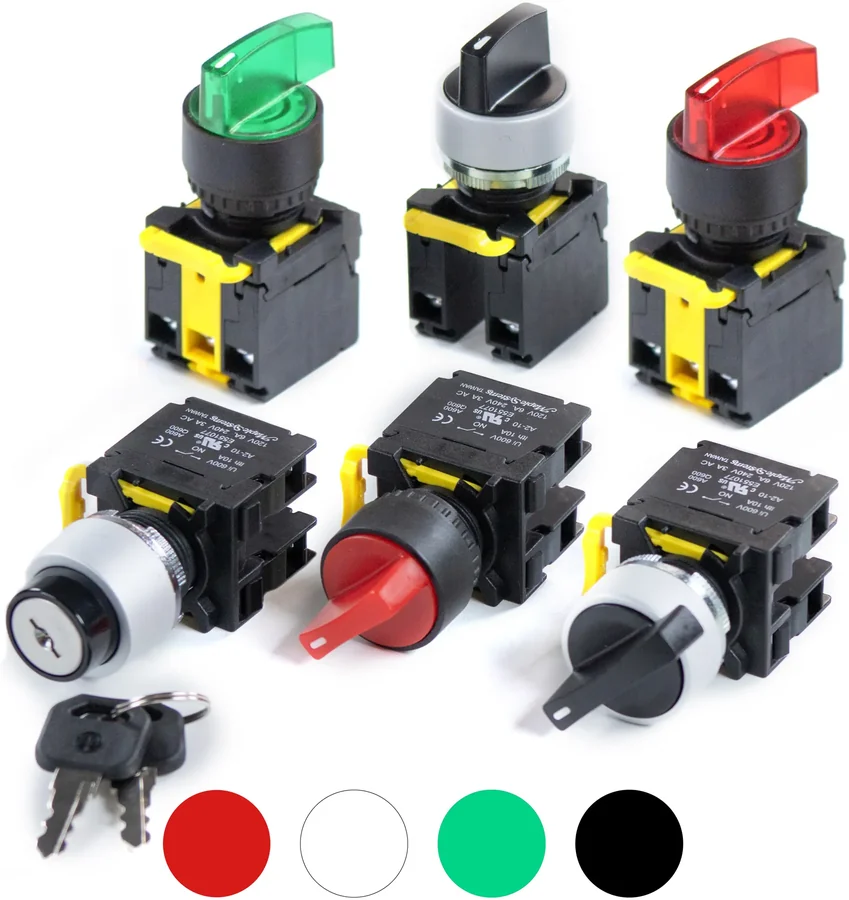

Selector switches provide a clear and dependable way for operators to choose between diffeSelector switches provide a clear and dependable way for operators to choose between different machine functions or operating modes. Available in a range of sizes, configurations, and styles to fill the specific selector switch needs of any application.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Short Knob, Long Knob, Keyed
- CE Certified, IP65 Rated, cURus Listed
- Rated for up to 1 Million Operations
- 22mm Mounting Hole for Panels
Rating
- Thermal Current lth
- 10A 50/60HZ
- Isolation Voltage
- Ui 600V
- Enclosed Thermal Current lth
- 10A
- Short Circuit Current
- 1000A
- AC-15
- 120V 6A, 240V 3A
- AC-12
- 480V 1.5A, 600V 1.2A
- DC-12
- 120V 2.2A, 240V 0.6A, 480V 0.4A
- Ambient Temperature
- -4°F-140°F (-20°C-60°C)
- Contact Resistance
- 50mΩ Max (Initial)
- IP Rating
- IP65
- Certifications
- CE / cURus Learn More Certifications: cURus UL Recognized Component. Component recognized for use in UL Listed equipment / RoHS
Mecánico
- Contacts
- 2x Normally Open
- Mounting Hole
- 22mm
- Actuator Lifespan
- 600,000 Operations
- Contact Block Lifespan
- 1 Million Operations
- Switch Type
- 3 Position / 3 Position, Spring Return
Physical
- Border Material
- Plastic / Metal
- Ring Material
- Plastic / Metal
- Switch Head Color
- Non-Illuminated: Red, Black, Silver (Keyed) / Illuminated: Red, Green
- Switch Style
- Short Knob / Long Knob / Keyed
- Bulb Type
- LED
- Lamp Voltage
- 24V
Datos del producto
- Marca
- Maple Systems
- Número de parte
- PBS115
- Línea
- Pushbuttons & Switches
- Categoría
- Botones y señalización
- Precio y entrega
- Por cotización
