PBS113

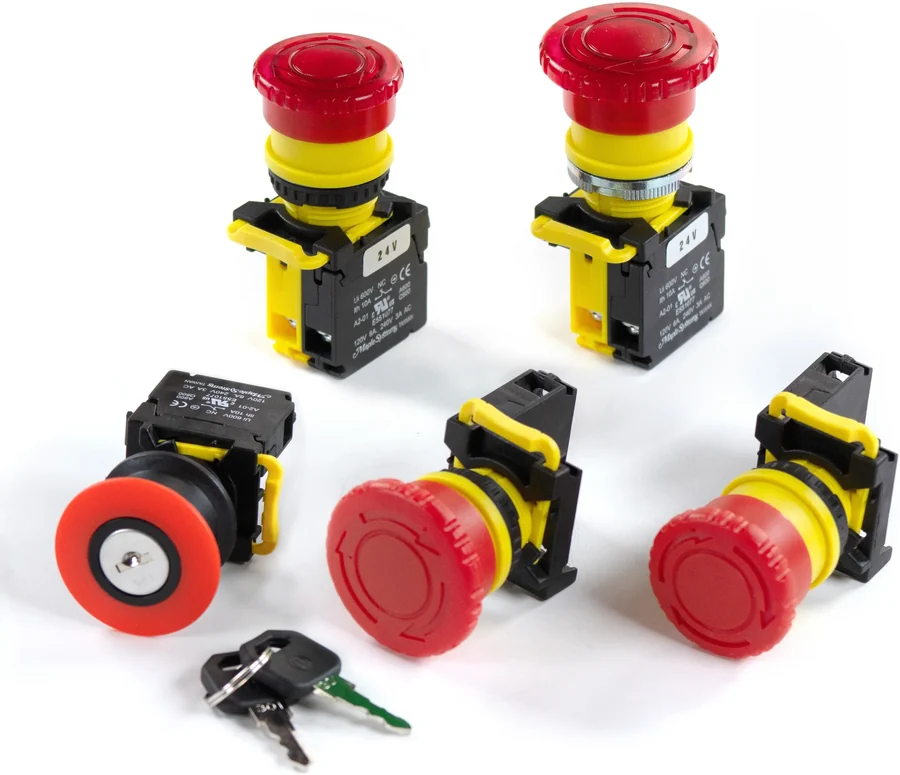

Latching E-Stop push buttons are designed to quickly and reliably stop machinery and keep Latching E-Stop push buttons are designed to quickly and reliably stop machinery and keep it safely shut down until manually reset. Available in multiple sizes and configurations, illuminated and non-illuminated, to fill the specific need of any application.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- 35mm and 40mm Knurled Mushroom Head options
- CE Certified, IP65 Rated, cURus Listed
- Rated for over 1 Million Operations
- 22mm Mounting Hole for Panels
Rating
- Thermal Current lth
- 10A 50/60HZ
- Isolation Voltage
- Ui 600V
- Enclosed Thermal Current lth
- 10A
- Short Circuit Current
- 1000A
- AC-15
- 120V 6A, 240V 3A
- AC-12
- 480V 1.5A, 600V 1.2A
- DC-12
- 120V 2.2A, 240V 0.6A, 480V 0.4A
- Ambient Temperature
- -4°F-140°F (-20°C-60°C)
- Contact Resistance
- 50mΩ Max (Initial)
- IP Rating
- IP65
- Certifications
- CE / cURus Learn More Certifications: cURus UL Recognized Component. Component recognized for use in UL Listed equipment / RoHS
Mecánico
- Button Type
- Latching E-Stop
- Contacts
- 1x Normally Closed Learn More Contacts: 1x Normally Closed *Additional contacts can be purchased separately. *One additional contact can be added to pre-assembly.
- Mounting Hole
- 22mm
- Actuator Lifespan
- 1 Million Operations
- Contact Block Lifespan
- 1 Million Operations
Physical
- Button Head Color
- Red
- Button Style
- 40mm Knurled Mushroom Head / 35mm Knurled Mushroom Head / Mushroom Key Lock
- Border Material
- Plastic / Metal
- Ring Material
- Plastic / Metal
- Bulb Type
- LED
- Lamp Voltage
- 24V
Datos del producto
- Marca
- Maple Systems
- Número de parte
- PBS113
- Línea
- Pushbuttons & Switches
- Categoría
- Botones y señalización
- Precio y entrega
- Por cotización
