PBS112

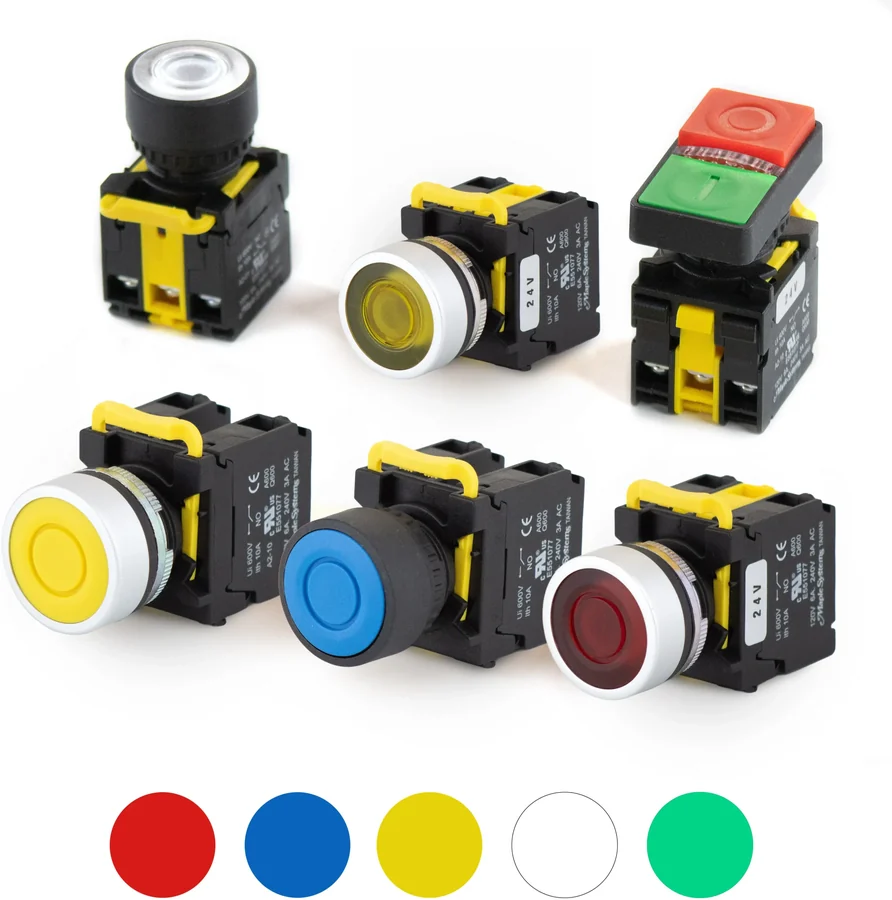

Maple Systems PBS112 latching pushbutton switches hold their state after a single press: pMaple Systems PBS112 latching pushbutton switches hold their state after a single press: push once to close the circuit and keep it on, push again to release it. This page is for control panel designers, OEM engineers, and maintenance technicians choosing between latching and momentary push button switches.
CantidadPrecio y entrega: Por cotización
¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.
- Actuator styles: Flat Head, Guard Ring, Mushroom Head, Double (flat/raised)
- Mounting: 22mm panel mount hole
- Life: Rated for over 1 million operations
- Sealing: IP65-rated for dust and water spray resistance
- Approvals: CE, RoHS, cURus Listed
- Contacts: Compatible with NO and NC contact blocks
Rating
- Thermal Current lth
- 10A 50/60HZ
- Isolation Voltage
- Ui 600V
- Enclosed Thermal Current lth
- 10A
- Short Circuit Current
- 1000A
- AC-15
- 120V 6A, 240V 3A
- AC-12
- 480V 1.5A, 600V 1.2A
- DC-12
- 120V 2.2A, 240V 0.6A, 480V 0.4A
- Ambient Temperature
- -4°F-140°F (-20°C-60°C)
- Contact Resistance
- 50mΩ Max (Initial)
- IP Rating
- IP65
- Certifications
- CE / cURus Learn More Certifications: cURus UL Recognized Component. Component recognized for use in UL Listed equipment / RoHS
Mecánico
- Button Type
- Toggle
- Contacts
- 1x Normally Closed & 1x Normally Open Contact (1 each) Learn More Contacts: 1x Normally Closed & 1x Normally Open Contact (1 each) *Additional contacts can be purchased separately. *One additional contact can be added to pre-assembly.
- Mounting Hole
- 22mm
- Actuator Lifespan
- 1 Million Operations
- Contact Block Lifespan
- 1 Million Operations
Physical
- Button Head Color
- Red, Green, Yellow, Blue, White / Red/Green (Combo)
- Button Style
- Flat Head / Double Touch, Raised Buttons / Double Touch, Flat Buttons
- Border Material
- Plastic / Metal
- Ring Material
- Plastic / Metal
- Bulb Type
- LED
- Lamp Voltage
- 24V
Datos del producto
- Marca
- Maple Systems
- Número de parte
- PBS112
- Línea
- Pushbuttons & Switches
- Categoría
- Botones y señalización
