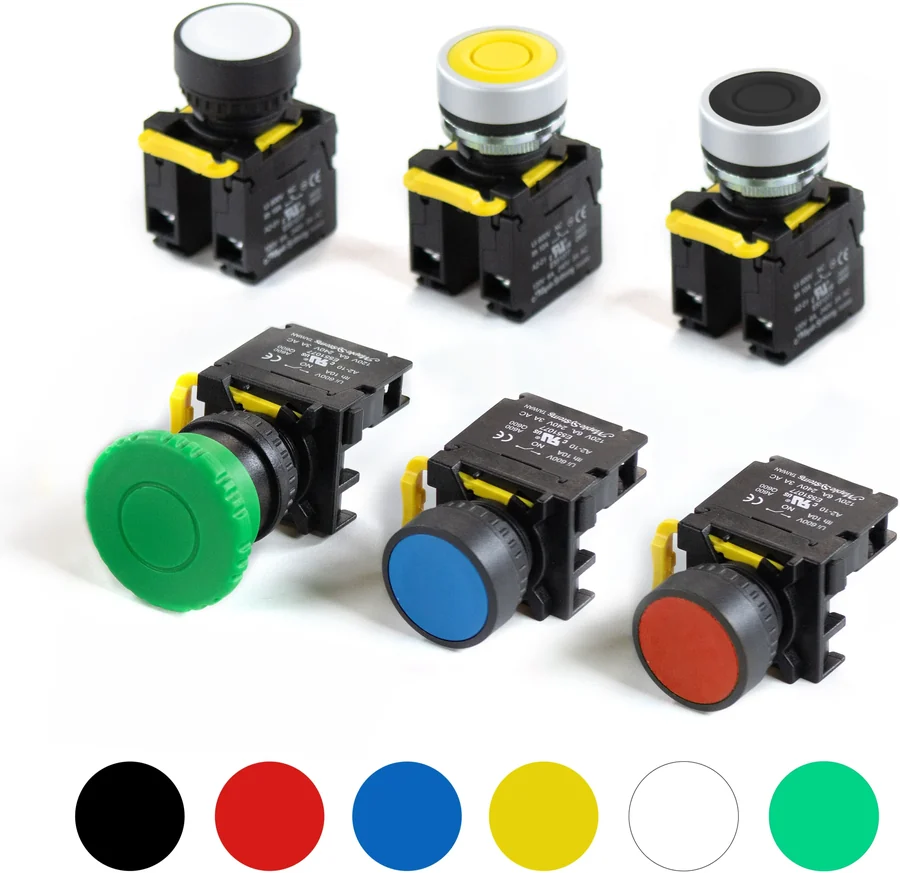

PBS111

Name: PBS111 Momentary pushbuttons act as a simple switch mechanism for controlling a machine or a proc
Brand: Maple Systems
SKU: PBS111

Momentary pushbuttons act as a simple switch mechanism for controlling a machine or a procMomentary pushbuttons act as a simple switch mechanism for controlling a machine or a process. They are available in a range of sizes, configurations, and styles to fill the specific pushbutton needs of any application.

CantidadPrecio y entrega: Por cotización

¿Necesitas un equivalente u otra presentación? Llámanos al +52 (868) 817-7915 o escribe a ventas@gugo.com.mx.

Keylock, Flat Head, Guard Ring, Mushroom Head
CE Certified, IP65 Rated, cURus Listed
Rated for over 1 Million Operations
22mm Mounting Hole for Panels

Hoja de datosmaplesystems.com Ficha en maplesystems.commaplesystems.com

Rating

Thermal Current lth: 10A 50/60HZ
Isolation Voltage: Ui 600V
Enclosed Thermal Current lth: 10A
Short Circuit Current: 1000A
AC-15: 120V 6A, 240V 3A
AC-12: 480V 1.5A, 600V 1.2A
DC-12: 120V 2.2A, 240V 0.6A, 480V 0.4A
Ambient Temperature: -4°F-140°F (-20°C-60°C)
Contact Resistance: 50mΩ Max (Initial)
IP Rating: IP65
Certifications: CE / cURus Learn More Certifications: cURus UL Recognized Component. Component recognized for use in UL Listed equipment / RoHS

Mecánico

Button Type: Momentary
Contacts: 1x Normally Closed (Red Head) or 1x Normally Open Contact (All Other Colors) Learn More Contacts: 1x Normally Closed (Red Head) or 1x Normally Open Contact (All Other Colors) *Additional contacts can be purchased separately. *One additional contact can be added to pre-assembly.
Mounting Hole: 22mm
Actuator Lifespan: 1 Million Operations
Contact Block Lifespan: 1 Million Operations

Physical

Button Head Color: Red, Green, Yellow, Blue, Black, White
Button Style: Flat Head / 40mm Knurled Mushroom Head / 35mm Knurled Mushroom Head / Guard Ring Button Head
Border Material: Plastic / Metal
Ring Material: Plastic / Metal
Bulb Type: LED
Lamp Voltage: 24V

Datos del producto

Marca: Maple Systems
Número de parte: PBS111
Línea: Pushbuttons & Switches
Categoría: Botones y señalización
Precio y entrega: Por cotización
